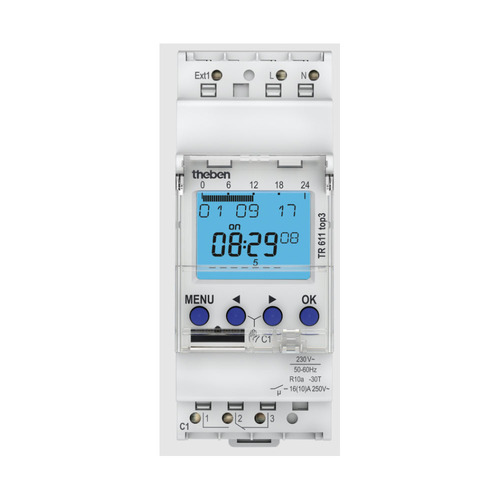

Learn more by watching our THEBEN TR611TOP3 | Digital time switch 1 channel | 7day | Program by App | TOP3 video.
If you are controlling a motor or element, you must use a contactor otherwise you may burn the timer out.
Features
You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.
(TR611TOP3)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Operating voltage | 230 V AC |
Frequency | 50 – 60 Hz |
Width | 2 modules |
Installation type | DIN rail |
Type of contact | Changeover contact |
Switching output | Phase-independent |
Opening width | < 3 mm |
Program | Weekly program |
Program functions | ON-OFF, Pulse, Cycle |
Number of channels | 1 |
External inputs | 1 |
Number of memory locations | 84 |
Power reserve | 10 years |
Switching capacity at 250 V AC, cos φ = 1 | 16 A |
Switching capacity at 250 V AC, cos φ = 0,6 | 10 A |
Incandescent/halogen lamp load | 2600 W |
Energy saving lamps | 1100 W |
LED lamp < 2 W | 50 W |
LED lamp 2-8 W | 600 W |
LED lamp > 8 W | 600 W |
Inrush current | max. 800 A / 200 µs |
Switching capacity min. | ca. 10 mA |
Shortest switching times | 1 s |
Time accuracy at 25 °C | typical ± 0,25 s/day (quartz) |
Time basis | Quartz |
Stand-by consumption | ~0.4 W |
Type of connection | DuoFix spring terminals |
Display | LCD |
Keyboards | 4 touch buttons |
Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
Type of protection | IP 20 |
Protection class | II according to EN 60 730-1 |
Ambient temperature | -30°C ... 60°C |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Theben |
SKU | TR611TOP3 |
Barcode # | 4003468610312 |
Shipping Weight | 0.1420kg |
Shipping Width | 0.103m |
Shipping Height | 0.046m |
Shipping Length | 0.076m |
Shipping Cubic | 0.000360000m3 |
TYPE | VALUE |
---|---|
Type | Timer |
Brand | Theben |
Rated Current (A) | 16(10) |
Height (mm) | 69.2 |
Width (mm) | 35.8 |
Length (mm) | 90.1 |
Protection | IP20 |
Mounting | Din Rail |
Battery Backup | 10 Years |
Number of Modules | 2 |
Voltage (V) | 240 |
Programming Type | Digital & Memory Card |
Program Time | 24h/7d - 365d |
