        Learn more by watching our Terasaki Din-Safe DSRCBH1630A | 16 Amp RCBO 1P+N 10kA 30mA video.

        Description

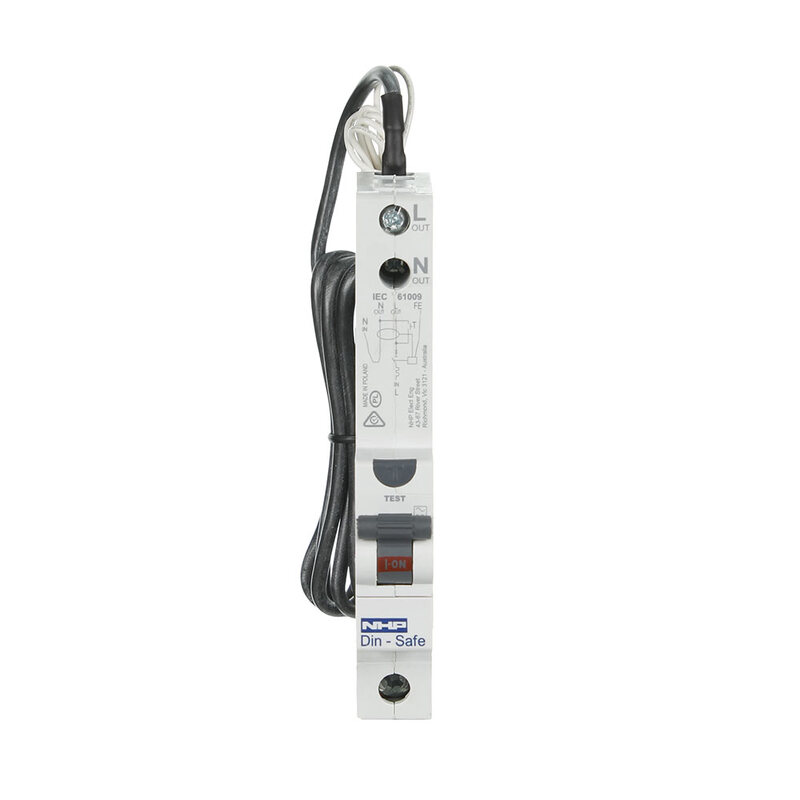

        Terasaki Din-Safe DSRCBH1630A | 16 Amp RCBO 1P+N 10kA 30mA

        The Din-Safe RCBO is a Residual Current Breaker with Overcurrent Protection suited to the Din-T chassis in NHP panelboards.
        The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
        The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
        The Terasaki 16 Amp Single Pole Rcbo also saves time and money on installation as It only takes up the space of 1 module in a switchboard or subboard.

        Features:

        • Residual current breaker with overcurrent protection (RCBO)
        • Product brand: Terasaki Din - Safe
        • Poles description: 1P + N
        • Number of modules: 1
        • Number of protected poles: 1
        • [In] rated current: 16 A
        • Network type: AC
        • Trip unit technology: Thermal-magnetic
        • Curve: C
        • Earth-leakage sensitivity: 30 mA
        • Earth-leakage protection class: Type A
        • Breaking capacity: 10 kA
        • Narrow module design allows for more RCDs/MCBs to be installed in the one enclosure
        • Two pole safety feature allows switching of both active and neutral contacts
        • Trip free locking device (lockable in 'ON' or 'OFF' position)
        • Compatible with Terasaki switchboards and switchboard accessories
        • AS/NZS 61009 compliance

        (DSRCBH1630A)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Terasaki
        SKU DSRCBH1630A
        Barcode # 5413656072768
        Package Weight 0.235kg
        Package Width 0.037m
        Package Height 0.076m
        Package Length 0.158m
        View Datasheet
        TYPE VALUE
        Type Circuit Protection
        Brand Terasaki by NHP
        Range Din - Safe
        Rated Current (A) 16
        Height (mm) 125
        Width (mm) 18
        Depth (mm) 70
        Standards AS/NZS 61009
        Mounting Din Rail
        Voltage (V) 240
        Number of Poles 1P+N
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 10kA
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
        Curve C
