        Learn more by watching our Theben OBELISKtop3 | Bluetooth Dongle for transfer of switching programs between App to the time switch video.

        Description

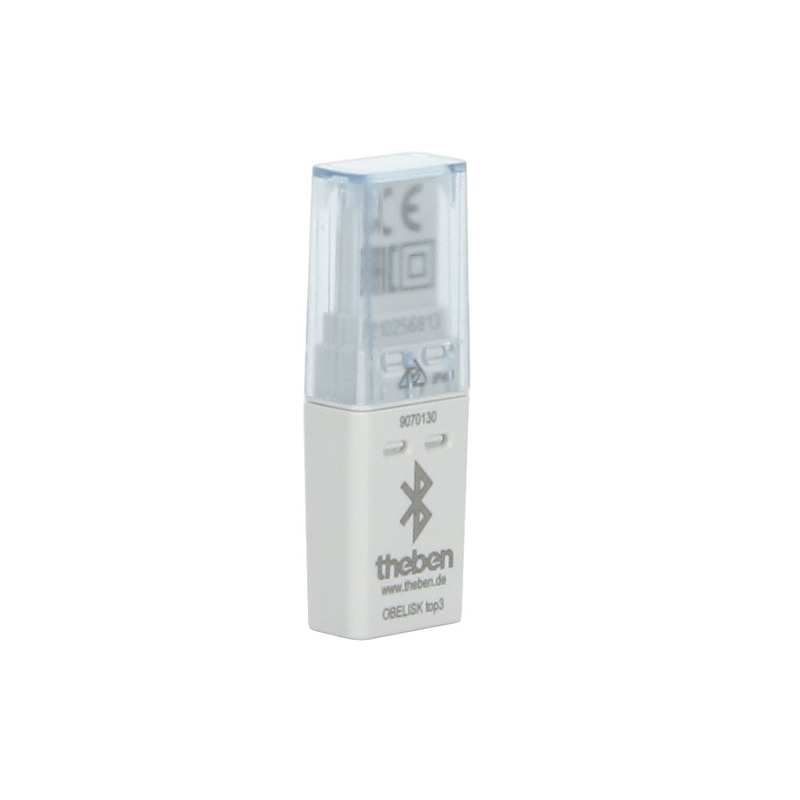

        Theben OBELISKtop3 | Bluetooth Dongle for transfer of switching programs between App to the time switch

        Bluetooth low-energy dongle for the transfer of switching programs and direct commands from the app to the time switch

        • Plug-in via the standard top3 OBELISK interface
        • Maximum manipulation security, Time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
        • Low consumption on standby compared with permanently installed Bluetooth components
        • Built-in memory function (EEPROM), memory function can also be used in the PC programming set
        • Can also be used as a memory card for all top3 and top2 devices in mains operation

        A dongle is required for Bluetooth security. This component achieves two primary concerns:

        • Reduced Cost (removing component from the product)
        • Security (eliminating the chance of connection failure and corruption during operation)

        You only need one dongle and will work with any Theben Bluetooth Top 3 product:

        • TR611top3
        • TR610top3
        • LUNA111top3AL
        • LUNA111top3EL

        (OBELISKtop3)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Features

        • Operating voltage: 3.3 (5.0) V =
        • Operating voltage (tolerance): +/- 10%
        • Ambient temperature: -30 ... +55 ° C
        • Storage temperature: -30 ... +70 ° C
        • Device standard: EN 60730 and EN 60669
        • Protection class: IP 40

        Radio technical information

        • Transmission frequency: 2402 ... 2480 MHz
        • Transmission power: 2.9 mW
        • Range: min. 15 m
        • Field strength display: no
        • Radio standard: Bluetooth 4.2
        • Transceiver type: bidirectional

        Made in Germany

        Watch how easy it is to use the dongle to program the device - see video below

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Theben
        SKU OBELISKtop3
        Barcode # 4003468902639
        Package Weight 0.025kg
        Package Width 0.030m
        Package Height 0.080m
        Package Length 0.104m
        TYPE VALUE
        Type Timer
        Brand Theben
        Colour White
        Built-in memory function Yes
