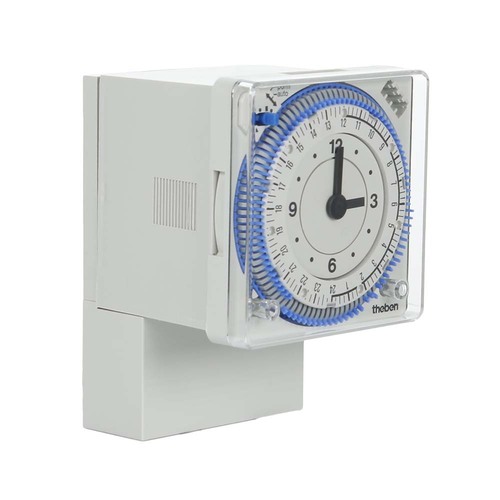

Learn more by watching our Theben SUL189s | 24 hour timer with plug-in base, power reserve video.
If controlling a motor or element, you must use a contactor otherwise you may burn the timer out.
Features
You may need to install a contactor so you do not burn out the timer especially if you are controlling motors or elements.
(SUL189s)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Operating voltage | 230 V AC |
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Installation type | Front panel installation/wall installation |
| Type of connection | Screw terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 3 days full power reserve approx. 3 days after connection to operating voltage |
| Switching capacity at 250 V AC, cos φ = 1 | 10 A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 2 A |
| Shortest switching times | 15 min |
| Programmable every | 15 min |
| Time accuracy at 25 °C | ≤ ± 1 s/day (quartz) |
| Type of contact | Changeover contact |
| Switching output | Potential-free and phase-independent |
| Number of switching segments | 96 |
| Stand-by consumption | 0.5 W |
| Test approval | EMV |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -10°C ... 55°C |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Theben |
| SKU | SUL189s |
| Barcode # | 4003468180631 |
| Shipping Weight | 0.2260kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.080m |
| Shipping Length | 0.105m |
| Shipping Cubic | 0.000672000m3 |
| TYPE | VALUE |
|---|---|
| Type | Timer |
| Brand | Theben |
| Rated Current (A) | 10 |
| Height (mm) | 80 |
| Width (mm) | 80 |
| Length (mm) | 105 |
| Protection | IP20 |
| Mounting | Din Rail |
| Battery Backup | 3 Days |
| Number of Modules | 3 |
| Voltage (V) | 240 |
| Programming Type | Analog |
| Program Time | 24 Hours |
