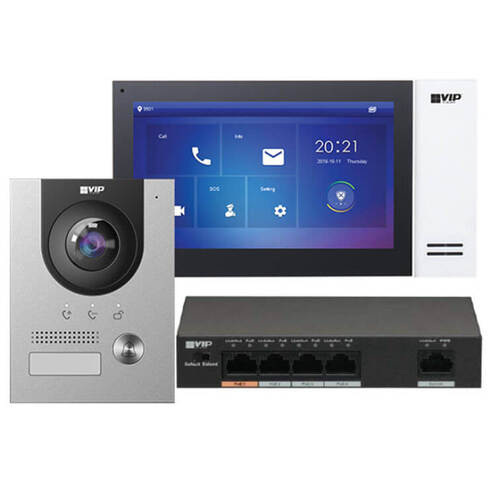

VIP Vision INTIPRKITGP | Residential IP Intercom Kit 'G Series' White

The Residential G IP Video Intercom series consists of stylish PoE door stations and indoor monitors, ideal for homes
and single-premises buildings. Experience modern intercom features such as video & two-way talk and remote access,
all captured with clarity in wide angle full HD 1080p video.

• Door station cameras ranging up to 2.0 megapixel
• Door stations call all connected indoor monitors
• Connect door stations & monitors via Ethernet
• Intuitive interface, for ease-of-use for any visitors
• Interface with most electronic door strikes & sensors
• Elegant black or white gloss intercom monitors
• Slim profile 7" touchscreen indoor intercom monitor
• Receive visitor notifications, leave audio & video
messages, remote view, remote unlock and 2-way
talk via iOS & Android devices

The INTIPMONGW is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk with an apartment door station, featuring live-view of the door station camera.

Product features:
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Alarm system integration
• 7" TFT capacitive touch screen
• Power over Ethernet (12VDC, 802.3af)
• MicroSD storage (up to 32GB)

The INTIPRDSG is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.

Product features:
• 1/2.8’’ 2.0MP 1.95mm lens camera with 160° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 12VDC or Power over Ethernet (802.3af)
• Flush and surface mount installation options

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & amp; the included waterproof rubber seals are used when installing the screws.

*2-Wire connection requires the INTIPPOE2W. Note it is one device per terminal (6 total).

The VSPOE-SWA4 is a desktop mount, fast Hi-PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Product features:
• 4 x PoE+ device ports with 10/100Mbps per port
• 1 x Hi-PoE device port with 10/100Mbps per port
• Total PoE power load up to 60W
• Extend mode takes Ethernet cable runs up to 250m
• Unmanaged switch for plug & play applications
• Desktop mount for home and SOHO use
• Professional appearance full metal enclosure

TYPE

VALUE

Type

IP Intercoms

Brand

VIP Vision

Range

Residential Series

Height (mm)

119.6

Width (mm)

221.5

Depth (mm)

21.5

Mounting

Surface Mount

Installation Area

Indoor

Housing Colour

White

Display Size

7 Inches

Ethernet / Network

10M/100Mbps adaptive / TCP/IP

Main Processor

Embedded Microprocessor

Audio/ 2-Way Talk

Omni-directional Microphone/ Embedded 1.5W Loudspeaker

Alarm Support

Yes; 6 Input channels / 1 output channel / 1 x RJ-45

Internal Capacity

MicroSD Slot up to 32GB

Power Input

12VDC, PoE (802.3af) / Standby < 4W / Operation <6W
