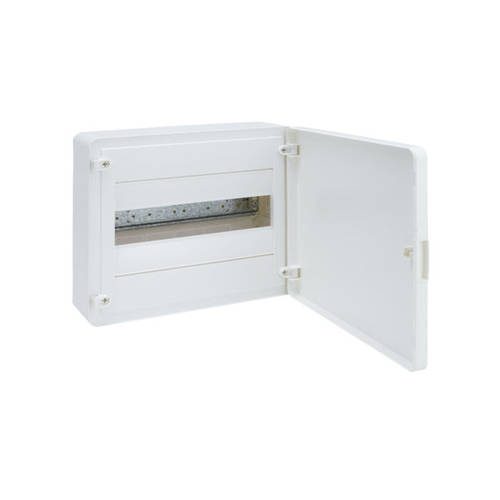

The HAGER VS112PT is a versatile, highly functional surface-mounted distribution board designed for managing your electrical circuits efficiently and safely. This compact unit features 1 row, 12-module design and is perfect for systems requiring devices up to 70mm in installation depth.
This board boasts a robust, opaque door, adding an extra layer of protection to the components inside. For your convenience, the door can be fitted on either the right or the left side, allowing you to adapt to your specific installation environment. This door has an optional lock and keys, offering enhanced security and peace of mind. With the ability to open up to 180º, it provides easy access to the interior for hassle-free maintenance or adjustments.
The wall box and cover have been thoughtfully designed to be symmetrical, incorporating a removable cable entry slider. This allows for comfortable cable entries for both cable and conduit, simplifying the installation process.
The HAGER VS112PT comes packed with VS components, including earth and neutral terminals, pole fillers, a patented marking system, cable management clips, and a transport protection film to ensure the product reaches you in optimal condition. Some references also come supplied with a busbar, furthering the product's functionality.
As for technical data, the HAGER VS112PT holds an IP rating of IP30 without the door and IP40 with the door fitted, and an IK07 impact rating. This shows its resilience against foreign bodies and water, promising a reliable performance in various environments. It belongs to Isolation Class II, indicating its high level of safety.
The unit is finished in a clean white colour (RAL 9010), fitting seamlessly into various settings. It is rated for devices up to 63A in current and offers a rated insulation voltage of 400V AC/50Hz. This means it can accommodate a wide range of electrical devices, providing you with the versatility you need in your electrical system.
The HAGER VS112PT | GOLF 12 Pole Surface Mount Distribution Board IP40 is a reliable, functional, and versatile distribution solution. Its thoughtful design and comprehensive features make it the go-to choice for all electrical circuit management needs.
VS Components include:
Technical data:
(VS112PT)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | VS112PT |
| Barcode # | 3250616594388 |
| Shipping Weight | 1.4070kg |
| Shipping Width | 0.265m |
| Shipping Height | 0.105m |
| Shipping Length | 0.290m |
| Shipping Cubic | 0.008069000m3 |
| TYPE | VALUE |
|---|---|
| Type | Enclosure |
| Brand | Hager |
| Range | Golf |
| Height (mm) | 251.5 |
| Width (mm) | 281.5 |
| Depth (mm) | 105 |
| Number of Poles | 12 |
| Number of Horizontal Rows | 1 |
