Learn more by watching our Wago 221-413 | 4mm² 3-Way Compact Splicing Connector | Jar of 50 video.
Additional related video.
Additional related video.

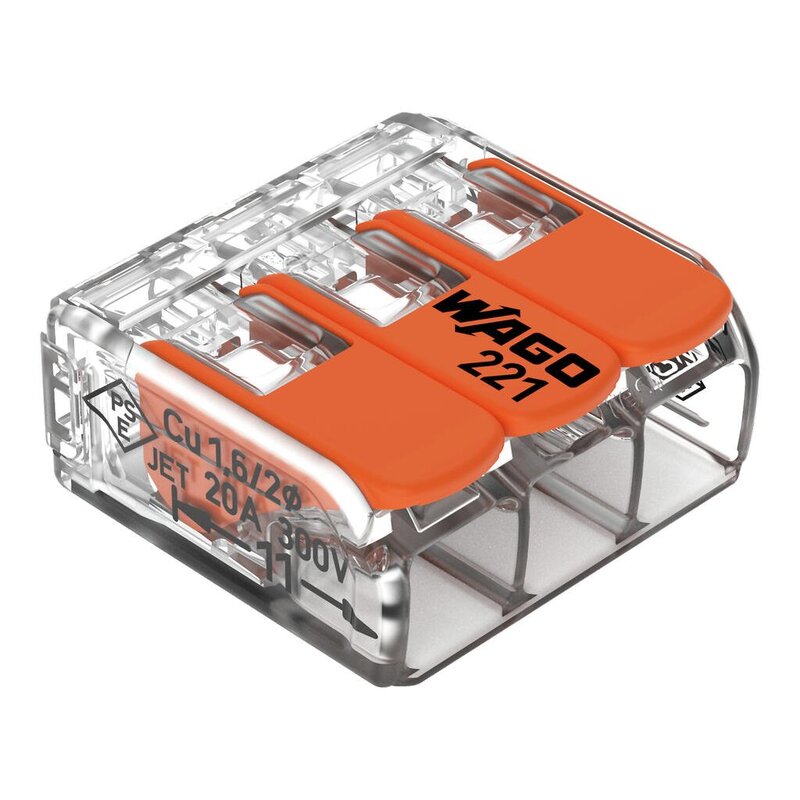

The Wago 221-413 4mm² 3-Way Compact Splicing Connector is a quick and innovative solution for making safe and reliable electrical connections. This connector is designed to easily handle solid, stranded, and fine-stranded conductors, accommodating wire sizes from 0.14 to 4mm². Featuring Wago's lever mechanism, installation is straightforward: pull the lever up, insert the conductor, and push the lever back down—no tools required. The connectors are packaged in a convenient jar of 50, making them ideal for electricians working on various projects.
The compact design makes the 221 Series connectors perfect for tight spaces while providing vibration-proof and maintenance-free connections. These connectors can also handle devices with higher power consumption and are suitable for safely installing long cable runs with larger conductor cross sections. The transparent housing allows for easy inspection of the connections, while the CAGE CLAMP® technology ensures a secure hold on the conductors.
Q: What conductor sizes can the Wago 221-413 handle?
A: It can handle solid, stranded, and fine-stranded conductors from 0.14 to 4mm².
Q: How do I use the lever mechanism?
A: Simply pull the lever up, insert the conductor, and push the lever back down—it's that easy.
Q: Is this connector suitable for high-power devices?
A: Yes, it's designed for quick installation of devices with higher power consumption and long cable runs with larger conductor cross sections.
(221-413)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Conductor Size | 4mm |
| Number of Conductors | 3 |
| Ratings per | EN 60664 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Nominal voltage | 450 V |
| Rated surge voltage | 4 kV |
| Rated current | 32 A |
| Width | 18.8 mm / 0.74 inches |
| Height | 8.4 mm / 0.331 inches |
| Depth | 18.6 mm / 0.732 inches |
| Ambient temperature (operation) | +85 °C |
| Continuous operating temperature | 105 °C |
| Weight | 2.5g |
| Colour | Transparent |
| Actuator Colour | Orange |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 221-413 |
| Barcode # | 781360993576 |
| Shipping Weight | 0.1650kg |
| Shipping Width | 0.065m |
| Shipping Height | 0.120m |
| Shipping Length | 0.065m |
| Shipping Cubic | 0.000507000m3 |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Colour | Transparent |
| Depth | 18.8 mm / 0.732 inches |
| Nominal Voltage | 450V |
| Width | 18.8 mm / 0.74 inches |
| Height | 8.6 mm / 0.327 inches |
| Weight | 2.5g |
| Rated Current | 32A |
| Actuator Colour | Orange |
| Connection points | 3 |
| Conductors From | 0.14 to 4 mm² |
