Learn more by watching our Wago 221-415 | 4mm² 5-Way Compact Splicing Connector | Jar of 25 video.
Additional related video.
Additional related video.

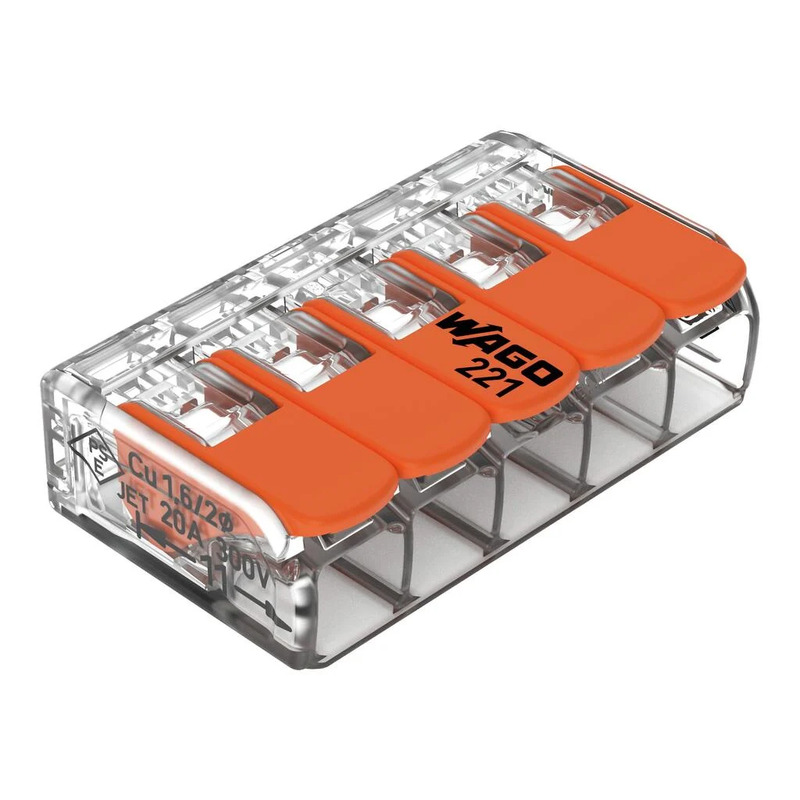

The Wago 221-415 4mm² 5-Way Compact Splicing Connector offers an efficient and innovative solution for making secure electrical connections. Designed for electricians, this connector accommodates solid, stranded, and fine-stranded conductors from 0.14 to 4mm² with ease. Wago’s signature lever mechanism simplifies the installation process—just pull the lever up, insert the conductor, and push the lever back down for a quick, tool-free connection. Packaged in a jar of 25, these connectors are perfect for both large and small-scale projects.
With a compact design, the 221-415 connectors fit seamlessly into tight spaces while providing vibration-proof and maintenance-free connections. These connectors are ideal for applications requiring high power consumption and for safely managing long cable runs with larger conductor cross sections. The transparent housing allows for easy inspection of the connections, while the CAGE CLAMP® technology ensures a secure hold on the conductors.
Q: What conductor types can the Wago 221-415 connect?
A: It can connect solid, stranded, and fine-stranded conductors from 0.14 to 4mm².
Q: How does the lever mechanism work?
A: Pull the lever up, insert the conductor, and push the lever back down for a secure, tool-free connection.
Q: What is the maximum voltage and current rating for this connector?
A: The Wago 221-415 is rated for a nominal voltage of 450V and a rated current of 32A.
(221-415)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 221-415 |
| Barcode # | 781360993583 |
| Shipping Weight | 0.1400kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.130m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000637000m3 |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Colour | Transparent |
| Depth | 18.8 mm / 0.732 inches |
| Nominal Voltage | 450V |
| Width | 30 mm / 1.181 inches |
| Height | 8.6 mm / 0.327 inches |
| Rated Current | 32A |
| Actuator Colour | Orange |
| Connection points | 5 |
| Conductors From | 0.14 to 4 mm² |
