Learn more by watching our Wago 221-612 | 6mm² 2-Way Compact Splicing Connectors | Jar of 50 video.
Additional related video.
Additional related video.

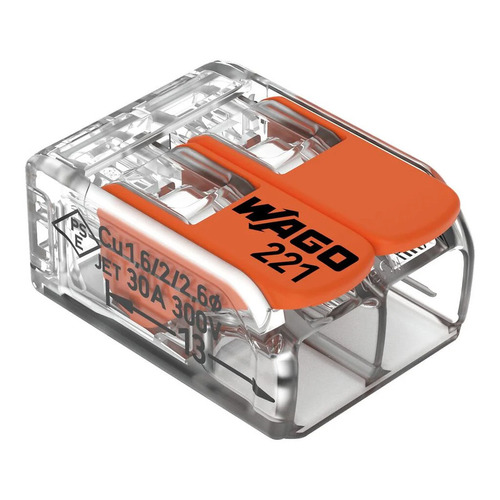

The Wago 221-612 6mm² 2-Way Compact Splicing Connectors provide an innovative and efficient solution for connecting solid, stranded, and fine-stranded conductors. Ideal for electricians, these connectors allow for quick, tool-free installation—pull the lever up, insert the conductor, and push the lever back down. This jar of 50 connectors is perfect for various electrical projects, from installing devices with higher power consumption to safely managing long cable runs with larger conductor cross sections.
The Wago 221-612 connectors are compatible with all conductor types within the 0.5 to 6mm² range. The connectors are compact, fitting easily into tight spaces, and the transparent housing allows for easy inspection of the connections. With a rated current of 41A and a nominal voltage of 450V, these connectors offer a reliable and safe solution for various electrical applications.
Q: What conductor sizes can the Wago 221-612 connect?
A: It can connect solid, stranded, and fine-stranded conductors ranging from 0.5 to 6mm².
Q: How does the lever mechanism work?
A: Simply pull the lever up, insert the conductor, and push the lever back down for a secure, tool-free connection.
Q: What is the maximum voltage and current rating for this connector?
A: The Wago 221-612 is rated for a nominal voltage of 450V and a rated current of 41A.
(221-612)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Ratings per | EN 60664 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Nominal voltage | 450 V |
| Rated surge voltage | 4 kV |
| Rated current | 41 A |
| Clamping units | 2 |
| Connection technology | CAGE CLAMP® |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Nominal cross-section | 6 mm² / 10 AWG |
| Solid conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Stranded conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Fine-stranded conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Strip length | 12 … 14 mm / 0.47 … 0.55 inches |
| Wiring direction | Side-entry wiring |
| Width | 16 mm / 0.63 inches |
| Height | 10.1 mm / 0.398 inches |
| Depth | 21.1 mm / 0.831 inches |
| Color | Transparent |
| Actuator color | Orange |
| Weight | 3g |
| Housing Material | Polycarbonate (PC) |
| Ambient temperature (operation) | +85 °C |
| Continuous operating temperature | 105 °C |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Wago |
| SKU | 221-612 |
| Barcode # | 0781360993590 |
| Shipping Weight | 0.1900kg |
| Shipping Width | 0.070m |
| Shipping Height | 0.130m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000637000m3 |
| TYPE | VALUE |
|---|---|
| Type | Electrical Accessories |
| Colour | Transparent |
| Height (mm) | 10.1mm |
| Width (mm) | 16mm |
| Depth (mm) | 21.1mm |
| Number of Poles | 2 |
| Nominal Voltage | 450V |
| Weight (g) | 3g |
| Rated Current | 41A |
| Actuator Colour | Orange |
| Cable Diameter | 6 mm² |
| Insulation material | Polycarboante (PC) |
