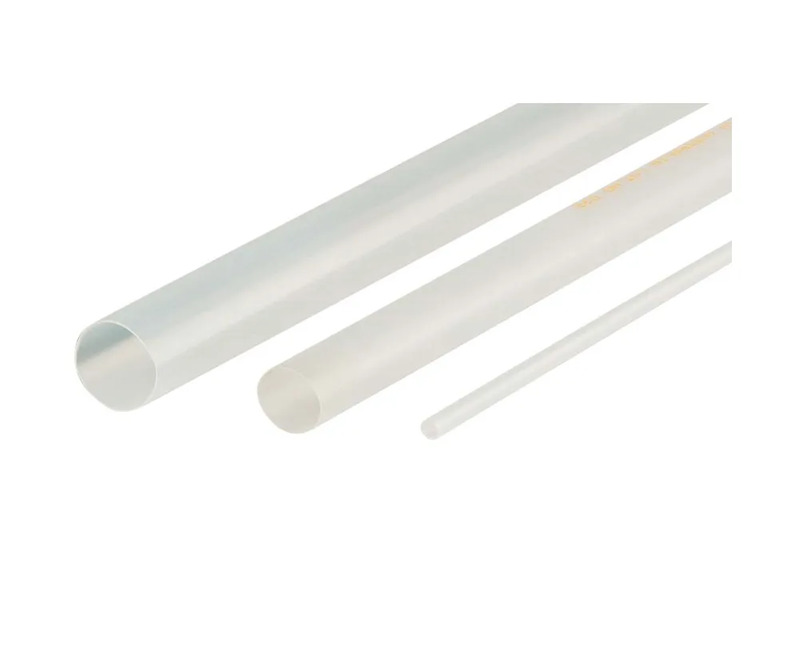

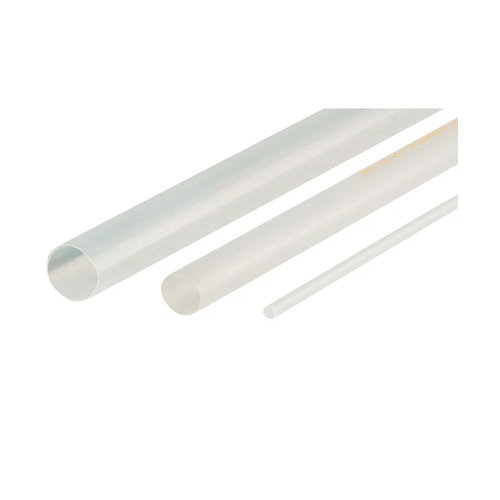

        Cabac XLP13-WH4FT | Heat Shrink 12.7mm - 6.4mm 1.2m | White

        Features:

        The CABAC XLP range of thin wall heat shrink tubing is used to insulate, protect and colour code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical protection, while also defending against environmental factors such as common fluids and/or solvents. Our white thin wall heat shrink sleeving is flexible, flame retardant, and resistant to impact and abrasion.

        The XLP range of heat shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting electrical and environmental insulation.

        CABAC white polyolefin heat shrink tubing is UL certified and complies with a number of international standards, including ASTM D2671.

        Features:

        • Pre-shrink diameter: 12.7mm
        • After-shrink diameter: 6.4mm
        • Recovered wall thickness: 0.62mm
        • Length: 4ft (1.2m)
        • Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
        • Continuous Operating Temp: -75 to +135 degrees Celsius
        • Shrinkage Temp: > 105 degrees Celsius
        • Longitudinal Shrinkage < 5%
        • Tensile Strength: 10.4 MPa
        • Breakdown Voltage: 25 kV/mm wall thickness
        • Elongation at Break Point: 400%
        • Water Absorption: 0.15% max
        • Voltage Rating: 600V
        • Heat Shock: 250 degrees for 4 hours

        (XLP13-WH4FT)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU XLP13-WH4FT
        Barcode # 9318674531890
        TYPE VALUE
        Type Heat Shrink
        Brand Cabac
        Colour White
        Length (mtrs) 1.2
        Rated Voltage 600V
        Pre-Shrink Diameter (mm) 12.7
        After-Shrink Diameter (mm) 6.4
        Recovered Wall Thickness (mm) 0.62
