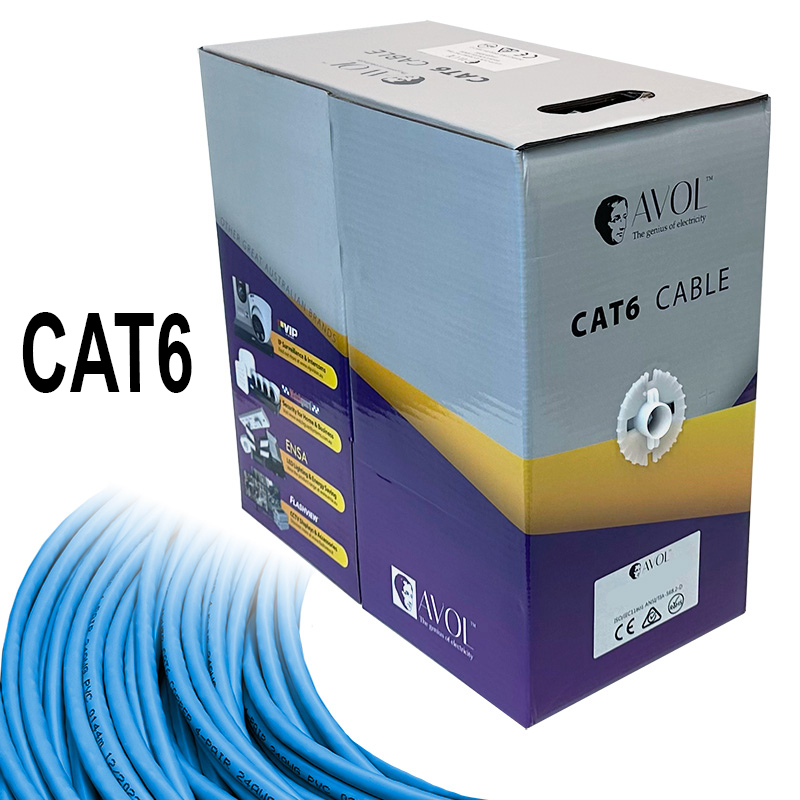

        Avol CAT6BLU-50MM | Cable Cat 6 UTP Blue | 305mtr Box

        The Avol CAT6BLU-50MM is a 305-meter roll of unshielded twisted pair (UTP) Cat 6 cable, designed for reliable and high-performance network installations. This blue cable supports Power over Ethernet (PoE) and features 24AWG (0.50mm) copper wire, providing excellent connectivity and signal strength. The cable is ACMA approved, ensuring compliance with industry standards and safety regulations.

        Packaged in a pullbox for easy deployment, this Cat 6 cable is perfect for electricians and IT professionals looking to install or upgrade their network infrastructure.

        Avol CAT6BLU-50MM Features:

        • 305m Roll of Cat 6 UTP Cable: Supplied in a pullbox for easy, tangle-free installation.
        • Supports Power over Ethernet (PoE): Ideal for powering devices through network cables.
        • 24AWG Copper Wire: Provides excellent signal quality and reliability.
        • Blue Colouring: Easy identification during installations and upgrades.
        • ACMA Approved: Meets all relevant safety and performance standards.

        Avol CAT6BLU-50MM FAQ:

        Q: What is the length of this Cat 6 cable?
        A: The roll contains 305 meters of Cat 6 UTP cable.

        Q: Does this cable support Power over Ethernet (PoE)?
        A: Yes, this cable is designed to support PoE for powering devices over the network.

        Q: Is this cable ACMA approved?
        A: Yes, the cable meets ACMA standards for safety and performance compliance.

        (CAT6BLU-50MM)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Cable Type CAT6 Unshielded UTP
        Cable Colour Blue
        Cable Length (Metres) 305m
        Termination Unterminated
        AWG (Approx) 24
        Conductor Material Solar-Bare Copper
        Nom. O.D. 0.500mm (±0.005)
        Insulation Material HDPE
        Insulation Diameter 0.88±0.05mm
        Insulation Thickness 0.50±0.05mm
        Sheath External O.D. 5.3±0.4mm
        Sheath Surface Clean, Frap, Satiation
        Sheath Material PVC (complies RoHS)
        Sheath Thickness 3.0±0.3mm
        Surface Printing Colour Black
        Core Colour 1 White - Blue/Blue, 3 White - Green/Green, 4 White - Brown/Brown
        Rip-Cord Yes
        Drain Wire No
        Before Aging Tensile Strength (Mpa) ≥13.5
        Elongation Before Aging ≥150%
        Cold Bend -20 ±2°C x 4h
        DC Resistance 9.5 Ω/100m (max)
        DC Conductor Resistance Unbalance 5.0% (max)
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Avol
        SKU CAT6BLU-50MM
        Shipping Weight 13.4800kg
        Shipping Width 0.395m
        Shipping Height 0.220m
        Shipping Length 0.395m
        Shipping Cubic 0.034325500m3
        TYPE VALUE
        Type Cat6
        Brand Avol
        Colour Blue
        Material Solar-Bare Copper
        AWG (Approx) 24
        DC Resistance 9.5 Ω/100m (max)
