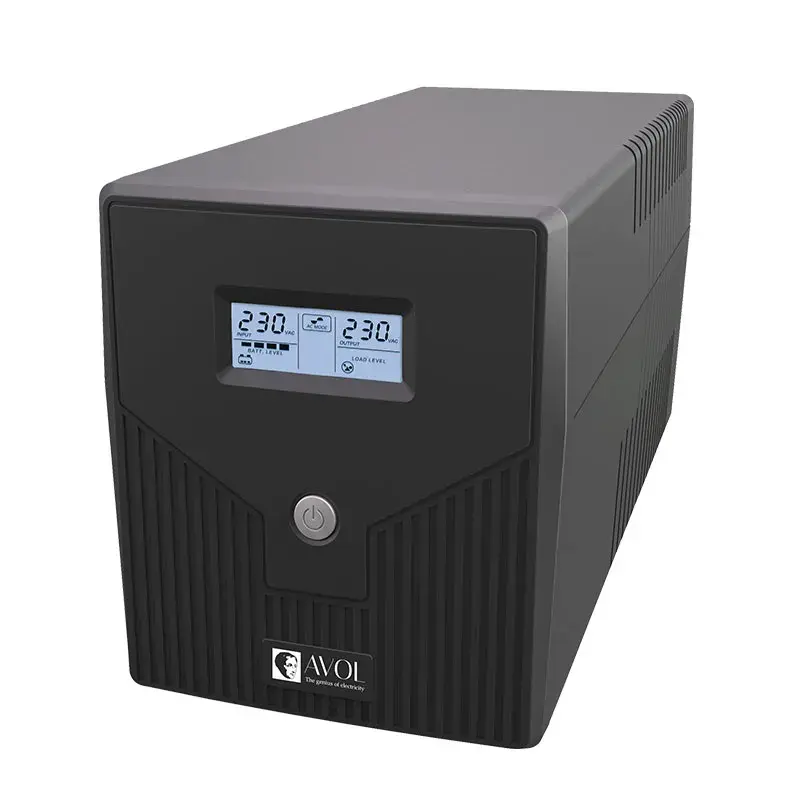

The Avol UPS-C1000-L 1000VA Line Interactive UPS provides dependable backup power and protection for essential electronics, with a 600W capacity to support up to three Australian 3-pin devices. Equipped with overload and overcharge protection, this unit maintains optimal performance and safeguards connected devices against power fluctuations. Its line-interactive design includes boost and buck AVR, stabilizing voltage and protecting against sudden power spikes and interruptions.
This UPS features a simulated sinewave output and a swift 2-6ms transfer time, ensuring continuous operation during power outages. The LCD display offers real-time power and battery status, while alarm alerts notify users of battery mode, low power, and faults. Auto-restart functionality allows the UPS to resume operation seamlessly after power restoration, making it suitable for critical equipment like security systems.
Q: What is the transfer time to battery mode?
A: The UPS has a quick transfer time of 2-6ms, ensuring minimal disruption during outages.
Q: How long does it take to recharge the battery?
A: The two 12V 7Ah batteries typically recharge to 90% capacity within 6-8 hours.
Q: How many devices can it support?
A: This UPS can support up to three devices via its Australian 3-pin outlets.
Q: What alert features does it include?
A: It provides alarm alerts for battery mode, low battery, faults, and when battery replacement is needed.
(UPS-C1000-L)
Warranty starts from Invoice Date
Domestic Use: 2 Year
Commercial Use: 2 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Capacity | 1000VA / 600W |
Operation | Line Interactive |
Protection | Overload, Overcharge |
Input Voltage | 230VAC |
Voltage Range | 170 ~ 280VAC |
Frequency Range | 50/60Hz (auto sensing) |
Output Voltage Range | ±10% |
Frequency Range (Battery Mode) | 50/60Hz ±1Hz |
Transfer Time | 2-6ms |
Waveform (Battery Mode) | Simulated Sinewave |
Output Sockets | 3 x AUS Power Sockets |
Battery Voltage | 12VDC |
Battery Type | 2 x 12V/7Ah |
Recharge Time | 6-8 hours to 90% capacity |
Indicators | AC Mode, Battery Mode, Load Level, Battery Level |
Alarm | Overload - Tone every 0.5 seconds, Low battery - Tone every 1 second, Battery mode -Tone every 10 seconds, Battery replacement - Tone every 2 seconds, Fault - Continuous tone |
Management | USB & RS232 (Windows 2000 to 10, Linus, Unix and MAC) |
Noise Level | <45dB |
Operating Environment | 0 ~ 40°C / 90%RH |
Dimensions | 149 x 338 x 162mm |
Weight | 7.8kg |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Avol |
SKU | UPS-C1000-L |
Package Weight | 8.000kg |
Package Width | 0.405m |
Package Height | 0.240m |
Package Length | 0.200m |
TYPE | VALUE |
---|---|
Type | UPS System |
Colour | Black |
Battery Type | 2 x 12V/7Ah |
Voltage Range | 170 ~ 280VAC |
Input Voltage (V/AC) | 230 |
Capacity | 1000VA / 600W |
Battery Voltage | 12VDC |
Noise Level | <45dB |
Output Sockets | 3 x AUS Power Sockets |
Operation | Line Interactive |
Output Voltage Range | ±10% |
