Learn more by watching our Avol UPS-C1500-L | 1500VA Line Interactive UPS | 900W video.
Description:

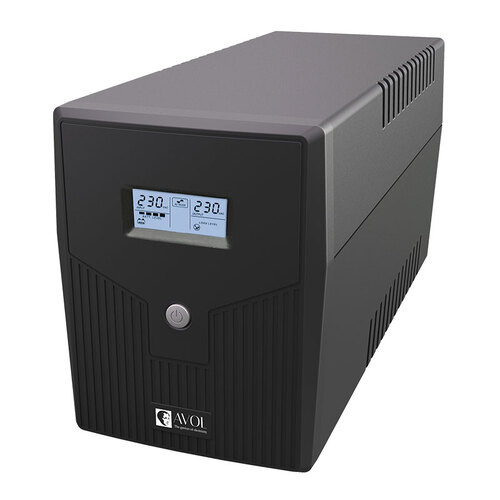

The Avol UPS-C1500-L is a 1500VA Line Interactive UPS designed to shield your valuable electronics from unexpected power disturbances. Engineered for individuals with critical electronic devices at home, this UPS offers not just a safety net during power fluctuations but also ensures your devices run uninterrupted during brief power outages.
Crafted for those who rely on their electronic devices for security, work, and entertainment, the Avol UPS-C1500-L stands out with its ability to protect electronics from overloads and overcharges. It provides a crucial backup power source during outages, ensuring that your security systems and essential devices remain operational. The UPS is easily managed through a USB or RS232 connection, compatible with PC, Mac, or Linux systems, and features a mini-LCD display for real-time monitoring of AC mode, battery mode, battery level, and power load.
Features:
FAQ:
Q: How many devices can the Avol UPS-C1500-L support at once?
A: It can support and protect up to four Australian 3-Pin devices simultaneously.
Q: Does it provide protection against voltage fluctuations?
A: Yes, it features boost and buck AVR for voltage stabilisation, ensuring your devices are safe from voltage fluctuations.
Q: Can I monitor the status of the UPS?
A: Absolutely, the UPS is equipped with a mini-LCD display that provides real-time information on its operational status, including AC mode, battery mode, battery level, and power load.
Q: Is the UPS easy to manage during a power outage?
A: Yes, it automatically restarts when power is restored after an outage, and you can manage the system via USB or RS232 connection to any PC, Mac, or Linux computer.
(UPS-C1500-L)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Capacity | 1500VA / 900W |
Operation | Line Interactive |
Protection | Overload, Overcharge |
Input Voltage | 230VAC |
Voltage Range | 170 ~ 280VAC |
Frequency Range | 50/60Hz (auto sensing) |
Output Voltage Range | ±10% |
Frequency Range (Battery Mode) | 50/60Hz ±1Hz |
Transfer Time | 2-6ms |
Waveform (Battery Mode) | Simulated Sinewave |
Output Sockets | 4 x AUS Power Sockets |
Battery Voltage | 12VDC |
Battery Type | 2 x 12V/9Ah |
Recharge Time | 6-8 hours to 90% capacity |
Indicators | AC Mode, Battery Mode, Load Level, Battery Level |
Alarm | Overload - Tone every 0.5 seconds, Low battery - Tone every 1 second, Battery mode -Tone every 10 seconds, Battery replacement - Tone every 2 seconds, Fault - Continuous tone |
Management | USB & RS232 |
Noise Level | <45dB |
Operating Environment | 0 ~ 40°C / 90%RH |
Dimensions | 158 x 380 x 198mm |
Weight | 10.1kg |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Avol |
SKU | UPS-C1500-L |
Barcode # | 2000000009438 |
Shipping Weight | 10.1000kg |
Shipping Width | 0.158m |
Shipping Height | 0.198m |
Shipping Length | 0.380m |
Shipping Cubic | 0.011887920m3 |
TYPE | VALUE |
---|---|
Type | UPS System |
Colour | Black |
