        Description

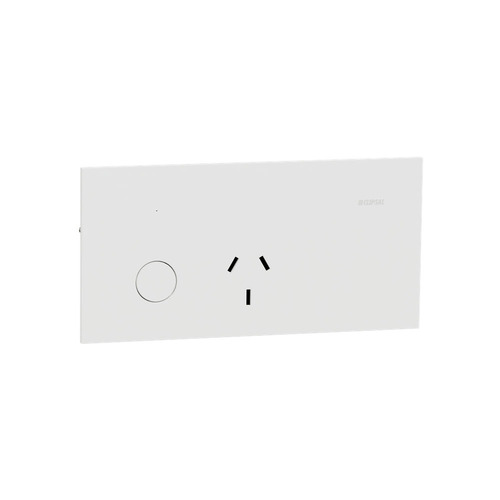

        Clipsal 1010CSZ-ZW | Solis Horizontal Mount Single GPO | Matte White Power Point

        The Clipsal 1010CSZ-ZW Solis Horizontal Mount Single GPO in Matte White is a sleek, functional choice for modern homes, businesses, and hotels. This GPO has a smooth, polycarbonate finish and mounts flush for a minimalist look. Its slim profile, subtle LED indicators, and elegant design offer a perfect blend of style and functionality.

        Solis Horizontal Single GPO Features:

        • Smart Control: Manage your socket with ease using the Wiser Home app.
        • Durable Design: High-quality polycarbonate with a sleek Matte White finish.
        • Secure Connections: Screw terminals for reliable connections with larger wires.
        • Flush Mounting: Slim, modern profile designed for horizontal installation.

        It meets Australian/New Zealand standards with a 2P + E pole configuration and supports a 10A current at 230/240VAC, ensuring reliable performance. The screw terminal design ensures secure connections, particularly for larger wires, reducing the risk of loosening. This socket is meant for horizontal installation only and includes screws for easy setup. You can easily manage this smart socket with the Wiser Home app.

        Clipsal 1010CSZ-ZW FAQ:

        Q: What is the rated current for this GPO?
        A: The rated current is 10A.

        Q: Is this socket outlet compatible with smart home systems?
        A: Yes, it can be controlled through the Wiser Home app.

        Q: What material is the GPO made from?
        A: It is made from high-quality polycarbonate with a painted finish.

        Q: How is this socket installed?
        A: It is designed for flush mounting in a horizontal position.

        (1010CSZ-ZW)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year Mechanical and 7 Year Electronic
        Commercial Use: 10 Year Mechanical and 7 Year Electronic
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Range Clipsal Solis
        Product or component type Socket with Wiser connected switch
        Product brand Clipsal
        Assembly Type Complete product
        Colour tint Matt White
        Software name Wiser Home
        Protection Shuttered
        Memory usage Backup
        Main colour tint Matt White
        Control type Rocker
        Number Of Outlets 1
        Socket-outlet type Single socket-outlet
        Mounting Type Screw
        Installation Type Flush
        Installation Orientation Horizontal
        Material Polycarbonate
        [Ue] rated operational voltage 230/240 V AC
        Network frequency 50 Hz
        [In] rated current 10 A
        Connections - terminals 4 x 2.5 mm² screw terminals
        3 x 4 mm² screw terminals
        Embedding depth 63 mm
        Depth 67.5 mm
        Height 74 mm
        Width 148 mm
        Mounting Centers 84 mm
        Communication network type ZigBee 50 m
        Cut-out dimensions 93 x 50 mm
        Surface treatment Painted
        Screwdriver shape Philips No 2
        Square drive no 1 (SQ1)
        Wire stripping length 16 mm
        Number of power socket outlets 1 x 2P + E, Australian/New Zealand
        Cover Thickness 4.5 mm
        Number Of Switches 1
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 1010CSZ-ZW
        Barcode # 3606487057390
        TYPE VALUE
        Brand Clipsal
        Range Clipsal Solis
        Colour Matte White
        Number Of Outlets 1
        Material Polycarbonate
        Depth 67.5mm
        Width 148mm
        Height 74mm
        Mounting Type Screw
        Rated Current 10A
        Control Type Rocker
        Assembly Type Complete Product
        Installtion Type Flush
        Rated Operational Voltage 230/240V AC
        Cut-out Dimensions 93 x 50mm
