        Description

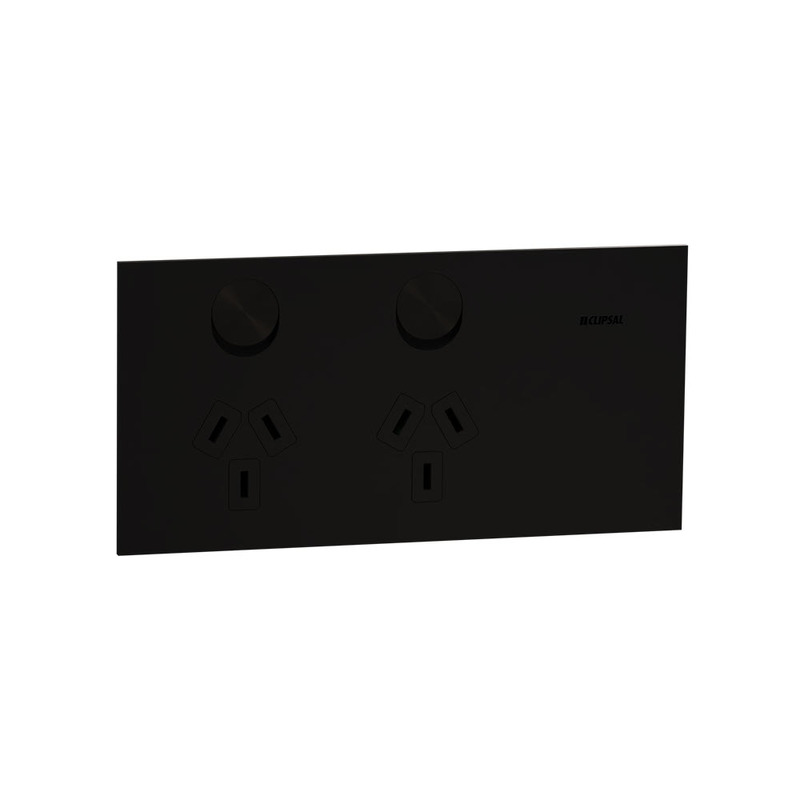

        Clipsal 1025-EA | Solis T Series Horizontal Double GPO | Ebony Aluminium Power Point

        The Clipsal 1025-EA Solis T Series Horizontal Double GPO in Ebony Aluminium offers a stylish and functional solution for homes, businesses, and hotels. Crafted from high-quality aluminium with a sleek metallic finish, this GPO is designed for flush mounting and delivers a clean, modern look. This double GPO is intended for horizontal installation and blends elegant design with practical functionality.

        Solis T Series Double GPO Features:

        • Dual Socket Outlets: Offers two power outlets in a sleek, horizontal design.
        • Durable Construction: Made from high-quality aluminium with an elegant Ebony finish.
        • Secure Connections: Screw terminals ensure reliable connections for larger wires.
        • Flush Mounting: Designed for horizontal installation with a slim, modern profile.

        This double-switched socket outlet is designed to meet Australian/New Zealand standards and features a 2P + E pole configuration, providing reliable power. The screw terminal design ensures secure connections, especially for larger wires, reducing the risk of loose connections. It operates at 10A and 230/240VAC, ensuring consistent and safe performance.

        Clipsal 1025-EA FAQ:

        Q: What is the rated current for this GPO?
        A: The rated current is 10A.

        Q: How is this socket outlet installed?
        A: It is designed for flush mounting in a horizontal orientation.

        Q: What material is used for the construction of this GPO?
        A: The GPO is made from high-quality aluminium with a metallic finish.

        Q: Does this GPO meet Australian/New Zealand standards?
        A: Yes, it meets all relevant Australian/New Zealand standards for safety and reliability.

        (1025-EA)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year Mechanical and 7 Year Electronic
        Commercial Use: 10 Year Mechanical and 7 Year Electronic
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Range Clipsal Solis T Series
        Product or component type Switched socket
        Product brand Clipsal
        Assembly Type Complete product
        Colour tint Ebony aluminium
        Protection Shuttered
        Main colour tint Ebony aluminium
        Control type Rocker
        Number Of Outlets 2
        Socket-outlet type Double socket-outlet
        Mounting Type Screw
        Installation Type Flush
        Installation Orientation Horizontal
        Material Aluminium
        Surface finish Metallic
        [Ue] rated operational voltage 230/240 V AC
        Network frequency 50 Hz
        [In] rated current 10 A
        Connections - terminals 4 x 2.5 mm² screw terminals
        3 x 4 mm² screw terminals
        Embedding depth 23.5 mm
        Depth 27.4 mm
        Height 74 mm
        Width 148 mm
        Mounting Centers 84 mm
        Cut-out dimensions 93 x 50 mm
        Surface treatment Painted
        Screwdriver shape Philips No 2
        Square drive no 1 (SQ1)
        Wire stripping length 16 mm
        Number of power socket outlets 2 x 2P + E, Australian/New Zealand
        Cover Thickness 5 mm
        Number Of Switches 2
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 1025-EA
        Barcode # 3606487058069
        TYPE VALUE
        Brand Clipsal
        Range Clipsal Solis T Series
        Colour Ebony Aluminium
        Number Of Outlets 2
        Material Aluminium
        Depth 27.4mm
        Width 148mm
        Height 74mm
        Mounting Type Screw
        Rated Current 10A
        Control Type Rocker
        Assembly Type Complete Product
        Installtion Type Flush
        Rated Operational Voltage 230/240V AC
        Cut-out Dimensions 93 x 50mm
