Learn more by watching our Clipsal 1025-LB | Solis T Series Horizontal Double GPO | Living Brass Power Point video.
Additional related video.

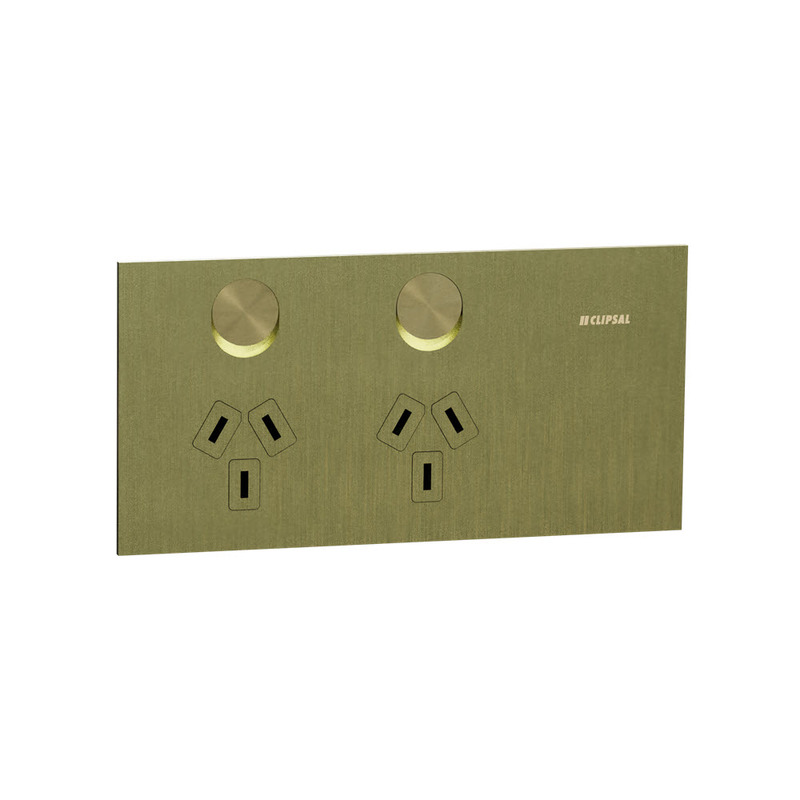

The Clipsal 1025-EA Solis T Series Horizontal Double GPO in Living Brass offers a stylish and functional solution for homes, businesses, and hotels. Crafted from high-quality brass with a sleek metallic finish, this GPO is designed for flush mounting and delivers a clean, modern look. This double GPO is intended for horizontal installation and blends elegant design with practical functionality.
This double-switched socket outlet is designed to meet Australian/New Zealand standards and features a 2P + E pole configuration, providing reliable power. The screw terminal design ensures secure connections, especially for larger wires, reducing the risk of loose connections. It operates at 10A and 230/240VAC, ensuring consistent and safe performance.
Q: What is the rated current for this GPO?
A: The rated current is 10A.
Q: How is this socket outlet installed?
A: It is designed for flush mounting in a horizontal orientation.
Q: What material is used for the construction of this GPO?
A: The GPO is made from high-quality brass with a metallic finish.
Q: Does this GPO meet Australian/New Zealand standards?
A: Yes, it meets all relevant Australian/New Zealand standards for safety and reliability.
(1025-LB)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electronic
Commercial Use: 10 Year Mechanical and 7 Year Electronic
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Range | Clipsal Solis T Series |
Product or component type | Switched socket |
Product brand | Clipsal |
Assembly Type | Complete product |
Colour tint | Living Brass |
Protection | Shuttered |
Main colour tint | Living Brass |
Control type | Rocker |
Number Of Outlets | 2 |
Socket-outlet type | Double socket-outlet |
Mounting Type | Screw |
Installation Type | Flush |
Installation Orientation | Horizontal |
Material | Brass |
Surface finish | Metallic |
[Ue] rated operational voltage | 230/240 V AC |
Network frequency | 50 Hz |
[In] rated current | 10 A |
Connections - terminals | 4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals |
Embedding depth | 23.5 mm |
Depth | 27.4 mm |
Height | 74 mm |
Width | 148 mm |
Mounting Centers | 84 mm |
Cut-out dimensions | 93 x 50 mm |
Surface treatment | Painted |
Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
Wire stripping length | 16 mm |
Number of power socket outlets | 2 x 2P + E, Australian/New Zealand |
Cover Thickness | 5 mm |
Number Of Switches | 2 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 1025-LB |
Barcode # | 3606487057703 |
TYPE | VALUE |
---|---|
Brand | Clipsal |
Range | Clipsal Solis T Series |
Colour | Living Brass |
Number Of Outlets | 2 |
Depth | 27.4mm |
Width | 148mm |
Height | 74mm |
Mounting Type | Screw |
Rated Current | 10A |
Control Type | Rocker |
Assembly Type | Complete Product |
Installtion Type | Flush |
Rated Operational Voltage | 230/240V AC |
Cut-out Dimensions | 93 x 50mm |
