        Description

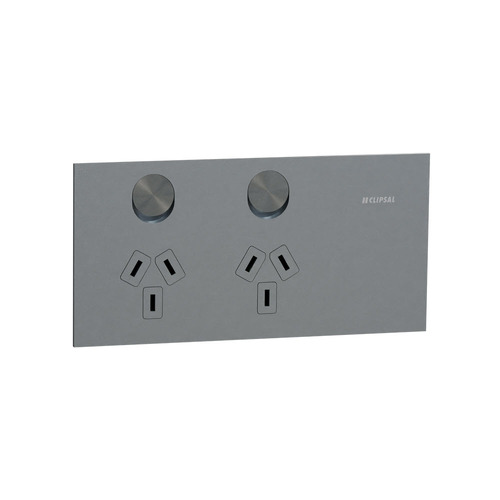

        Clipsal 1025-PT | Solis T Series Horizontal Double GPO | Platinum Power Point

        The Clipsal 1025-EA Solis T Series Horizontal Double GPO in Platinum offers a stylish and functional solution for homes, businesses, and hotels. Crafted from high-quality aluminium with a sleek metallic finish, this GPO is designed for flush mounting and delivers a clean, modern look. This double GPO is intended for horizontal installation and blends elegant design with practical functionality.

        Solis T Series Double GPO Features:

        • Dual Socket Outlets: Offers two power outlets in a sleek, horizontal design.
        • Durable Construction: Made from high-quality aluminium with an elegant Platinum finish.
        • Secure Connections: Screw terminals ensure reliable connections for larger wires.
        • Flush Mounting: Designed for horizontal installation with a slim, modern profile.

        This double-switched socket outlet is designed to meet Australian/New Zealand standards and features a 2P + E pole configuration, providing reliable power. The screw terminal design ensures secure connections, especially for larger wires, reducing the risk of loose connections. It operates at 10A and 230/240VAC, ensuring consistent and safe performance.

        Clipsal 1025-PT FAQ:

        Q: What is the rated current for this GPO?
        A: The rated current is 10A.

        Q: How is this socket outlet installed?
        A: It is designed for flush mounting in a horizontal orientation.

        Q: What material is used for the construction of this GPO?
        A: The GPO is made from high-quality aluminium with a metallic finish.

        Q: Does this GPO meet Australian/New Zealand standards?
        A: Yes, it meets all relevant Australian/New Zealand standards for safety and reliability.

        (1025-PT)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year Mechanical and 7 Year Electronic
        Commercial Use: 10 Year Mechanical and 7 Year Electronic
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Range Clipsal Solis T Series
        Product or component type Switched socket
        Product brand Clipsal
        Assembly Type Complete product
        Colour tint Platinum
        Protection Shuttered
        Main colour tint Platinum
        Control type Rocker
        Number Of Outlets 2
        Socket-outlet type Double socket-outlet
        Mounting Type Screw
        Installation Type Flush
        Installation Orientation Horizontal
        Material Aluminium
        Surface finish Metallic
        [Ue] rated operational voltage 230/240 V AC
        Network frequency 50 Hz
        [In] rated current 10 A
        Connections - terminals 4 x 2.5 mm² screw terminals
        3 x 4 mm² screw terminals
        Embedding depth 23.5 mm
        Depth 27.4 mm
        Height 74 mm
        Width 148 mm
        Mounting Centers 84 mm
        Cut-out dimensions 93 x 50 mm
        Surface treatment Painted
        Screwdriver shape Philips No 2
        Square drive no 1 (SQ1)
        Wire stripping length 16 mm
        Number of power socket outlets 2 x 2P + E, Australian/New Zealand
        Cover Thickness 5 mm
        Number Of Switches 2
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 1025-PT
        Barcode # 3606487101888
        TYPE VALUE
        Brand Clipsal
        Range Clipsal Solis T Series
        Colour Platinum
        Number Of Outlets 2
        Material Aluminium
        Depth 27.4mm
        Width 148mm
        Height 74mm
        Mounting Type Screw
        Rated Current 10A
        Control Type Rocker
        Assembly Type Complete Product
        Installtion Type Flush
        Rated Operational Voltage 230/240V AC
        Cut-out Dimensions 93 x 50mm
