        Description

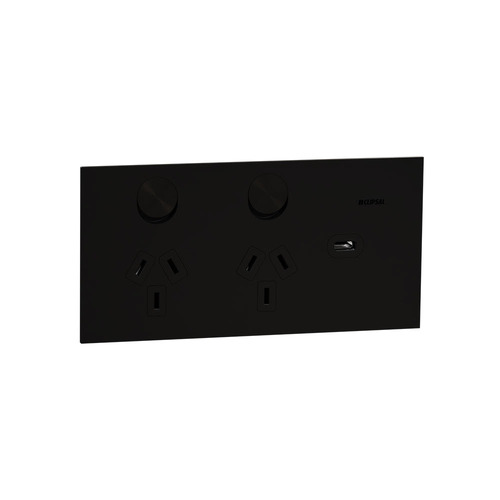

        Clipsal 1025USBC-EA | Solis T Series Horizontal Double GPO With USB-C | Ebony Aluminium Power Point

        The Clipsal 1025USBC-EA Solis T Series Horizontal Double GPO with USB-C in Ebony Aluminium combines style and practicality, making it ideal for modern homes, offices, and hotels. Made from premium aluminium with a sleek metallic finish, this GPO is designed for flush mounting and offers a streamlined look that enhances any interior. Designed for horizontal installation only, this GPO is perfect for modern spaces where both design and functionality are essential.

        Solis T Series Double GPO With USB-C Features:

        • Integrated USB C Charger: Built-in USB C port eliminates the need for external chargers, offering convenience.
        • Durable Design: High-quality aluminium with an elegant Ebony finish and metallic surface treatment.
        • Secure Connections: Screw terminals ensure reliable connections for larger wires, enhancing safety.
        • Flush Mounting: Slim profile designed for horizontal installation, blending seamlessly into your space.

        This switched socket outlet features a 2P + E pole configuration and a built-in USB-C charger. It allows you to charge your devices directly from the wall without needing an external charger. The screw terminals provide a secure connection, particularly for larger wires, reducing the risk of loosening. It supports a 10A current and operates at 230/240VAC, ensuring reliable and efficient power delivery.

        Clipsal 1025USBC-EA FAQ:

        Q: Does this GPO include a USB charging port?
        A: Yes, it includes a built-in USB-C charger for convenient device charging.

        Q: What is the rated current and voltage of this socket?
        A: The GPO is rated for 10A at 230/240VAC, 50Hz.

        Q: What material is used for the construction of this GPO?
        A: It is made from high-quality aluminium with a metallic surface finish.

        Q: Is this socket designed for horizontal or vertical installation?
        A: This GPO is designed for horizontal installation only.

        (1025USBC-EA)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year Mechanical and 7 Year Electronic
        Commercial Use: 10 Year Mechanical and 7 Year Electronic
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Product or component type Switched socket with USB charger
        Assembly Type Complete product
        Standards AS/NZS 3112
        Product certifications RCM
        Main colour tint Ebony aluminium
        Range Clipsal Solis T Series
        Number Of Outlets 2
        Device mounting Wall mounted 65 mm
        Cover type With shutter
        Number of power socket outlets 2 x 2P + E, Australian/New Zealand
        Rated current 10 A 230/240 V, AC, 50 Hz
        Connections - terminals 4 x 2.5 mm² screw terminals
        3 x 4 mm² screw terminals
        Colour tint Ebony aluminium
        Surface finish Aluminium
        Surface treatment Metallic
        Additional Function USB type C
        Material Aluminium
        Screwdriver shape Philips No 2
        Square drive no 1 (SQ1)
        Wire stripping length 16 mm
        Fixing mode By screw
        Fixing center 120 mm
        Height 74 mm
        Width 148 mm
        Depth 68.9 mm
        Sale per indivisible quantity 1
        Installation Type Flush
        Installation Orientation Horizontal
        Control type Rocker
        Cover Thickness 3.9 mm
        Cut-out dimensions 130 x 50 mm
        Number Of Switches 2
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 1025USBC-EA
        Barcode # 3606487058083
        TYPE VALUE
        Brand Clipsal
        Range Clipsal Solis T Series
        Colour Ebony Aluminium
        Number Of Outlets 2
        Material Aluminium
        Depth 68.9mm
        Width 148mm
        Height 74mm
        USB 1 x USB C
        Mounting Type Screw
        Rated Current 10A
        Control Type Rocker
        Assembly Type Complete Product
        Installtion Type Flush
        Rated Operational Voltage 230/240V AC
        Cut-out Dimensions 130 x 50mm
