Learn more by watching our Clipsal 1025USBC-ZB | Solis Horizontal Double GPO With USB-C | Matte Black Power Point video.
Additional related video.

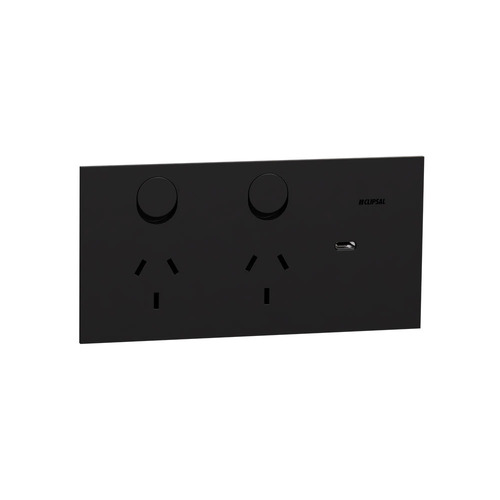

The Clipsal 1025USBC-ZB Solis Horizontal Double GPO with USB-C in Matte Black combines style and practicality, making it ideal for modern homes, offices, and hotels. Made from premium plastic with a sleek matte finish, this GPO is designed for flush mounting, offering a streamlined look that enhances any interior. Designed for horizontal installation only, this GPO is perfect for modern spaces where both design and functionality are essential.
This switched socket outlet features a 2P + E pole configuration and includes a built-in USB-C charger, allowing you to charge your devices directly from the wall without needing an external charger. It supports a 10A current and operates at 230/240VAC, ensuring reliable and efficient power delivery. The screw terminals provide a secure connection, particularly for larger wires, reducing the risk of loosening.
Q: Does this GPO include a USB charging port?
A: Yes, it includes a built-in USB-C charger for convenient device charging.
Q: What is the rated current and voltage of this socket?
A: The GPO is rated for 10A at 230/240VAC, 50Hz.
Q: What material is used for the construction of this GPO?
A: It is made from high-quality plastic.
Q: Is this socket designed for horizontal or vertical installation?
A: This GPO is designed for horizontal installation only.
(1025USBC-ZB)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electronic
Commercial Use: 10 Year Mechanical and 7 Year Electronic
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Product or component type | Switched socket with USB charger |
Assembly Type | Complete product |
Standards | AS/NZS 3112 |
Product certifications | RCM |
Main colour tint | Matte Black |
Range | Clipsal Solis |
Number Of Outlets | 2 |
Device mounting | Wall mounted 65 mm |
Cover type | With shutter |
Number of power socket outlets | 2 x 2P + E, Australian/New Zealand |
Rated current | 10 A 230/240 V, AC, 50 Hz |
Connections - terminals | 4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals |
Colour tint | Matte Black |
Surface finish | Matte |
Surface treatment | Painted |
Additional Function | USB type C |
Material | Plastic |
Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
Wire stripping length | 16 mm |
Fixing mode | By screw |
Fixing center | 120 mm |
Height | 74 mm |
Width | 148 mm |
Depth | 69.5 mm |
Sale per indivisible quantity | 1 |
Installation Type | Flush |
Installation Orientation | Horizontal |
Control type | Rocker |
Cover Thickness | 4.5 mm |
Cut-out dimensions | 130 x 50 mm |
Number Of Switches | 2 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 1025USBC-ZB |
Barcode # | 3606487057550 |
TYPE | VALUE |
---|---|
Brand | Clipsal |
Range | Clipsal Solis |
Colour | Matte Black |
Number Of Outlets | 2 |
Material | Plastic |
Depth | 69.5mm |
Width | 148mm |
Height | 74mm |
USB | 1 x USB C |
Mounting Type | Screw |
Rated Current | 10A |
Control Type | Rocker |
Assembly Type | Complete Product |
Installtion Type | Flush |
Rated Operational Voltage | 230/240V AC |
Cut-out Dimensions | 130 x 50mm |
