Learn more by watching our Clipsal 1025XUA-PT | Solis T Series Horizontal Double GPO With Extra Switch (NO MECH) | Platinum Power Point video.
Additional related video.

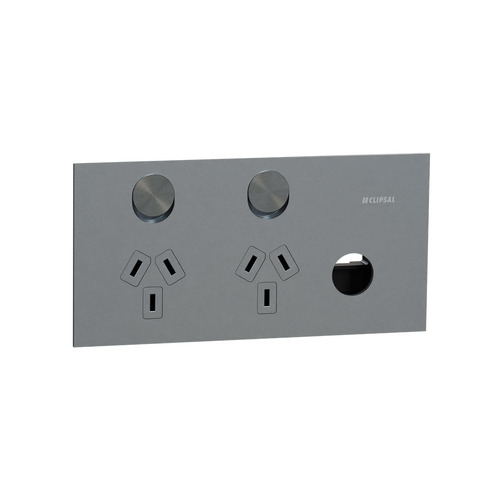

The Clipsal 1025XUA-EA Solis T Series Horizontal Double GPO with Extra Switch (No Mech) in Platinum offers a sleek and functional solution for modern residential, commercial, and hotel settings. Made from high-quality aluminium with a stylish metallic finish, this GPO is designed for flush mounting, giving it a clean, minimalist look.
This double-switched socket outlet meets Australian/New Zealand standards and features a 2P + E pole configuration for reliable performance. With a 10A current rating and an operational voltage of 230/240VAC, it delivers consistent power for various applications. The extra switch adds versatility, providing additional control options. Secure screw terminal connections enhance safety by reducing the risk of loose wires, making it ideal for larger wiring installations.
Q: What is the rated current for this GPO?
A: The rated current is 10A.
Q: Does this socket outlet include the extra switch mechanism?
A: No, this version does not include the extra switch mechanism (No Mech).
Q: What material is used for this GPO?
A: The GPO is made from high-quality aluminium with a metallic finish.
Q: Is this socket intended for horizontal or vertical installation?
A: This GPO is designed for horizontal installation only.
(1025XUA-PT)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electronic
Commercial Use: 10 Year Mechanical and 7 Year Electronic
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Range | Clipsal Solis T Series |
Product or component type | Switched socket |
Product brand | Clipsal |
Assembly Type | Complete product |
Colour tint | Platinum |
Protection | Shuttered |
Main colour tint | Platinum |
Control type | Rocker |
Number Of Outlets | 2 |
Socket-outlet type | Double socket-outlet |
Mounting Type | Screw |
Installation Type | Flush |
Installation Orientation | Horizontal |
Material | Aluminium |
Surface finish | Metallic |
[Ue] rated operational voltage | 230/240 V AC |
Network frequency | 50 Hz |
[In] rated current | 10 A |
Connections - terminals | 4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals |
Embedding depth | 23.5 mm |
Depth | 27.4 mm |
Height | 74 mm |
Width | 148 mm |
Mounting Centers | 120 mm |
Cut-out dimensions | 130 x 50 mm |
Surface treatment | Painted |
Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
Wire stripping length | 16 mm |
Number of power socket outlets | 2 x 2P + E, Australian/New Zealand |
Cover Thickness | 5 mm |
Number Of Switches | 2 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 1025XUA-PT |
Barcode # | 3606487101895 |
TYPE | VALUE |
---|---|
Brand | Clipsal |
Range | Clipsal Solis T Series |
Colour | Platinum |
Number Of Outlets | 2 |
Material | Aluminium |
Depth | 27.4mm |
Width | 148mm |
Height | 74mm |
Mounting Type | Screw |
Rated Current | 10A |
Control Type | Rocker |
Assembly Type | Complete Product |
Installtion Type | Flush |
Rated Operational Voltage | 230/240V AC |
Cut-out Dimensions | 130 x 50mm |
