        Description

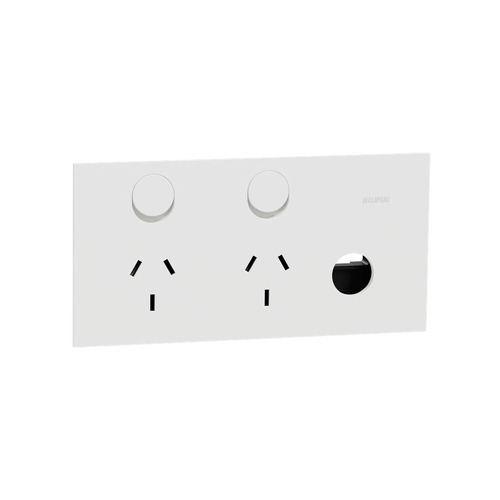

        Clipsal 1025XUA-ZW | Solis Horizontal Double GPO With Extra Switch (NO MECH) | Matte White Power Point

        The Clipsal 1025XUA-ZB Solis Horizontal Double GPO with Extra Switch (No Mech) in Matte White offers a sleek and functional solution for modern residential, commercial, and hotel settings. Made from high-quality plastic with a stylish matte finish, this GPO is designed for flush mounting, giving it a clean, minimalist look. The extra switch adds versatility, providing additional control options.

        Solis Double GPO With Extra Switch Features:

        • Extra Switch Space: Adds versatility with additional control options.
        • Durable Construction: Crafted from premium plastic with a matte white finish.
        • Secure Connections: Screw terminals ensure safe and reliable connections for larger wires.
        • Flush Mounting: Designed for horizontal installation with a slim, modern profile.

        This double-switched socket outlet meets Australian/New Zealand standards and features a 2P + E pole configuration for reliable performance. With a 10A current rating and an operational voltage of 230/240VAC, it delivers consistent power for various applications. Secure screw terminal connections enhance safety by reducing the risk of loose wires, making it ideal for larger wiring installations.

        Clipsal 1025XUA-ZB FAQ:

        Q: What is the rated current for this GPO?
        A: The rated current is 10A.

        Q: Does this socket outlet include the extra switch mechanism?
        A: No, this version does not include the extra switch mechanism (No Mech).

        Q: What material is used for this GPO?
        A: The GPO is made from high-quality plastic.

        Q: Is this socket intended for horizontal or vertical installation?
        A: This GPO is designed for horizontal installation only.

        (1025XUA-ZW)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year Mechanical and 7 Year Electronic
        Commercial Use: 10 Year Mechanical and 7 Year Electronic
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Range Clipsal Solis
        Product or component type Switched socket
        Product brand Clipsal
        Assembly Type Complete product
        Colour tint Matte White
        Protection Shuttered
        Main colour tint Matte White
        Control type Rocker
        Number Of Outlets 2
        Socket-outlet type Double socket-outlet
        Mounting Type Screw
        Installation Type Flush
        Installation Orientation Horizontal
        Material Plastic
        Surface finish Matte
        [Ue] rated operational voltage 230/240 V AC
        Network frequency 50 Hz
        [In] rated current 10 A
        Connections - terminals 4 x 2.5 mm² screw terminals
        3 x 4 mm² screw terminals
        Embedding depth 23.5 mm
        Depth 28 mm
        Height 74 mm
        Width 148 mm
        Mounting Centers 120 mm
        Cut-out dimensions 130 x 50 mm
        Surface treatment Painted
        Screwdriver shape Philips No 2
        Square drive no 1 (SQ1)
        Wire stripping length 16 mm
        Number of power socket outlets 2 x 2P + E, Australian/New Zealand
        Cover Thickness 5 mm
        Number Of Switches 2
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 1025XUA-ZW
        Barcode # 3606487057376
        TYPE VALUE
        Brand Clipsal
        Range Clipsal Solis
        Colour Matte White
        Number Of Outlets 2
        Material Plastic
        Depth 28mm
        Width 148mm
        Height 74mm
        Mounting Type Screw
        Rated Current 10A
        Control Type Rocker
        Assembly Type Complete Product
        Installtion Type Flush
        Rated Operational Voltage 230/240V AC
        Cut-out Dimensions 130 x 50mm
