Learn more by watching our Clipsal 1041PA-ZW | Solis 1 Gang Horizontal Switch 20A/16AX | Matte White video.
Additional related video.

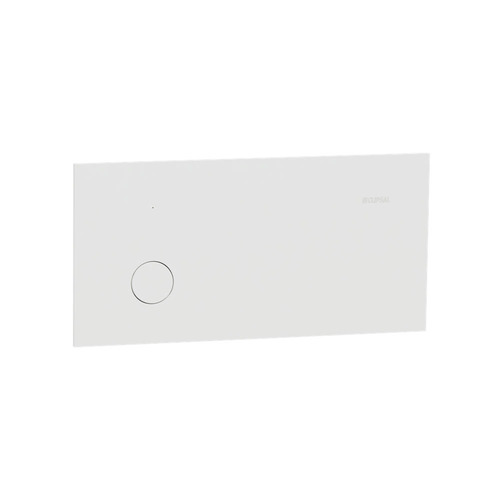

The Clipsal 1041PA-ZW Solis Range 1 Gang Switch in Matte White is a stylish and reliable option for controlling a single circuit in homes, businesses, and hotels. Its matte white finish and flush mounting provide a clean, minimalist appearance that fits well with modern interiors. Designed for horizontal installation only, the Solis 1 Gang Switch perfectly balances elegant design and practical use.
Meeting Australian/New Zealand standards, this switch blends functionality with a sleek design. It supports a rated current of 20A/16AX and operates at 230/240VAC, ensuring dependable performance across various applications.This switch features a simple push-button control, allowing you to manage the circuit from one or two locations easily. The screw terminal design offers secure connections for larger wires, reducing the chance of loose connections.
Q: What is the rated current and voltage for this switch?
A: The switch is rated for 20A/16AX at 230/240VAC, 50Hz.
Q: Is this switch suitable for controlling multiple circuits?
A: No, it is designed for controlling a single circuit.
Q: What material is used for the construction of this switch?
A: The switch is made from high-quality plastic with a matte white finish.
Q: How is this switch installed?
A: It is designed for flush mounting in a horizontal orientation.
(1041PA-ZW)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electrical
Commercial Use: 10 Year Mechanical and 7 Year Electrical
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Range | Clipsal Solis |
Product brand | Clipsal |
Product or component type | Switch |
Assembly Type | Complete product |
Outlet standard deviation | Australian/New Zealand |
Colour tint | Matte white |
Number of gangs | 1 gang |
[Ue] rated operational voltage | 230/240 V |
Network type | AC |
Network frequency | 50 Hz |
Rated current | 20 A/16 AX |
Control type | Push-button |
Connections - terminals | Screw terminals |
Installation Type | Flush |
Number Of Switches | 1 |
Material | Plastic |
Installation direction | Horizontal |
Surface treatment | Painted |
Load type | LED lamp 0...250 W 20 A/16 AX |
Terminals Capacity | 4 x 1.5...3 x 2.5 mm² |
Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
Wire stripping length | 10 mm |
Mounting Type | Screw |
Cover Thickness | 4.5 mm |
Mounting Centers | 84 mm |
Cut-out dimensions | 93 x 50 mm |
Product certifications | RCM |
Surface finish | Matte |
Height | 74 mm |
Width | 148 mm |
Depth | 45.5 mm |
Embedding depth | 41 mm |
Motor M-rating | AS3133 M80 |
Switch function | 1-pole 1/2-way |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 1041PA-ZW |
Barcode # | 3606487057444 |
TYPE | VALUE |
---|---|
Type | Switch |
Brand | Clipsal |
Range | Clipsal Solis |
Colour | Matte White |
Assembly Type | Complete Product |
Height | 74mm |
Depth | 45.5mm |
Material | Plastic |
Rated Operational Voltage | 230/240 V |
Control Type | Push Button |
Number of gangs | 1 |
Load type | LEDi lamp 0...250 W 20 A/16 AX |
Motor M-rating | M80 AS3133 |
Installtion Type | Flush |
Rated Current | 20 A/16 AX |
Width | 148mm |
Cut-out Dimensions | 93 x 50mm |
