Learn more by watching our Clipsal 1041TA-WC | Solis T Series 1 Gang Switch 20A/16AX | White Ceramic video.
Additional related video.

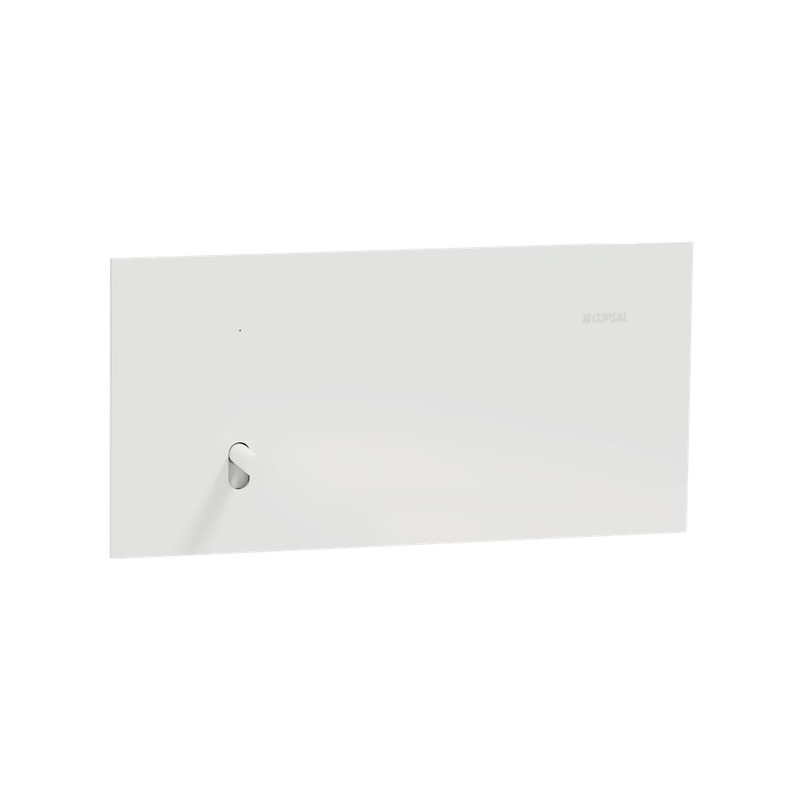

The Clipsal 1041TA-WC Solis T Series 1 Gang Switch in White Ceramic combines elegance with functionality, making it perfect for modern homes, offices, and hotels. This switch offers both a sophisticated look and long-lasting durability. Designed for horizontal flush mounting, the switch has a sleek, minimalist appearance that blends seamlessly into any setting.
This single toggle switch is designed to control one circuit and can be operated from one or two locations. It supports a rated current of 20A/16AX and operates at 230/240VAC, ensuring dependable performance across various electrical setups. It features screw terminals for secure connections, minimizing the risk of loose wires over time.
Q: What is the rated current and voltage for this switch?
A: The switch is rated for 20A/16AX at 230/240VAC, 50Hz.
Q: What type of control does this switch offer?
A: It is a toggle switch designed for controlling a single circuit.
Q: What material is used for the construction of this switch?
A: The switch is made from high-quality ceramic with a polished finish.
Q: Is this switch suitable for vertical installation?
A: No, this switch is designed for horizontal installation only.
(1041TA-WC)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electrical
Commercial Use: 10 Year Mechanical and 7 Year Electrical
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Range | Clipsal Solis T Series |
Product brand | Clipsal |
Product or component type | Switch |
Assembly Type | Complete product |
Outlet standard deviation | Australian/New Zealand |
Colour tint | White Ceramic |
Number of gangs | 1 gang |
[Ue] rated operational voltage | 230/240 V |
Network type | AC |
Network frequency | 50 Hz |
Rated current | 20 A/16 AX |
Control type | Toggle switch |
Connections - terminals | Screw terminals |
Installation Type | Flush |
Number Of Switches | 1 |
Material | Ceramic |
Installation direction | Horizontal |
Load type | LED lamp 0...250 W 20 A/16 AX |
Terminals Capacity | 4 x 1.5...3 x 2.5 mm² |
Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
Wire stripping length | 10 mm |
Mounting Type | Screw |
Cover Thickness | 3.6 mm |
Mounting Centers | 84 mm |
Cut-out dimensions | 93 x 50 mm |
Product certifications | RCM |
Surface finish | Polished |
Height | 74 mm |
Width | 148 mm |
Depth | 56 mm |
Embedding depth | 41 mm |
Motor M-rating | AS3133 M80 |
Switch function | 1-pole 1/2-way |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 1041TA-WC |
Barcode # | 3606487057970 |
TYPE | VALUE |
---|---|
Type | Switch |
Brand | Clipsal |
Range | Clipsal Solis T Series |
Colour | White Ceramic |
Assembly Type | Complete Product |
Height | 74mm |
Depth | 56mm |
Material | Ceramic |
Switch Fucntion | 1 Pole 1/2-Way |
Rated Operational Voltage | 230/240 V |
Control Type | Toggle Switch |
Number of gangs | 1 |
Load type | LEDi lamp 0...250 W 20 A/16 AX |
Motor M-rating | M80 AS3133 |
Installtion Type | Flush |
Rated Current | 20 A/16 AX |
Width | 148mm |
Cut-out Dimensions | 93 x 50mm |
