Learn more by watching our Clipsal 1042PA-ZB | Solis 2 Gang Horizontal Switch 20A/16AX | Matte Black video.
Additional related video.

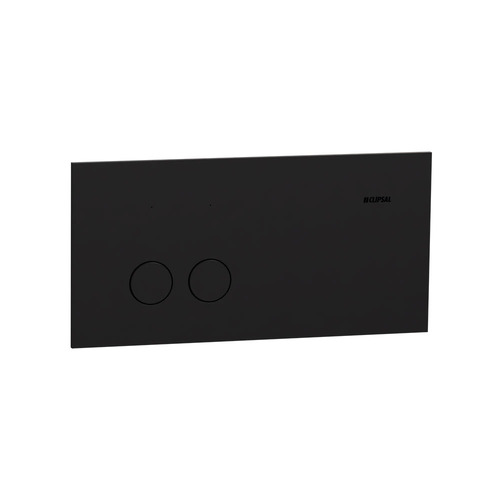

The Clipsal 1042PA-ZB Solis 2 Gang Switch in Matte Black perfectly balances functionality and style, making it ideal for residential, commercial, and hotel settings. Designed for flush mounting, the switch features a matte black finish that complements modern interiors with a clean, minimalist look.
This 2-gang push-button switch provides convenient 1-pole 1/2-way control, ensuring reliable performance with a 20A/16AX current rating and 230/240VAC operational voltage. The screw terminal design ensures secure connections for larger wires, reducing the risk of loose connections. Intended for horizontal installation only, the Clipsal Solis 2 Gang Switch offers practical functionality with a sleek, elegant design, making it a top choice for any space.
Q: What is the rated current and voltage for this switch?
A: The switch is rated for 20A/16AX at 230/240VAC, 50Hz.
Q: How many circuits can this switch control?
A: This 2-gang switch is designed to control two separate circuits.
Q: What material is used for the construction of this switch?
A: The switch is made from high-quality plastic with a matte black finish.
Q: Is this switch suitable for vertical installation?
A: No, this switch is designed for horizontal installation only.
(1042PA-ZB)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electrical
Commercial Use: 10 Year Mechanical and 7 Year Electrical
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Range | Clipsal Solis |
| Product brand | Clipsal |
| Product or component type | Switch |
| Assembly Type | Complete product |
| Outlet standard deviation | Australian/New Zealand |
| Colour tint | Matte black |
| Number of gangs | 2 gang |
| [Ue] rated operational voltage | 230/240 V |
| Network type | AC |
| Network frequency | 50 Hz |
| Rated current | 20 A/16 AX |
| Control type | Push-button |
| Connections - terminals | Screw terminals |
| Installation Type | Flush |
| Number Of Switches | 2 |
| Material | Plastic |
| Installation direction | Horizontal |
| Surface treatment | Painted |
| Load type | LED lamp 0...250 W 20 A/16 AX |
| Terminals Capacity | 4 x 1.5...3 x 2.5 mm² |
| Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
| Wire stripping length | 10 mm |
| Mounting Type | Screw |
| Cover Thickness | 4.5 mm |
| Mounting Centers | 84 mm |
| Cut-out dimensions | 93 x 50 mm |
| Product certifications | RCM |
| Surface finish | Matte |
| Height | 74 mm |
| Width | 148 mm |
| Depth | 45.5 mm |
| Embedding depth | 41 mm |
| Motor M-rating | AS3133 M80 |
| Switch function | 1-pole 1/2-way |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 1042PA-ZB |
| Barcode # | 3606487057635 |
| TYPE | VALUE |
|---|---|
| Type | Switch |
| Brand | Clipsal |
| Range | Clipsal Solis |
| Colour | Matte Black |
| Motor M-rating | M80 AS3133 |
| Cut-out Dimensions | 93 x 50mm |
| Rated Operational Voltage | 230/240 V |
| Installtion Type | Flush |
| Assembly Type | Complete Product |
| Control Type | Push Button |
| Rated Current | 20 A/16 AX |
| Height | 74mm |
| Number of gangs | 2 |
| Width | 148mm |
| Depth | 45.5mm |
| Load type | LEDi lamp 0...250 W 20 A/16 AX |
| Material | Plastic |
