Learn more by watching our Clipsal 1044TA-LB | Solis T Series 4 Gang Switch 20A/16AX | Living Brass video.
Additional related video.

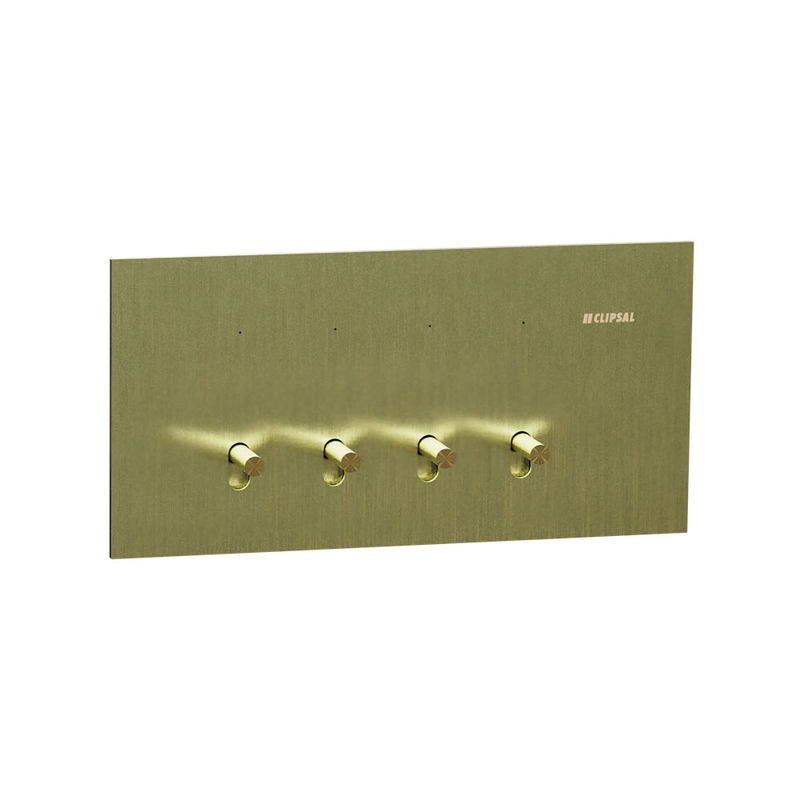

The Clipsal 1044TA-LB Solis T Series 4 Gang Switch in Living Brass combines functionality with elegant design, making it ideal for homes, businesses, and hotels. This 4-gang toggle switch offers convenient 1-pole 1/2-way control, allowing you to manage multiple circuits with ease. Crafted from high-quality brass, this switch offers durability along with a sleek, sophisticated finish.
Designed for horizontal flush mounting, this switch provides a streamlined, minimalist look that enhances any modern interior.It is rated for 20A/16AX at 230/240VAC, ensuring reliable and safe operation. The screw terminal design secures connections, reducing the risk of loose wires over time.
Q: What is the rated current and voltage for this switch?
A: The switch is rated for 20A/16AX at 230/240VAC, 50Hz.
Q: How many circuits can this switch control?
A: This 4-gang switch is designed to control multiple separate circuits.
Q: What material is used for the construction of this switch?
A: The switch is made from high-quality brass with a metallic finish.
Q: Is this switch suitable for vertical installation?
A: No, this switch is designed for horizontal installation only.
(1044TA-LB)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electrical
Commercial Use: 10 Year Mechanical and 7 Year Electrical
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Range | Clipsal Solis T Series |
Product brand | Clipsal |
Product or component type | Switch |
Assembly Type | Complete product |
Outlet standard deviation | Australian/New Zealand |
Colour tint | Living brass |
Number of gangs | 4 gang |
[Ue] rated operational voltage | 230/240 V |
Network type | AC |
Network frequency | 50 Hz |
Rated current | 20 A/16 AX |
Control type | Toggle switch |
Connections - terminals | Screw terminals |
Installation Type | Flush |
Number Of Switches | 4 |
Material | Brass |
Installation direction | Horizontal |
Surface treatment | Metallic |
Load type | LED lamp 0...250 W 20 A/16 AX |
Terminals Capacity | 4 x 1.5...3 x 2.5 mm² |
Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
Wire stripping length | 10 mm |
Mounting Type | Screw |
Cover Thickness | 3.6 mm |
Mounting Centers | 84 mm |
Cut-out dimensions | 93 x 50 mm |
Product certifications | RCM |
Surface finish | Brass finish |
Height | 74 mm |
Width | 148 mm |
Depth | 56 mm |
Embedding depth | 41 mm |
Motor M-rating | AS3133 M80 |
Switch function | 1-pole 1/2-way |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 1044TA-LB |
Barcode # | 3606487057857 |
TYPE | VALUE |
---|---|
Type | Switch |
Brand | Clipsal |
Range | Clipsal Solis T Series |
Colour | Living Brass |
Switch Fucntion | 1 Pole 1/2-Way |
Motor M-rating | M80 AS3133 |
Cut-out Dimensions | 93 x 50mm |
Rated Operational Voltage | 230/240 V |
Installtion Type | Flush |
Assembly Type | Complete Product |
Control Type | Toggle Switch |
Rated Current | 20 A/16 AX |
Height | 74mm |
Number of gangs | 4 |
Width | 148mm |
Depth | 56mm |
Load type | LEDi lamp 0...250 W 20 A/16 AX |
Material | Metallic |
