Learn more by watching our Clipsal 1044TA-PT | Solis T Series 4 Gang Switch 20A/16AX | Platinum video.
Additional related video.

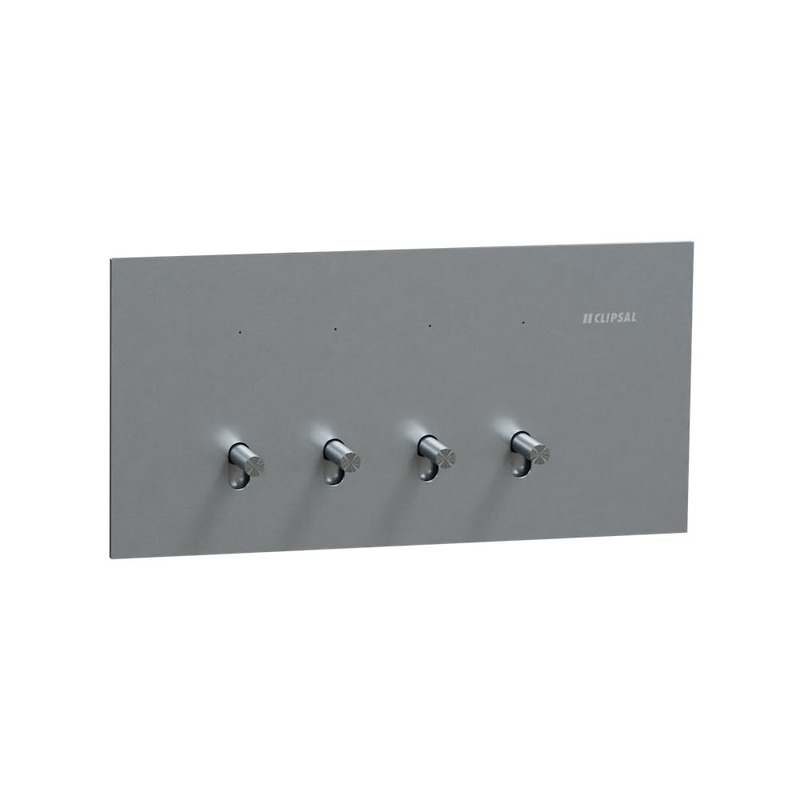

The Clipsal 1044TA-PT Solis T Series 4 Gang Switch in Platinum combines functionality with elegant design, making it ideal for homes, businesses, and hotels. This 4-gang toggle switch offers convenient 1-pole 1/2-way control, allowing you to manage multiple circuits with ease. Crafted from high-quality aluminium, this switch offers durability along with a sleek, sophisticated finish.
Designed for horizontal flush mounting, this switch provides a streamlined, minimalist look that enhances any modern interior.It is rated for 20A/16AX at 230/240VAC, ensuring reliable and safe operation. The screw terminal design secures connections, reducing the risk of loose wires over time.
Q: What is the rated current and voltage for this switch?
A: The switch is rated for 20A/16AX at 230/240VAC, 50Hz.
Q: How many circuits can this switch control?
A: This 4-gang switch is designed to control multiple separate circuits.
Q: What material is used for the construction of this switch?
A: The switch is made from high-quality aluminium with a metallic finish.
Q: Is this switch suitable for vertical installation?
A: No, this switch is designed for horizontal installation only.
(1044TA-PT)
Warranty starts from Invoice Date
Domestic Use: 10 Year Mechanical and 7 Year Electrical
Commercial Use: 10 Year Mechanical and 7 Year Electrical
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Range | Clipsal Solis T Series |
| Product brand | Clipsal |
| Product or component type | Switch |
| Assembly Type | Complete product |
| Outlet standard deviation | Australian/New Zealand |
| Colour tint | Platinum |
| Number of gangs | 4 gang |
| [Ue] rated operational voltage | 230/240 V |
| Network type | AC |
| Network frequency | 50 Hz |
| Rated current | 20 A/16 AX |
| Control type | Toggle switch |
| Connections - terminals | Screw terminals |
| Installation Type | Flush |
| Number Of Switches | 4 |
| Material | Aluminium |
| Installation direction | Horizontal |
| Surface treatment | Metallic |
| Load type | LED lamp 0...250 W 20 A/16 AX |
| Terminals Capacity | 4 x 1.5...3 x 2.5 mm² |
| Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
| Wire stripping length | 10 mm |
| Mounting Type | Screw |
| Cover Thickness | 3.6 mm |
| Mounting Centers | 84 mm |
| Cut-out dimensions | 93 x 50 mm |
| Product certifications | RCM |
| Surface finish | Aluminum |
| Height | 74 mm |
| Width | 148 mm |
| Depth | 56 mm |
| Embedding depth | 41 mm |
| Motor M-rating | AS3133 M80 |
| Switch function | 1-pole 1/2-way |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 1044TA-PT |
| Barcode # | 3606487102038 |
| TYPE | VALUE |
|---|---|
| Type | Switch |
| Brand | Clipsal |
| Range | Clipsal Solis T Series |
| Colour | Platinum |
| Switch Fucntion | 1 Pole 1/2-Way |
| Motor M-rating | M80 AS3133 |
| Cut-out Dimensions | 93 x 50mm |
| Rated Operational Voltage | 230/240 V |
| Installtion Type | Flush |
| Assembly Type | Complete Product |
| Control Type | Toggle Switch |
| Rated Current | 20 A/16 AX |
| Height | 74mm |
| Number of gangs | 4 |
| Width | 148mm |
| Depth | 56mm |
| Load type | LEDi lamp 0...250 W 20 A/16 AX |
| Material | Metallic |
