        Description

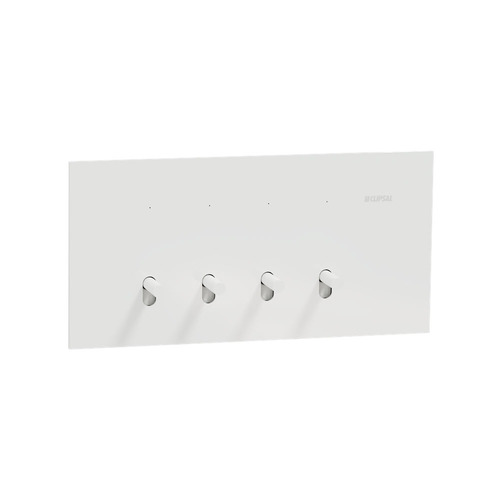

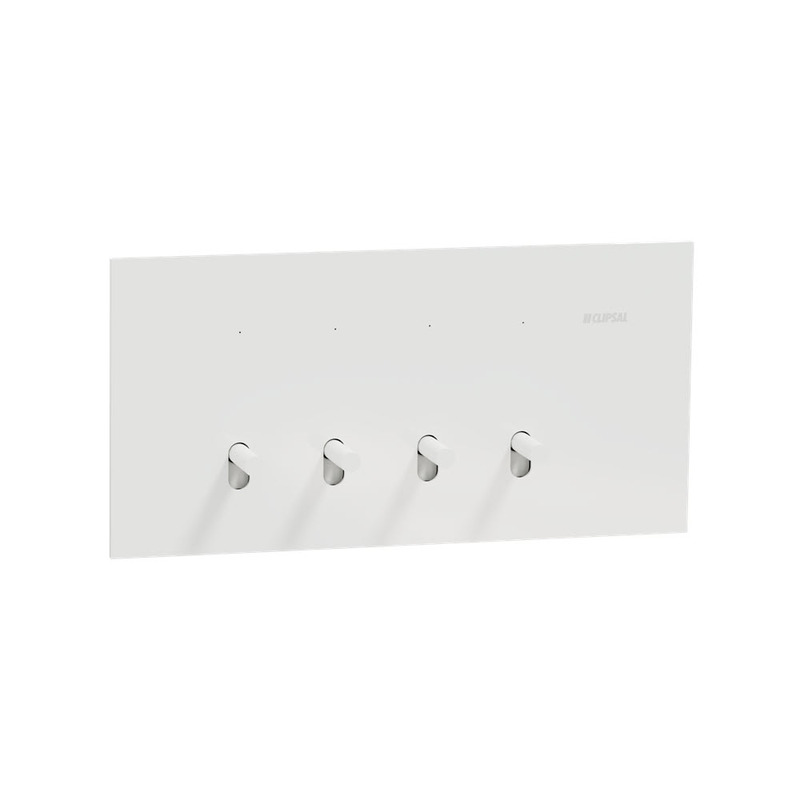

        Clipsal 1044TA-WC | Solis T Series 4 Gang Switch 20A/16AX | White Ceramic

        The Clipsal 1044TA-WC Solis T Series 4 Gang Switch in White Ceramic combines functionality with elegant design, making it ideal for homes, businesses, and hotels. This 4-gang toggle switch offers convenient 1-pole 1/2-way control, allowing you to manage multiple circuits with ease. Crafted from high-quality ceramic, this switch offers durability along with a sleek, sophisticated finish.

        Clipsal Solis T Series Light Switch Features:

        • Dual Circuit Control: 4 Gang toggle switch for managing multiple circuits with 1-pole 1/2-way control.
        • Premium Finish: Adds elegance and durability to any space.
        • Secure Connections: Screw terminals ensure reliable and safe connections for larger wires.
        • Flush Mounting: Designed for horizontal installation, offering a sleek and modern profile.

        Designed for horizontal flush mounting, this switch provides a streamlined, minimalist look that enhances any modern interior.It is rated for 20A/16AX at 230/240VAC, ensuring reliable and safe operation. The screw terminal design secures connections, reducing the risk of loose wires over time.

        Clipsal 1044TA-WC FAQ:

        Q: What is the rated current and voltage for this switch?
        A: The switch is rated for 20A/16AX at 230/240VAC, 50Hz.

        Q: How many circuits can this switch control?
        A: This 4-gang switch is designed to control multiple separate circuits.

        Q: What material is used for the construction of this switch?
        A: The switch is made from high-quality ceramic with a polished finish.

        Q: Is this switch suitable for vertical installation?
        A: No, this switch is designed for horizontal installation only.

        (1044TA-WC)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 10 Year Mechanical and 7 Year Electrical
        Commercial Use: 10 Year Mechanical and 7 Year Electrical
        Warranty Method: Clipsal in home warranty

        Features
        Specification Details
        Range Clipsal Solis T Series
        Product brand Clipsal
        Product or component type Switch
        Assembly Type Complete product
        Outlet standard deviation Australian/New Zealand
        Colour tint White Ceramic
        Number of gangs 4 gang
        [Ue] rated operational voltage 230/240 V
        Network type AC
        Network frequency 50 Hz
        Rated current 20 A/16 AX
        Control type Toggle switch
        Connections - terminals Screw terminals
        Installation Type Flush
        Number Of Switches 4
        Material Ceramic
        Installation direction Horizontal
        Surface treatment Polished
        Load type LED lamp 0...250 W 20 A/16 AX
        Terminals Capacity 4 x 1.5...3 x 2.5 mm²
        Screwdriver shape Philips No 2
        Square drive no 1 (SQ1)
        Wire stripping length 10 mm
        Mounting Type Screw
        Cover Thickness 3.6 mm
        Mounting Centers 84 mm
        Cut-out dimensions 93 x 50 mm
        Product certifications RCM
        Surface finish Polished
        Height 74 mm
        Width 148 mm
        Depth 56 mm
        Embedding depth 41 mm
        Motor M-rating AS3133 M80
        Switch function 1-pole 1/2-way
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 1044TA-WC
        Barcode # 3606487058038
        Shipping Weight 0.3000kg
        Shipping Width 0.160m
        Shipping Height 0.080m
        Shipping Length 0.080m
        Shipping Cubic 0.001024000m3
        TYPE VALUE
        Type Switch
        Brand Clipsal
        Range Clipsal Solis T Series
        Colour White Ceramic
        Switch Fucntion 1 Pole 1/2-Way
        Motor M-rating M80 AS3133
        Cut-out Dimensions 93 x 50mm
        Rated Operational Voltage 230/240 V
        Installtion Type Flush
        Assembly Type Complete Product
        Control Type Toggle Switch
        Rated Current 20 A/16 AX
        Height 74mm
        Number of gangs 4
        Width 148mm
        Depth 56mm
        Load type LEDi lamp 0...250 W 20 A/16 AX
        Material Ceramic
