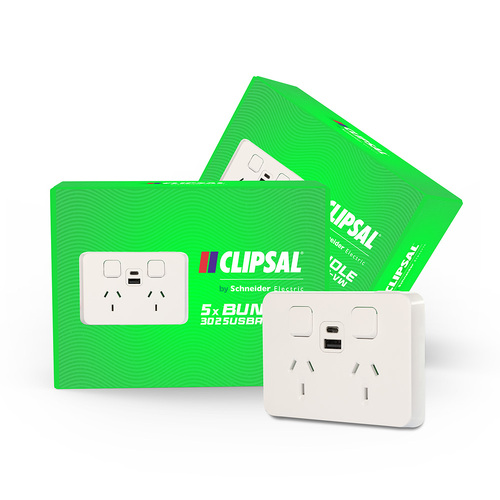

Clipsal 3025USBAC-VW-5Bundle | Iconic Twin Socket Switched Horizontal 1xEx2 USB Charger A+C | 5 Bundle
Learn more by watching our Clipsal 3025USBAC-VW-5Bundle | Iconic Twin Socket Switched Horizontal 1xEx2 USB Charger A+C | 5 Bundle video.
The Clipsal 3025USBAC-VW-5Bundle Iconic Twin Socket with USB A+C Charger offers a versatile and modern solution for both residential and commercial installations. This bundle includes five units of the Iconic Double Power Point, each featuring dual USB charging ports—one Type A (2.4A) and one Type C (3.0A, max 3.1A). The sleek, slim design ensures these sockets blend seamlessly into any environment, making them perfect for modern interiors.
Each socket comes with built-in over-temperature, overload, and short-circuit protection, safeguarding your devices during charging. The sockets are designed for deep wall boxes with a depth from the grid of 55mm, and a maximum of two units can be installed per plate. This 5-pack bundle provides a convenient solution to reduce clutter from bulky chargers while freeing up power points for other uses.
Q: What USB types are included in this power point?
A: This power point includes one Type A USB (2.4A) and one Type C USB (3.0A, max 3.1A) for charging.
Q: Is this product safe for charging sensitive electronics?
A: Yes, it features built-in over-temperature, overload, and short-circuit protection to ensure safe charging.
Q: What is the required depth for wall box installation?
A: The socket requires a 55mm deep wall box for proper installation.
Q: How many units are included in this bundle?
A: This bundle includes five units of the Iconic Twin Socket with USB A+C Charger.
(3025USBAC-VW-5Bundle)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Range | Clipsal Iconic |
| Product or component type | Switched socket |
| Device presentation | Complete product |
| Outlet poles configuration | 2P + E with shutter |
| Device mounting | Flush |
| Number of power socket outlets | 2 |
| Number of rocker | 2 |
| Range compatibility | Clipsal Iconic |
| Outlet standard description | With earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Ground lug position | Straight 180° position |
| Device composition | 2 USB charger |
| Fixing mode | By screw |
| Installation direction | Horizontal |
| Surface finish | Matt |
| Type of packing | Polybag |
| Quantity per set | Set of 10 |
| Sale per indivisible quantity | 1 |
| Rated current | 10 A at 250 V AC 50 Hz |
| Connections - terminals | 3 screw terminals |
| Screwdriver shape | Philips No 2 |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for stranded cable(s) |
| Wire stripping length | 16 mm |
| Material | PC (polycarbonate): cover frame |
| Height | 120 mm |
| Width | 78 mm |
| Depth | 55 mm |
| Embedding depth | 55 mm |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 3025USBAC-VW-5Bundle |
| TYPE | VALUE |
|---|---|
| Type | Power Points |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal Iconic |
| Colour | Vivid White |
| Rated Current (A) | 10 |
| Height (mm) | 78 |
| Width (mm) | 120 |
| Depth (mm) | 55 |
| Complete / Skin Only / Grid Plate Only | Complete |
| Number Of Outlets | 2 |
| Additional Feature | USB Outlet |
| Additional Feature | C-USB Outlet |
| Quantity | 5 |
