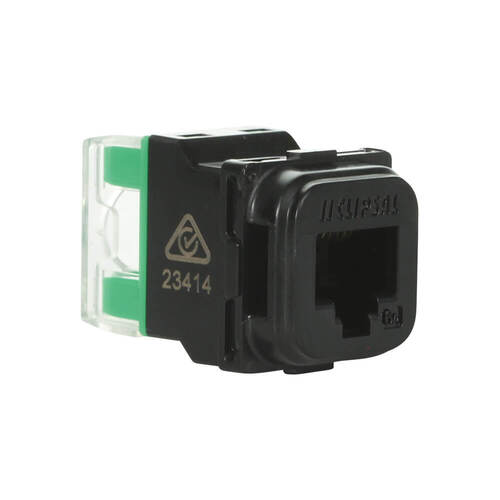

Name: Clipsal 40RJ45SMA6AC-BK | Actassi Connector RJ45 CAT6A Unshielded | Black
Brand: Generic
SKU: 40RJ45SMA6AC-BK
Price: 15.35 AUD
Availability: InStock

Clipsal 40RJ45SMA6AC-BK | Actassi Connector RJ45 CAT6A Unshielded | Black

Description:

The Clipsal 40RJ45SMA6AC-BK is part of the renowned Actassi range, a modular jack designed to provide superior connectivity for high-speed networks. This unshielded RJ45 CAT6A connector is ideal for electricians and network professionals who require reliable and efficient data transmission.

With a contact resistance of 20 mOhm and an initial insulation resistance of over 500 MOhm at 100 V DC, it ensures minimal signal interference and optimal performance. The connector supports a wide range of protocols, including 10GBASE-T and various Power over Ethernet (PoE) standards, making it versatile for different network applications.

Its robust construction features 8 pins of copper alloy and gold plating, conforming to IEC 60603-7 standards, ensuring durability up to 750 cycles. The connector's two-piece design with black housing and a transparent top cover offers a sleek appearance, while the punch-down and quick termination tools facilitate easy installation.

With a transmission frequency range of 1 to 500 MHz and compatibility with UTP cables, the Clipsal Actassi RJ45 CAT6A connector is a top choice for sophisticated network setups in the Asia Pacific region.

Features:

High-Quality Connectivity: Unshielded RJ45 CAT6A for efficient data transmission.

Durable Design: Gold-plated copper alloy pins, withstanding up to 750 cycles.

Versatile Protocols: Supports 10GBASE-T, PoE, and more.

Sleek Appearance: Black housing with a transparent top cover.

Wide Frequency Range: Suitable for 1–500 MHz transmission frequencies.

Robust Construction: Made for longevity and reliability in network setups.

FAQ:

Q: What type of networks is the Clipsal 40RJ45SMA6AC-BK suitable for?
A: It's ideal for high-speed networks requiring CAT6A connectivity, including commercial and residential applications.

Q: Can this connector support Power over Ethernet?
A: Yes, it's compatible with various PoE standards, providing versatile connectivity options.

Q: Is the connector easy to install?
A: Absolutely, it's designed for straightforward installation with punch down and quick termination tools.

Product Specifications

Specification

Details

Contact resistance

20 mOhm

Insulation resistance

Initial insulation resistance: > 500 MOhm at 100 V DC

Connector type

RJ45

AWG gauge

AWG 24...AWG 23

Durability

750 cycles

Contact pins

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Tool type

Punch down tool, Quick termination tool

Cable outer diameter

0.9…1.4 mm

Compatible LAN cable types

UTP

Communication network category

Supported applications

10GBASE-T

Protocols

PoE+ (Power over Ethernet),
PoE 15W (Power over Ethernet),
PoE+ 30W (Power over Ethernet Plus),
4PPoE 100W (Power over Ethernet)

Connections - terminals

IDC

Product compatibility

RJ45 plug

Transmission frequency

1…500 MHz

Type of footprint

40 mech

Height

22 mm

Length

36 mm

Width

16 mm

Net weight

0.008 kg

Operational temperature range

-10…60 °C

Ambient air temperature for storage

-10…60 °C

Climatic category

40/070/21 (21 days)

Flame retardance

UL94-V0

Product certifications

UL listed, RCM

Standards

ANSI/TIA-568-C.2,
IEC 60603-7-5,
ISO/IEC 11801:2011 Ed.2.2,
AS/NZS 3080:2003,
UL 1863,
IEC 60512-99-001,
IEC 60512-99-002

TYPE

VALUE

Type

Data Mechanism

Brand

Clipsal by Schneider Electric

Colour

Black

SKU	40RJ45SMA6AC-BK
Barcode #	9311554812157
Package Weight	0.010kg
Package Width	0.040m
Package Height	0.040m
Package Length	0.030m
