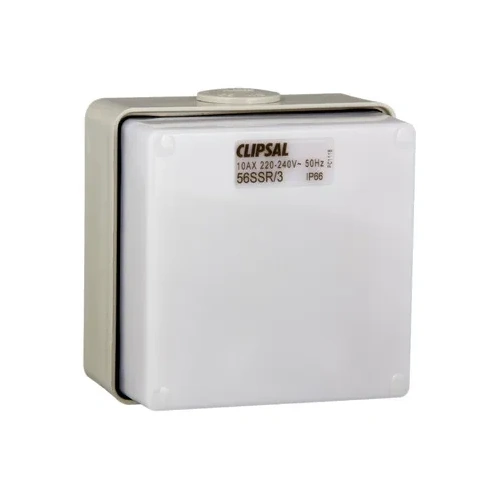

        Clipsal 56SSR-3GY | 3 Wire Sunset Switch | IP66

        The Clipsal 56SSR-3GY is a 3-wire sunset switch from the 56 Series, designed for automatic lighting control based on ambient daylight. With an adjustable range of 20 to 500 lux, it provides dusk-to-dawn operation without manual switching.

        Built for outdoor use, it features a tough IP66-rated enclosure, durable polycarbonate and PVC construction, and supports both horizontal and vertical mounting. Rated 250V AC, 10A, it suits a variety of commercial and industrial setups, while complying with AS/NZS and IEC standards for safety.

        Clipsal 56SSR-3GY Features

        • Automatic light control: Switches lights on/off based on sunlight, adjustable between 20 to 500 lux.
        • IP66 protection rating: Weatherproof for tough outdoor environments.
        • Durable construction: Polycarbonate and PVC build for long-lasting use.
        • Flexible installation: Mount horizontally or vertically as needed.
        • Standards compliant: Meets AS/NZS 3133, AS/NZS 3100, and IEC 60669-2-1.

        56SSR-3GY FAQ

        Q: What does the sunset switch control?
        A: It automatically controls lighting based on daylight levels.

        Q: Can it be installed outdoors?
        A: Yes, the IP66 rating makes it ideal for outdoor use.

        Q: What is the adjustable light range?
        A: Sensitivity is adjustable between 20 and 500 lux.

        (56SSR-3GY)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 56SSR-3GY
        Barcode # 9311554740689
        TYPE VALUE
        Type Sunset Switch
        Brand Clipsal by Schneider Electric
        Material PVC (polyvinyl chloride) Polycarbonate
        IP Rating IP66
        Dimensions (mm) 101x101x70mm
        Amperage 10A
        Rated Operational Voltage 250 V AC 50 Hz
        Cable Entry 1 rear entry of 20-25 mm diameter
