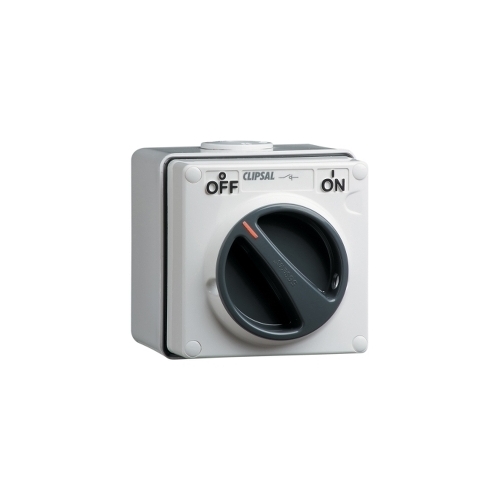

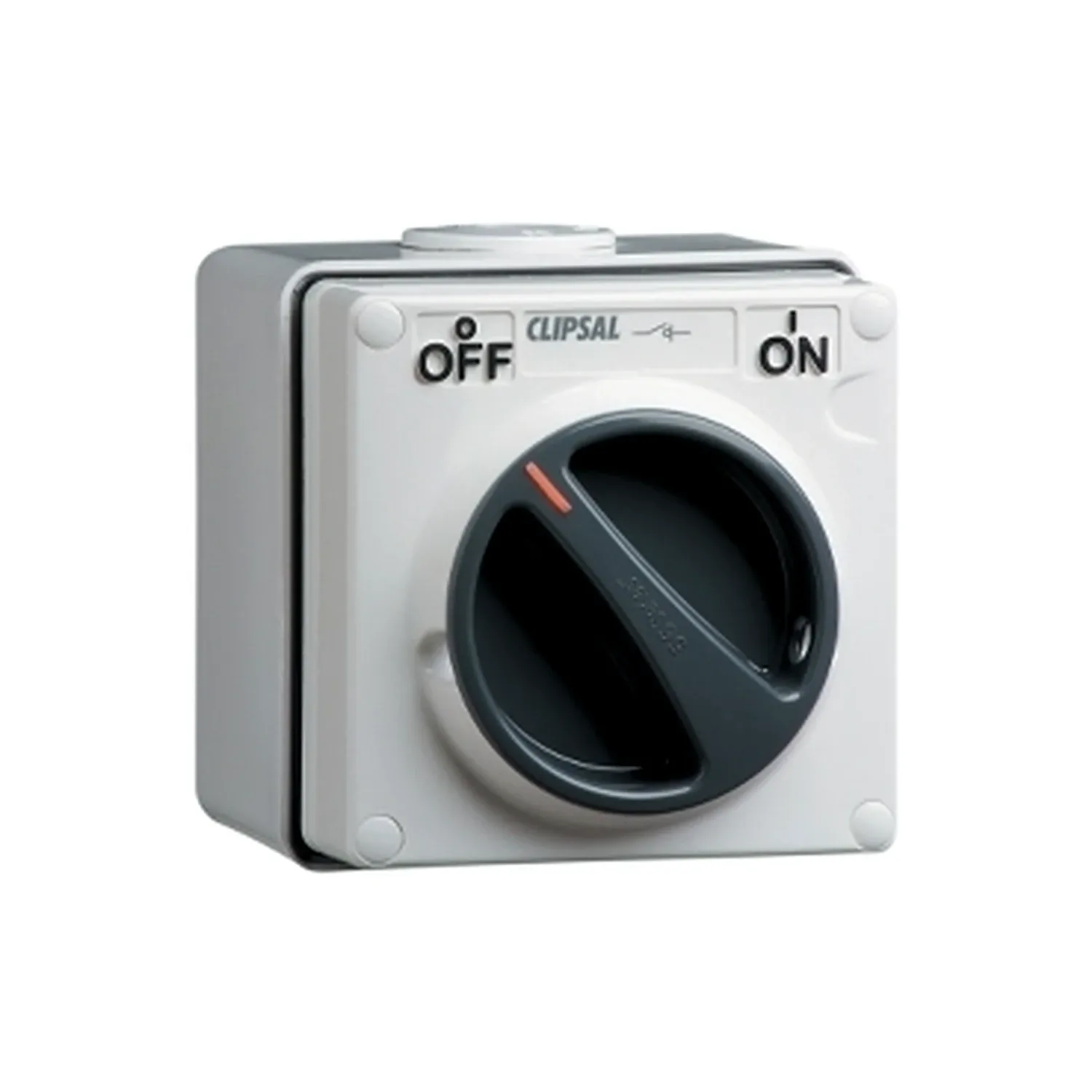

Clipsal 56SW132-GY | 56 Series Surface Switch IP66 1 pole 250V 32A | Grey
The Clipsal 56SW132-GY 56 Series Surface Switch is a reliable and durable solution for controlling electrical circuits in industrial and commercial settings. Rated at 250V and 32A, this 1 pole switch is built for demanding environments. Its IP66 rating offers full protection against dust and powerful water jets, making it perfect for outdoor and harsh conditions.
This surface switch features a rotary knob for straightforward operation and comes with a robust polycarbonate body designed to resist impact and tough environments. It also includes a padlocking option for enhanced security. The switch is easy to install, making it an efficient choice for electricians in various industrial applications.
Q: Can this switch be used outdoors?
A: Yes, with its IP66 rating, it is fully weatherproof and suitable for outdoor use.
Q: What is the rated voltage and current?
A: It operates at 250V and is rated for 32A, making it suitable for various industrial applications.
Q: Does this switch offer a locking option?
A: Yes, it has provisions for up to two padlocks for added security.
(56SW132-GY)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
| Specification | Details |
|---|---|
| Product brand | Clipsal |
| Product or component type | Switch |
| Assembly Type | Basic element with full cover plate |
| Device application | Control |
| Handle colour | Grey |
| Suitability for isolation | Yes |
| Colour | Cover: grey |
| Poles description | 1P |
| [Icm] rated short-circuit making capacity | 1 kA |
| Control type | Rotary knob |
| Number of poles | 1 |
| Installation Type | Surface |
| Material | PC (polycarbonate) |
| Tightening torque | 0.8 N.m |
| Local signalling | Without |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Rated current | 32 A |
| Marking | ON-OFF |
| Marking location | Marking on surface |
| Mounting Type | By screws |
| Breaking capacity | 32 kA |
| Targeted country | Australia |
| Height | 107 mm |
| Width | 101 mm |
| Depth | 108 mm |
| Net weight | 0.5 kg |
| Motor M-rating | AS3133 M180 at 250 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Icw] rated short-time withstand current | 1.2 kA for 1 s |
| Switch function | 1-pole |
| Rotary handle padlocking | 2 padlocks 8 mm |
| Ambient air temperature for operation | -25…75 °C |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3133 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | 56SW132-GY |
| Barcode # | 9311554203825 |
| Shipping Weight | 0.5100kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.120m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.001452000m3 |
| TYPE | VALUE |
|---|---|
| Type | Switch |
| Brand | Clipsal by Schneider Electric |
| Range | 56 Series |
| Colour | Grey |
| Rated Current (A) | 32A |
| Number of Poles | 1 |
| IP Rating | IP66 |
| Voltage (V) | 250V AC |
