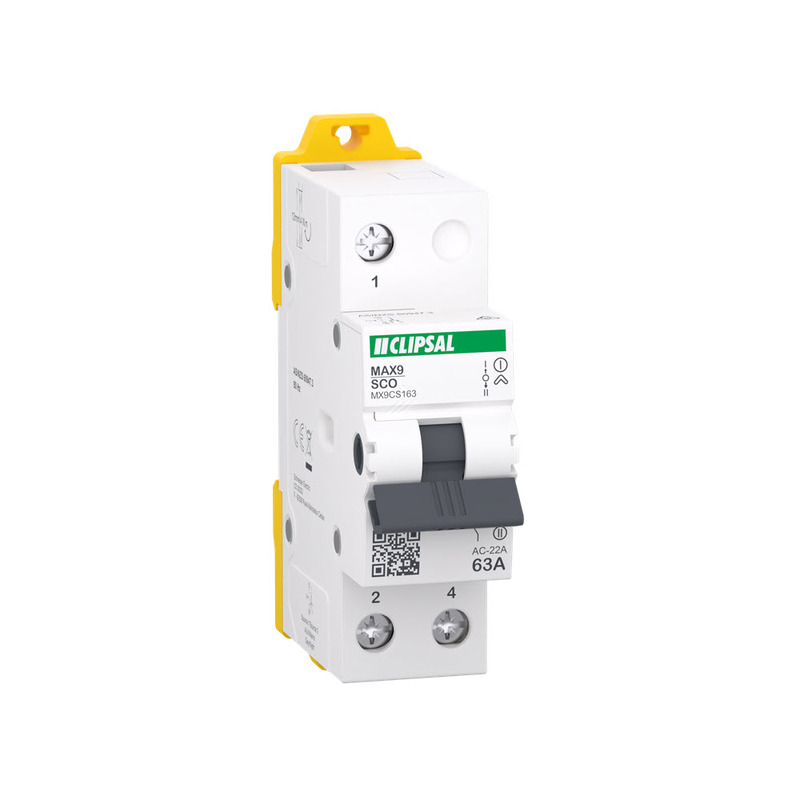

        CLIPSAL MX9CS163 | Changeover Switch 1 Pole 63 Amp | 240V

        The MAX9 Changeover Switches provide the perfect solution to switch manually between two power supplies or circuits.

        What is a Changeover Switch?

        A change-over switch shifts a house or business's electricity supply from the main grid to a generator during a power outage. It connects to the main power grid, the generator, and the house wiring. When you flip the switch, all the power in that circuit shifts to either the grid or the generator. This prevents the power from flowing back and mixing between the grid and the generator.

        Changeover Switch Specifications

        • Rated Current: 63 A
        • Voltage: 240V
        • Pole: 1
        • Standards: Conforms to AS/NZS 60947.3
        • Positions: 3 (I-0-II) with Center OFF position
        • Utilization Category: AC-22 A
        • Frequency: 50/60 Hz
        • Connection Type: Screw
        • Mounting: DIN rail mount for up to 4 isolators
        • Applications:
          • Night, off, and day switching of luminaires where daylight supplements internal lighting.
          • Incoming and outgoing screw-down terminals for copper conductors up to 16 sq mm.
          • Auto, off, and manual switching of machines.
          • Auxiliary, off, and mains switching of small standby generators.

        (MX9CS163)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9CS163
        Barcode # 3606485810843
        Shipping Weight 0.1200kg
        Shipping Width 0.075m
        Shipping Height 0.026m
        Shipping Length 0.100m
        Shipping Cubic 0.000195000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 63
        Height (mm) 85
        Width (mm) 26.25
        Depth (mm) 72
        Mounting Din Rail
        Voltage (V) 240
        Switch Type Changeover Switch
        Number of Poles 1
        IP Rating IP20 ( IP40 Enclosed )
