        Clipsal MX9E2415F | MAX9 Enclosure 4 row 15 Mod Flush
        $313.50 $285.00 ex. GST
        Video

        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs
        Description

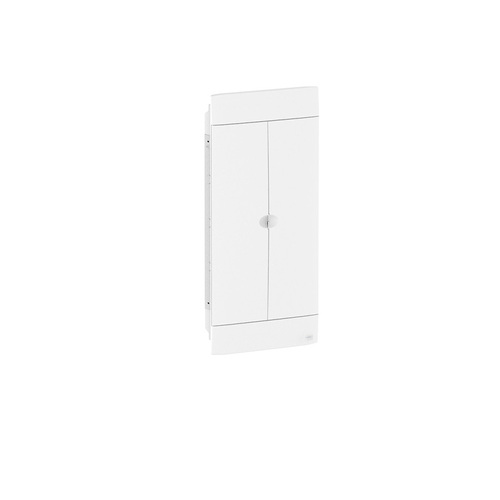

        Clipsal MX9E2415F | MAX9 Enclosure 4 row 15 Mod Flush

        MAX9 switchboard enclosure is flush mounted. The rated current is 100A. This switchboard is composed of 4 rows of 15 modules of 18mm (60 modules total). It can accomodate all types of modular Clipsal devices. It has plain double door with door opening on both left and right The provided equipements are earthing bar, neutral bar, circuit identification label and blanking plate. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. It can be mounted on DIN rail for modular installation. The degree of protection is IP40 in an enclosure. This switchboard comply with AS/NZS 61439-3 and supports compliance to AS/NZS 3000 standards. The switchboard colour is white electric (RAL9003) This switchboard is complies with AS/NZS 61439-3 and AS/NZS 3000 standards.

        (MX9E2415F)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9E2415F
        Barcode # 9311554814540
        Shipping Weight 6.7320kg
        Shipping Width 0.389m
        Shipping Height 0.105m
        Shipping Length 0.820m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Equivalent Max 4 Reference 4FCC60-WE
