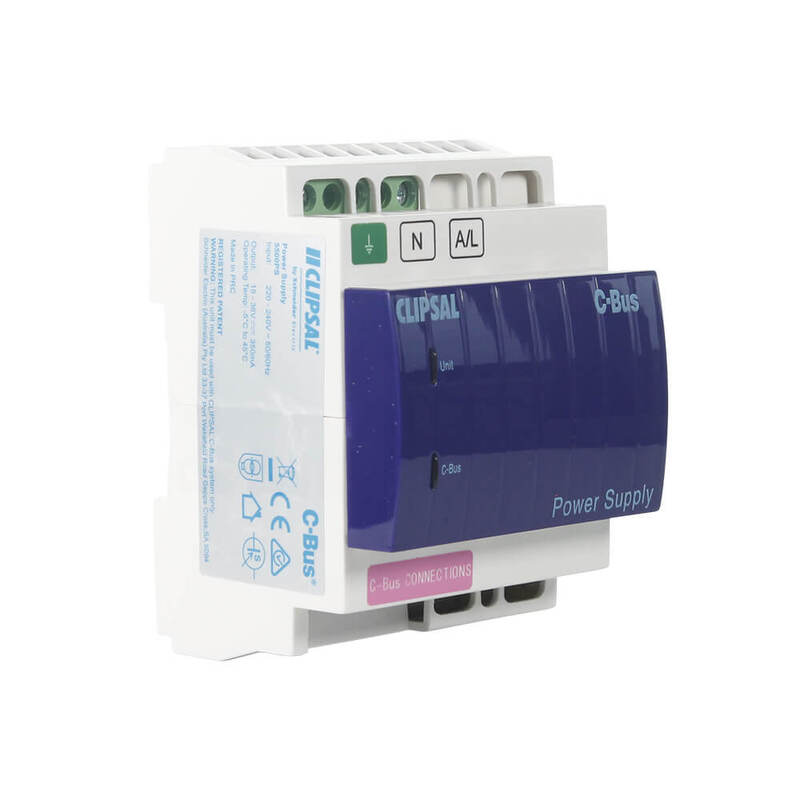

Name: Clipsal Schneider 5500PS | C-Bus Din Rail Power Supply 350mA 250V
Brand: Clipsal by Schneider Electric
SKU: 5500PS
Price: 727.10 AUD
Availability: InStock

Clipsal Schneider 5500PS | C-Bus Din Rail Power Supply 350mA 250V

Description:

Discover the Clipsal Schneider 5500PS, a pivotal component in the C-Bus Control and Management System, engineered to deliver reliability and performance. This DIN-mounted power supply is a cornerstone for any sophisticated electrical network, offering a solid 250V, 350mA output tailored for demanding environments. The C-Bus network can support up to five power supply units, ensuring your setup remains well-powered. Its LED local signalling provides immediate status updates, enhancing maintenance efficiency.

Features:

DIN Rail Mounted for streamlined installation and system organization.

C-Bus Output Voltage of 36V DC to power your C-Bus network efficiently.

350mA Output Current with a safeguard of < 400mA short circuit current, ensuring reliability.

DC Output Resistance of 60kΩ @ 1kHz for consistent power delivery.

Compatibility with 220-240 V AC Supply at 50/60 Hz, accommodating a broad range of electrical systems.

LED Local Signalling for easy monitoring and diagnostics.

Designed to power up to 15(22mA) C-Bus Units, the maximum current a C-Bus network supports is 2000mA.

400mm CAT5E data cable included.

FAQ:

Q: Can the 5500PS handle short circuit situations?
A: Yes, it features an output short circuit current of less than 400mA for enhanced safety.

Q: What is the rated supply voltage for this power supply?
A: It operates on a rated supply voltage of 220-240 V AC, 50/60 Hz, suitable for a wide range of installations.

Q: How is the system status indicated?
A: The device includes an LED for local signalling, providing clear and immediate feedback on its operational status.

Q: What is the maximum number of 5500PS units that can be connected to a single C-Bus network?
A: Up to 5 units can be connected, with the total current from all power supplies not exceeding 2000mA.

Specification

Details

Nominal supply Voltage

220-240V AC

Frequency

50/60Hz

C-Bus Output Voltage

36V DC

C-Bus Output Current

≤350mA

Output short circuit current

<400mA

DC Output Resistance

60kΩ @1kHz

Electrical Isolation

3.75 kV

Max units per network

Warm-up

3 Sec

Operating Temperature

-5°C to 45°C

Operating Humidity

10 to 95%

Dimensions

72 x 92 x 63mm

Power Terminals

2 x 1.5mm²/1 x 2.5mm²

C-Bus Connections

2 x RJ45 Sockets

Standards

AS/NZ 61558-2-16, AS/NZS CISPR32, IEC 61204-3

TYPE

VALUE

Type

Din Power Supply

Brand

Clipsal by Schneider Electric

Din Rail

Yes

Brand	Clipsal by Schneider Electric
SKU	5500PS
Barcode #	9311554437053
Shipping Weight	0.3100kg
Shipping Width	0.115m
Shipping Height	0.100m
Shipping Length	0.160m
Shipping Cubic	0.001840000m3
