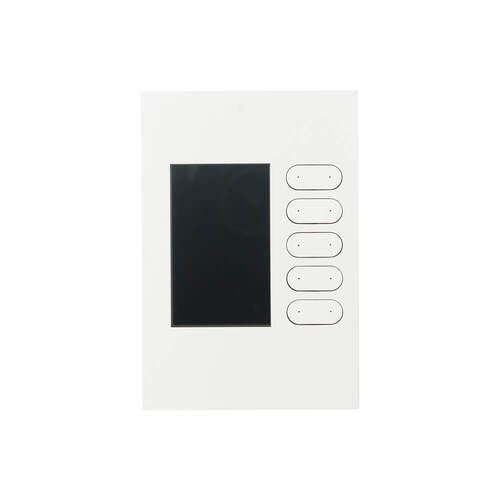

Name: Clipsal Schneider R5045EDLW-ZW | Saturn Zen SpaceLogic C-Bus Wall Plate | White
Brand: Clipsal by Schneider Electric
SKU: R5045EDLW-ZW
Price: 632.50 AUD
Availability: InStock

Clipsal Schneider R5045EDLW-ZW | Saturn Zen SpaceLogic C-Bus Wall Plate | White

Description:

Enhance your home's technology with the Clipsal Schneider R5045EDLW-ZW, a sophisticated member of the C-Bus Saturn Zen series. This wall plate is not just a control device; it's a central hub for managing your home's lighting, audio, blinds, fans, and more, all in an elegant Zen white finish. With five dual-action push buttons and a tri-colour LED status indicator, control is both intuitive and visually informed.

The centrepiece is a 2.8-inch colour TFT display showcasing load types, temperature, power consumption, and more across up to four pages. A proximity sensor ensures the display awakens upon your approach, making it not only smart but also energy efficient. Designed for both electricians and homeowners, this wall plate simplifies complex home automation tasks into straightforward, user-friendly interactions.

Features:

Elegant Zen White Cover Plate harmonizes with any interior design.

5 Dual-Action Push-Buttons for multi-functional control over your home's systems.

Tri-Colour LED Status Indicators offer immediate feedback on control actions.

Colour TFT Display presents vital information on a backlit 2.8-inch screen.

Versatile Functionality supports lighting, timer, audio, blind, fan speed, scene control, and more.

Proximity Sensor for energy-efficient display wake-up.

C-Bus Communication Protocol ensures seamless integration with your home automation system.

USB Port for Firmware Updates, keeping your device current and compatible.

Easy Installation with a mounting plate, flying lead, and screw fixing mode.

FAQ:

Q: What types of functions can be controlled with the R5045EDLW-ZW?
A: It controls lighting, timers, audio systems, blinds, fan speeds, scene settings, on/off switching, shutter, dimming, and page navigation.

Q: How does the local display work?
A: The backlit colour TFT display shows information like load type, temperature, power, date, time, and operating mode, enhancing user interaction.

Q: What is the power requirement for this wall plate?
A: It requires a supply voltage of 15 to 36 V DC and consumes a maximum of 32 mA.

Q: Can the firmware be updated?
A: Yes, firmware updates can be easily done through the USB port, ensuring the device stays up-to-date with the latest features and compatibility.

Specification

Details

Colour

Cover plate: zen white,
Grid: white

Provided equipment

Mounting plate, Fly lead

Control type

5 x push-button dual-action

Local signalling

Status: LED (tri-colour) on push-button

Switch application

Lighting, Timer, Audio, Blind control, Fan speed control, Scene control, On/Off switching, Shutter control, Dimming up/down control, Page navigation

Local display

Backlit LCD display

Display type

Colour TFT display

Display size

2.8 inch

Messages display capacity

Up to 4 pages

Information displayed

Load type, Temperature, Power, Date, Time, Operating mode

Number of outputs

16 in 4 page option,
5 in 1 page option

Function of module

Proximity sensor monitoring wake-up

Communication port protocol

C-Bus - 2 wires

[Us] rated supply voltage

15...36 V: DC

Maximum supply current

32 mA

Material

Plastic

Connector type

Mini USB port (rear)
Socket (rear) for C-Bus

Function available

Firmware update by USB

Product compatibility

LAN cable Cat. 5e

Electrical connection

Fly lead

Clamping connection capacity

0.2...1.5 mm²

Fixing mode

By screws

Mounting support

Wall

Width

83 mm

Height

123 mm

Depth

35 mm

Embedding depth

23.5 mm

Colour code

IP degree of protection

IP20

Ambient air temperature for operation

5…45 °C

TYPE

VALUE

Type

Wall Plate

Brand

Clipsal by Schneider Electric

Colour

White

Number of gangs

Brand	Clipsal by Schneider Electric
SKU	R5045EDLW-ZW
Barcode #	9311554774141
Shipping Weight	0.2800kg
Shipping Width	0.110m
Shipping Height	0.080m
Shipping Length	0.155m
Shipping Cubic	0.001364000m3
