Name: Clipsal Schneider RM17UBE15 | Modular 1-Phase Voltage Control Relay | 5A 65-260V AC/DC
Brand: Clipsal by Schneider Electric
SKU: RM17UBE15
Price: 264.00 AUD
Availability: InStock

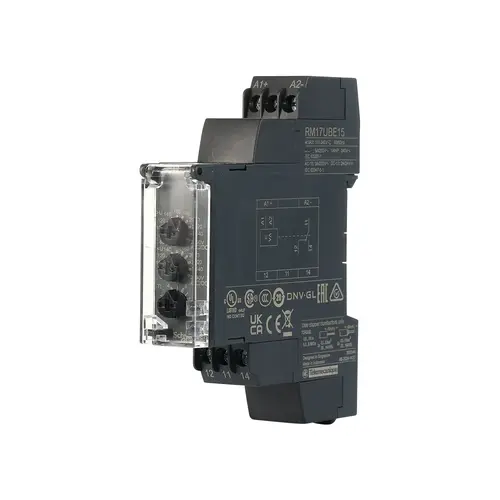

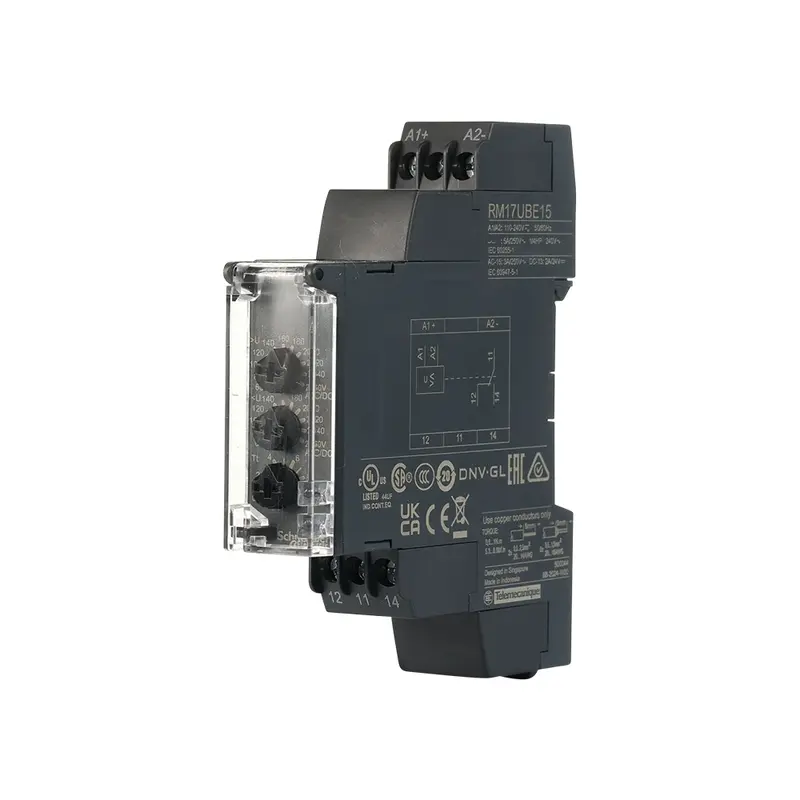

Clipsal Schneider RM17UBE15 | Modular 1-Phase Voltage Control Relay | 5A 65-260V AC/DC

The Clipsal Schneider RM17UBE15 is a modular 1-phase voltage control relay. This versatile relay monitors single-phase and DC supplies, providing reliable overvoltage and undervoltage detection to protect your electrical systems. With an adjustable time delay and a robust design, the RM17UBE15 ensures precise control and durability. Ideal for various applications, this voltage control relay is a valuable addition to any space.

Voltage Relay Control Features:

Overvoltage and Undervoltage Detection: Ensures reliable monitoring and protection of electrical systems.

Adjustable Time Delay: Customisable 0.1 to 10 seconds time delay for tailored operation.

Wide Measurement Range: Measures 65 to 260V AC/DC for versatile application.

High Switching Capacity: Capable of handling up to 1250 VA, providing robust performance.

Durable Construction: Built with self-extinguishing plastic housing for enhanced safety and longevity.

RM17UBE15 FAQ:

Q: What voltage range does the Clipsal Schneider RM17UBE15 cover?
A: The relay measures a voltage range from 65 to 260V AC/DC.

Q: Does the relay offer overvoltage and undervoltage detection?
A: Yes, it provides reliable overvoltage and undervoltage detection to protect your electrical systems.

Q: Can the time delay be adjusted?
A: Yes, the time delay can be adjusted from 0.1 to 10 seconds.

Q: What is the maximum switching capacity of the RM17UBE15?
A: The relay has a maximum switching capacity of 1250 VA.

Specification

Details

Range Of Product

Harmony Control Relays

Relay Type

Voltage control relay

Product Or Component Type

Voltage control relay

Product Specific Application

For single-phase and DC supply

Relay Name

RM17UBE

Relay Monitored Parameters

Overvoltage and undervoltage detection

Time Delay

Adjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault

Switching Capacity In Va

1250 VA

Measurement Range

65...260 V AC/DC

Contacts Type And Composition

1 C/O

Reset Time

1500 ms time delay

Maximum Switching Voltage

250 V AC/DC

Minimum

10 mA at 5 V DC

Maximum Switching Current

5 A AC/DC

Supply Voltage Limits

50…270 V AC/DC

Power Consumption In Va

0…3 VA AC

Maximum Power Consumption In W

1 W DC

Control Circuit Frequency

50...60 Hz +/- 10 %

Immunity To Microbreaks

20 ms

Output Contacts

1 C/O

Nominal Output Current

5 A

Hysteresis

3 % fixed of threshold setting

Measurement Accuracy

+/- 10 % of the full scale value

Polarity

Non reversible polarity on DC supply

Delay At Power Up

1000 ms DC, 500 ms AC

Maximum Measuring Cycle

150 ms measurement cycle as true rms value

Repeat Accuracy

+/- 0.5 % for input and measurement circuit, +/- 1 % for time delay

Measurement Error

< 1 % over the whole range with voltage variation, 0.2 %/°C with temperature variation

Quality Labels

Insulation Resistance

> 500 MOhm at 500 V DC conforming to IEC 60255-5, > 500 MOhm at 500 V DC conforming to IEC 60664-1

Operating Position

Any position without derating

Local Signalling

LED (green) for power ON, LED (yellow) for relay ON

Overvoltage Category

III conforming to IEC 60664-1

[Ui] Rated Insulation Voltage

250 V conforming to IEC 60664-1, 400 V conforming to IEC 60664-1

Connections - Terminals

Screw terminals, various sizes as per document

Tightening Torque

0.6…1 N.m conforming to IEC 60947-1

Housing Material

Self-extinguishing plastic

Mounting Support

35 mm symmetrical DIN rail conforming to IEC 60715

Electrical Durability

100000 cycles

Mechanical Durability

30000000 cycles

Operating Rate

<= 360 operations/hour full load

Utilisation Category

AC-12, AC-13, AC-14, AC-15, DC-12, DC-13, DC-14 conforming to IEC 60947-5-1

[Un] Rated Nominal Voltage

Self-powered

Safety Reliability Data

B10d = 470000, MTTFd = 502.2 years

Control Type

Without test button

Width

17.5 mm

Net Weight

0.08 kg

Electromagnetic Compatibility

Emission standard for industrial environments conforming to IEC 61000-6-4

Ambient Air Temperature For Operation

-20…50 °C

Vibration Resistance

0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1

Shock Resistance

5 gn conforming to IEC 60068-2-27

Standards

IEC 60255-6

Product Certifications

UL, GL, GOST, C-Tick, CSA

Ambient Air Temperature For Storage

-40…70 °C

Relative Humidity

95 % at 55 °C conforming to IEC 60068-2-30

Ip Degree Of Protection

IP20 (terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529

Pollution Degree

3 conforming to IEC 60664-1

Directives

73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility

Dielectric Test Voltage

2 kV, 1 min AC 50 Hz conforming to IEC 60255-5, 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1

Non-Dissipating Shock Wave

4 kV conforming to IEC 60255-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 61000-4-5

Unit Type Of Package 1

PCE

Number Of Units In Package 1

Package 1 Height

2.800 cm

Package 1 Width

7.800 cm

Package 1 Length

9.700 cm

Package 1 Weight

81.000 g

Contractual Warranty

18 months

Sustainability

Green PremiumTM label

Certifications & Standards

REACH, RoHS, China RoHS, WEEE

TYPE

VALUE

Type

Voltage Control Relay

Brand

Clipsal by Schneider Electric

Brand	Clipsal by Schneider Electric
SKU	RM17UBE15
Barcode #	3389119405140
Shipping Weight	0.0800kg
Shipping Width	0.100m
Shipping Height	0.025m
Shipping Length	0.080m
Shipping Cubic	0.000200000m3
