        Learn more by watching our Schneider Electric TeSys GV2ME04 | Motor Circuit Breaker 3P | 0.4-0.63A | Thermal Magnetic video.

        Description

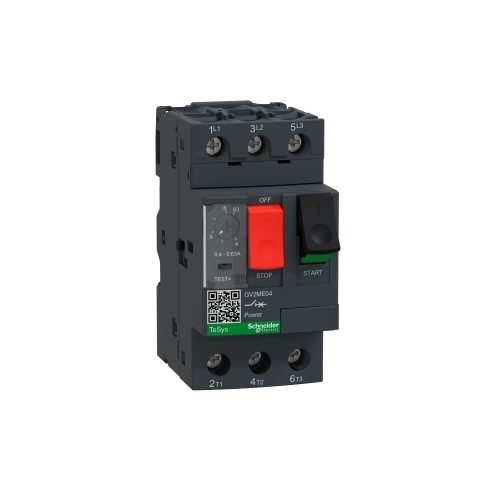

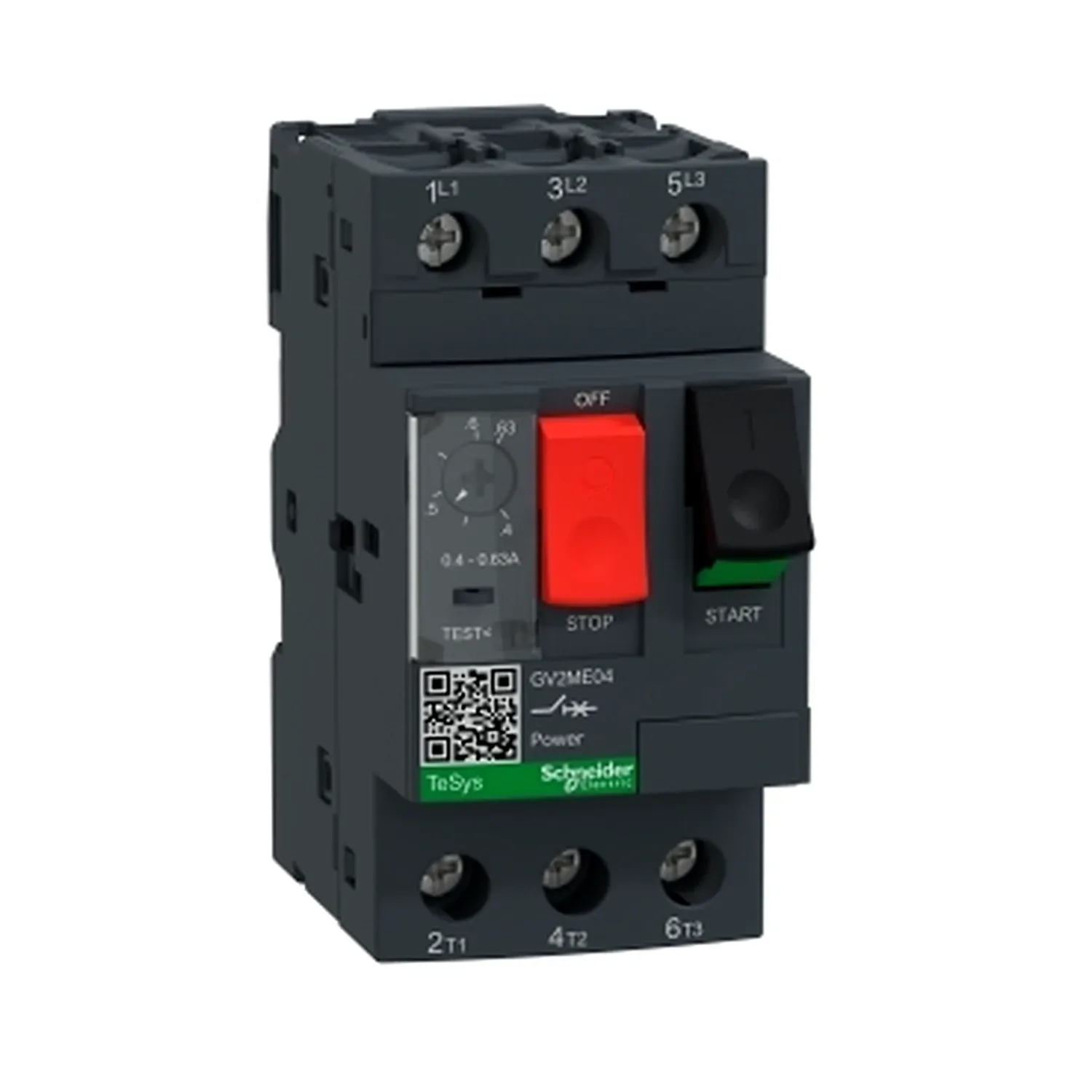

        Schneider Electric TeSys GV2ME04 | Motor Circuit Breaker 3P | 0.4-0.63A | Thermal Magnetic

        Description:

        Harness the potential of robust motor circuit safeguarding with the TeSys GV2ME04. This three-pole motor circuit breaker is meticulously designed to provide impeccable performance, guaranteeing the safety and durability of your three-phase motor operations.

        Benefits:

        • Enhanced Motor Protection: The TeSys GV2ME04 provides robust thermal-magnetic protection for your 3-phase motors, guaranteeing their safety and uninterrupted operation.

        • Adjustable Settings: With a thermal setting range of 0.4-0.63A, you have precise control over the level of protection for your motors.

        • High Breaking Capacity: Boasting a remarkable breaking capacity of 100kA@400V, this circuit breaker is designed to handle heavy loads and protect against short circuits, ensuring optimal equipment safety.

        • Versatile Voltage Compatibility: Rated for 230V, this circuit breaker adapts to a variety of voltage requirements, making it suitable for various applications.

        • Energy-Efficient: With a rated operation power of 0.18 kW at 400V, the TeSys GV2ME04 optimizes energy consumption, contributing to cost savings.

        • Simple Installation: The screw clamp terminals make installation straightforward, ensuring a secure and reliable connection.

        • Durable Construction: The robust construction guarantees the circuit breaker's resilience in challenging environments and applications.

        • Multi-Standards Certified: Certified to meet various standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with global safety and performance criteria.

        • Green Premium Compliant: This product adheres to environmental responsibility standards and is RoHS and REACh compliant.

        FAQ:

        Q: What is the thermal setting range for this motor circuit breaker?
        A:
        The TeSys GV2ME04 features a thermal setting range of 0.4-0.63A, allowing you to precisely adjust the protection level for your motors.

        Q: What is the breaking capacity of this circuit breaker?
        A:
        The TeSys GV2ME04 has a high breaking capacity of 100kA@400V, making it ideal for handling heavy loads and safeguarding against short circuits.

        Q: Is the TeSys GV2ME04 energy-efficient?
        A:
        Yes, with a rated operation power of 0.18 kW at 400V, this circuit breaker optimizes energy consumption, contributing to cost savings.

        Q: Does it have multiple safety certifications?
        A:
        Yes, the TeSys GV2ME04 is certified to meet various standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring its compliance with global safety and performance criteria.

        Elevate your motor circuit protection to new heights with the Schneider Electric TeSys GV2ME04. With its enhanced motor protection, adjustable settings, and high breaking capacity, this motor circuit breaker provides exceptional reliability and peace of mind. Choose the quality and durability of the TeSys GV2ME04 for your motor protection needs.

        (GV2ME04)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Range TeSys Deca
        Product name TeSys GV2
        Product or component type Motor circuit breaker
        Device application Motor protection
        Trip unit technology Thermal-magnetic
        Poles description 3P
        Network type AC
        Utilisation category Category A conforming to IEC 60947-2
        AC-3 conforming to IEC 60947-4-1
        Network frequency 50/60 Hz conforming to IEC 60947-4-1
        Fixing mode 35 mm symmetrical DIN rail: clipped
        Panel: screwed (with adaptor plate)
        Motor power kW 0.12 kW at 400/415 V AC 50/60 Hz
        0.18 kW at 400/415 V AC 50/60 Hz
        0.37 kW at 690 V AC 50/60 Hz
        Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
        Control type Push-button
        [In] rated current 0.63 A
        Thermal protection adjustment range 0.4…63 A conforming to IEC 60947-4-1
        Magnetic tripping current 8 A
        [Ith] conventional free air thermal current 0.63 A conforming to IEC 60947-4-1
        [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
        Phase failure sensitivity Yes conforming to IEC 60947-4-1
        Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6
        Power dissipation per pole 2.5 W
        Mechanical durability 100,000 cycles
        Electrical durability 100,000 cycles for AC-3 at 415 V In
        Rated duty Continuous conforming to IEC 60947-4-1
        Tightening torque 1.7 N.m - on screw clamp terminal
        Width 45 mm
        Height 89 mm
        Depth 78.5 mm
        Net weight 0.26 kg
        Colour Dark grey
        Environment standards EN/IEC 60947-2
        EN/IEC 60947-4-1
        Product certifications CCC
        UL
        CSA
        EAC
        ATEX
        LROS (Lloyds register of shipping)
        BV
        RINA
        DNV-GL
        UKCA
        IK degree of protection IK04
        IP degree of protection IP20 conforming to IEC 60529
        Climatic withstand Conforming to IACS E10
        Ambient air temperature for storage -40…80 °C
        Fire resistance 960 °C conforming to IEC 60695-2-11
        Ambient air temperature for operation -20…60 °C
        Mechanical robustness Shocks: 30 Gn for 11 ms
        Vibrations: 5 Gn, 5...150 Hz
        Operating altitude 2000 m
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU GV2ME04
        Barcode # 3389110343014
        Package Weight 0.216kg
        Package Width 0.095m
        Package Height 0.085m
        Package Length 0.045m
        TYPE VALUE
        Type Circuit Breaker
        Brand Schneider Electric
        Range TeSys Deca contactors
