        Learn more by watching our Clipsal Schneider TeSys GV2ME06 | Motor Circuit Breaker 3P | 1-1.6A | Thermal Magnetic video.

        Description

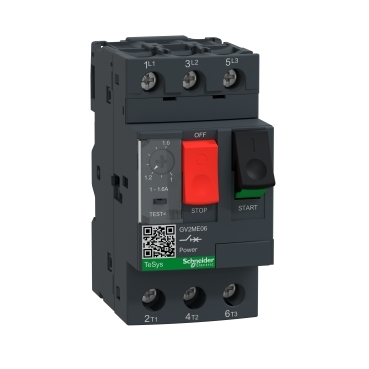

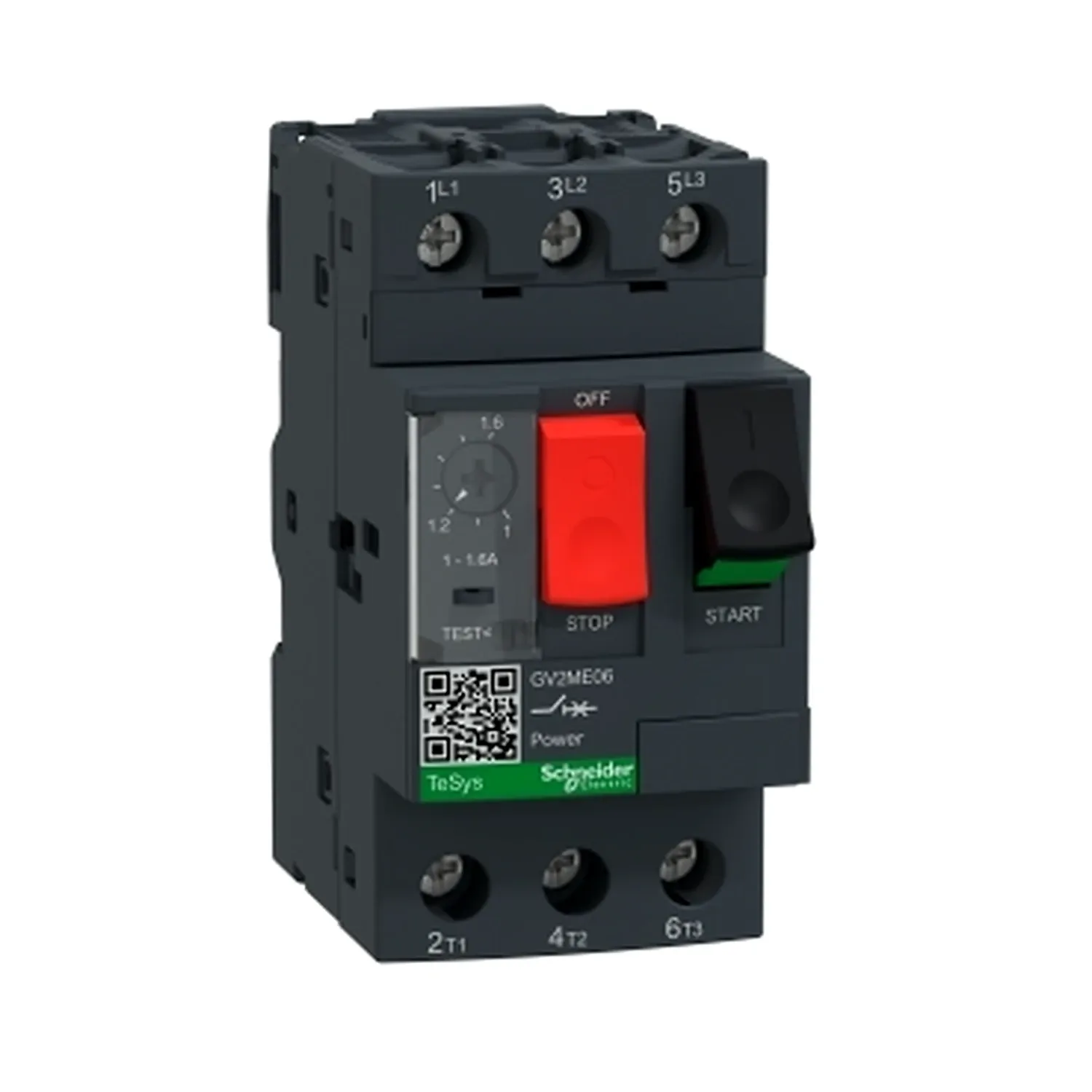

        Clipsal Schneider TeSys GV2ME06 | Motor Circuit Breaker 3P | 1-1.6A | Thermal Magnetic

        Description:

        Elevate the protection of your 3-phase motor applications with the TeSys GV2ME06, a 3-pole motor circuit breaker that delivers unmatched reliability and performance. This powerful circuit breaker offers a wide range of features and benefits to ensure the safety and efficiency of your equipment. Explore the key advantages and frequently asked questions about this product:

        Benefits:

        • Advanced Motor Protection: The TeSys GV2ME06 provides robust thermal-magnetic protection, ensuring the safety and reliability of your 3-phase motor applications.

        • Precise Adjustment: With a thermal setting range of 1-1.6A, you have precise control over the level of protection for your motors, enhancing the lifespan of your equipment.

        • High Breaking Capacity: This circuit breaker boasts a substantial breaking capacity of 100kA@400V, making it capable of handling heavy loads and protecting against short circuits.

        • Energy Efficiency: With a rated operation power of 0.55 kW at 400V, the TeSys GV2ME06 optimizes energy consumption, leading to cost savings and environmental responsibility.

        • Simple Installation: The screw clamp terminals ensure a secure and reliable electrical connection, simplifying the installation process.

        • Multi-Standards Certified: This product is certified to meet various global standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with rigorous safety and performance criteria.

        • Green Premium Compliant: The TeSys GV2ME06 adheres to environmental responsibility standards and is RoHS and REACh compliant, contributing to a sustainable future.

        FAQ:

        Q: What is the thermal setting range for this motor circuit breaker?
        A:
        The TeSys GV2ME06 features a thermal setting range of 1-1.6A, allowing you to precisely adjust the protection level for your motors.

        Q: What is the breaking capacity of this circuit breaker?
        A:
        The TeSys GV2ME06 has a high breaking capacity of 100kA@400V, making it suitable for handling heavy loads and safeguarding against short circuits.

        Q: Is this circuit breaker energy-efficient?
        A:
        Yes, with a rated operation power of 0.55 kW at 400V, the TeSys GV2ME06 optimizes energy consumption, leading to cost savings and environmental responsibility.

        Q: Is it certified to meet safety standards?
        A:
        Absolutely, the TeSys GV2ME06 is certified to meet various global standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring its compliance with rigorous safety and performance criteria.

        Upgrade the protection of your 3-phase motor applications with the Clipsal Schneider TeSys GV2ME06. With advanced motor protection, precise adjustment settings, high breaking capacity, and energy efficiency, this motor circuit breaker ensures the safety and reliability of your equipment. Make an environmentally responsible choice with the TeSys GV2ME06, which is designed to meet global safety and performance standards.

        (GV2ME06)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Range TeSys Deca
        Product name TeSys GV2
        Product or component type Motor circuit breaker
        Device application Motor protection
        Trip unit technology Thermal-magnetic
        Poles description 3P
        Network type AC
        Utilisation category Category A conforming to IEC 60947-2
        AC-3 conforming to IEC 60947-4-1
        Network frequency 50/60 Hz conforming to IEC 60947-4-1
        Fixing mode 35 mm symmetrical DIN rail: clipped
        Panel: screwed (with adaptor plate)
        Motor power kW 0.37 kW at 400/415 V AC 50/60 Hz
        0.55 kW at 400/415 V AC 50/60 Hz
        0.37 kW at 500 V AC 50/60 Hz
        0.55 kW at 500 V AC 50/60 Hz
        0.75 kW at 500 V AC 50/60 Hz
        0.75 kW at 690 V AC 50/60 Hz
        1.1 kW at 690 V AC 50/60 Hz
        Breaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
        100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
        100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
        Control type Push-button
        [In] rated current 1.6 A
        Thermal protection adjustment range 1…1.6 A conforming to IEC 60947-4-1
        Magnetic tripping current 22.5 A
        [Ith] conventional free air thermal current 1.6 A conforming to IEC 60947-4-1
        [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
        Phase failure sensitivity Yes conforming to IEC 60947-4-1
        Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6
        Power dissipation per pole 2.5 W
        Mechanical durability 100,000 cycles
        Electrical durability 100,000 cycles for AC-3 at 415 V In
        Rated duty Continuous conforming to IEC 60947-4-1
        Tightening torque 1.7 N.m - on screw clamp terminal
        Width 45 mm
        Height 89 mm
        Depth 78.5 mm
        Net weight 0.26 kg
        Colour Dark grey
        Environment standards EN/IEC 60947-2
        EN/IEC 60947-4-1
        Product certifications CCC
        UL
        CSA
        EAC
        ATEX
        LROS (Lloyds register of shipping)
        BV
        RINA
        DNV-GL
        UKCA
        IK degree of protection IK04
        IP degree of protection IP20 conforming to IEC 60529
        Climatic withstand Conforming to IACS E10
        Ambient air temperature for storage -40…80 °C
        Fire resistance 960 °C conforming to IEC 60695-2-11
        Ambient air temperature for operation -20…60 °C
        Mechanical robustness Shocks: 30 Gn for 11 ms
        Vibrations: 5 Gn, 5...150 Hz
        Operating altitude 2000 m
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU GV2ME06
        Barcode # 3389110343052
        Shipping Weight 0.2400kg
        Shipping Width 0.095m
        Shipping Height 0.085m
        Shipping Length 0.045m
        Shipping Cubic 0.000363375m3
        TYPE VALUE
        Type Circuit Breaker
        Brand Clipsal by Schneider Electric
        Range TeSys Deca contactors
