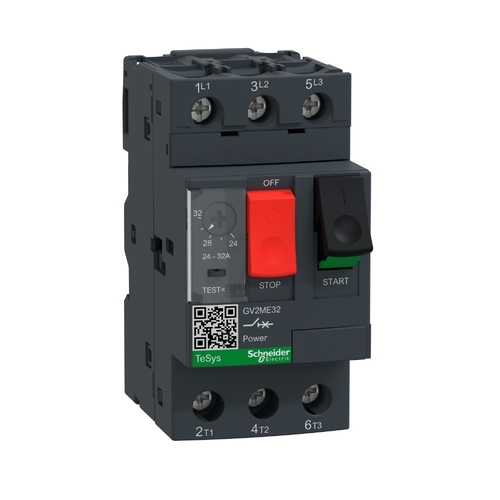

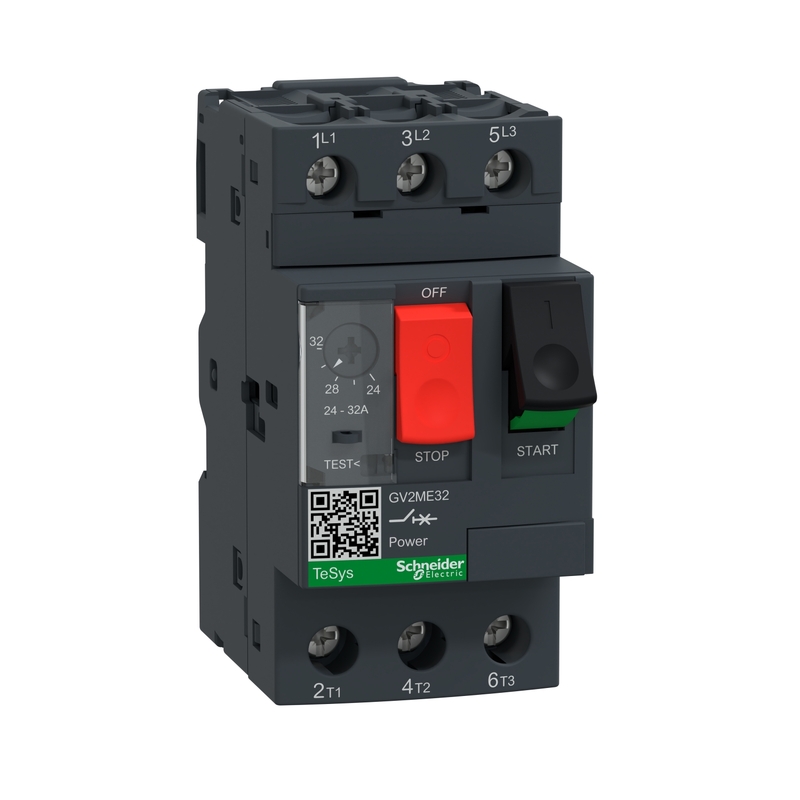

        Schneider Electric TeSys GV2ME32 | Motor Circuit Breaker 3P | 24-32A | Thermal Magnetic

        Description:

        Elevate your motor circuit protection to a new level with the TeSys GV2ME32, a 3-pole motor circuit breaker designed to provide exceptional safety and performance for your 3-phase motor applications. Offering an array of advantages, this circuit breaker ensures the utmost protection and efficiency for your equipment. Explore the key benefits and frequently asked questions about this product:

        Benefits:

        • Advanced Motor Protection: The TeSys GV2ME32 offers robust thermal-magnetic protection, guaranteeing the safety and longevity of your 3-phase motor applications.

        • Precise Adjustment: With a thermal setting range of 24-32A, you have precise control over your motor protection, reducing the risk of damage or malfunction.

        • High Breaking Capacity: This circuit breaker features a substantial breaking capacity of 10kA@400V, ensuring it can handle heavy loads and protect against short circuits.

        • Powerful Motor Support: With a 15kW@400V rating, the TeSys GV2ME32 provides reliable support for high-power 3-phase motors.

        • Screw Clamp Terminals: The screw clamp terminals simplify electrical connections, making installation secure and straightforward.

        • Start-Stop Control: This circuit breaker offers dependable start-stop control via push-button, with a guaranteed lifespan of 100,000 cycles under AC-3 conditions.

        • Certified to Global Standards: The TeSys GV2ME32 is certified to meet various international standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with stringent safety and performance requirements.

        • Environmentally Responsible: This product is Green Premium compliant, adhering to RoHS and REACh standards promoting sustainability and eco-friendliness.

        FAQ:

        Q: What is the thermal setting range for this motor circuit breaker?
        A:
        The TeSys GV2ME32 offers a thermal setting range of 24-32A, providing precise protection adjustments for your motors.

        Q: What is the breaking capacity of this circuit breaker?
        A:
        This circuit breaker has a breaking capacity of 10kA@400V, making it capable of handling heavy loads and guarding against short circuits.

        Q: Is this circuit breaker suitable for high-power 3-phase motors?
        A:
        Absolutely, with a 15kW@400V rating, the TeSys GV2ME32 provides powerful support for high-capacity 3-phase motors.

        Q: What type of control does it offer?
        A:
        This circuit breaker offers reliable start-stop control via push-button, ensuring precise operation and longevity.

        Q: Is this product certified to meet safety standards?
        A:
        Yes, the TeSys GV2ME32 is certified to meet international safety standards, including IEC, UL, CSA, CCC, EAC, Marine, and ATEX, ensuring compliance with strict safety and performance criteria.

        Upgrade the safety and efficiency of your 3-phase motor applications with the Schneider Electric TeSys GV2ME32. Boasting advanced motor protection, precise adjustment settings, high breaking capacity, and support for high-power motors, this circuit breaker ensures optimal performance and protection. With certification to meet global safety standards and Green Premium compliance, it's a responsible choice for your electrical needs.

        (GV2ME32)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Features
        Specification Details
        Range TeSys Deca
        Product name TeSys GV2
        Product or component type Motor circuit breaker
        Device application Motor protection
        Trip unit technology Thermal-magnetic
        Poles description 3P
        Network type AC
        Utilisation category Category A conforming to IEC 60947-2
        AC-3 conforming to IEC 60947-4-1
        Network frequency 50/60 Hz conforming to IEC 60947-4-1
        Fixing mode 35 mm symmetrical DIN rail: clipped
        Panel: screwed (with adaptor plate)
        Motor power kW 15 kW at 400/415 V AC 50/60 Hz
        18.5 kW at 500 V AC 50/60 Hz
        22 kW at 690 V AC 50/60 Hz
        Breaking capacity 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
        10 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
        6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
        4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
        3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
        50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
        50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
        75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
        75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
        Control type Push-button
        [In] rated current 32 A
        Thermal protection adjustment range 24…32 A conforming to IEC 60947-4-1
        Magnetic tripping current 416 A
        [Ith] conventional free air thermal current 32 A conforming to IEC 60947-4-1
        [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
        [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
        Phase failure sensitivity Yes conforming to IEC 60947-4-1
        Suitability for isolation Yes conforming to IEC 60947-1 § 7-1-6
        Power dissipation per pole 2.5 W
        Mechanical durability 100,000 cycles
        Electrical durability 100,000 cycles for AC-3 at 415 V In
        Rated duty Continuous conforming to IEC 60947-4-1
        Tightening torque 1.7 N.m - on screw clamp terminal
        Width 45 mm
        Height 89 mm
        Depth 78.5 mm
        Net weight 0.26 kg
        Colour Dark grey
        Environment standards EN/IEC 60947-2
        EN/IEC 60947-4-1
        Product certifications CCC
        UL
        CSA
        EAC
        ATEX
        LROS (Lloyds register of shipping)
        BV
        RINA
        DNV-GL
        UKCA
        IK degree of protection IK04
        IP degree of protection IP20 conforming to IEC 60529
        Climatic withstand Conforming to IACS E10
        Ambient air temperature for storage -40…80 °C
        Fire resistance 960 °C conforming to IEC 60695-2-11
        Ambient air temperature for operation -20…60 °C
        Mechanical robustness Shocks: 30 Gn for 11 ms
        Vibrations: 5 Gn, 5...150 Hz
        Operating altitude 2000 m
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU GV2ME32
        Barcode # 3389110343298
        Package Weight 0.280kg
        Package Width 0.048m
        Package Height 0.093m
        Package Length 0.085m
        TYPE VALUE
        Type Circuit Breaker
        Brand Schneider Electric
        Range TeSys Deca contactors
