        Description

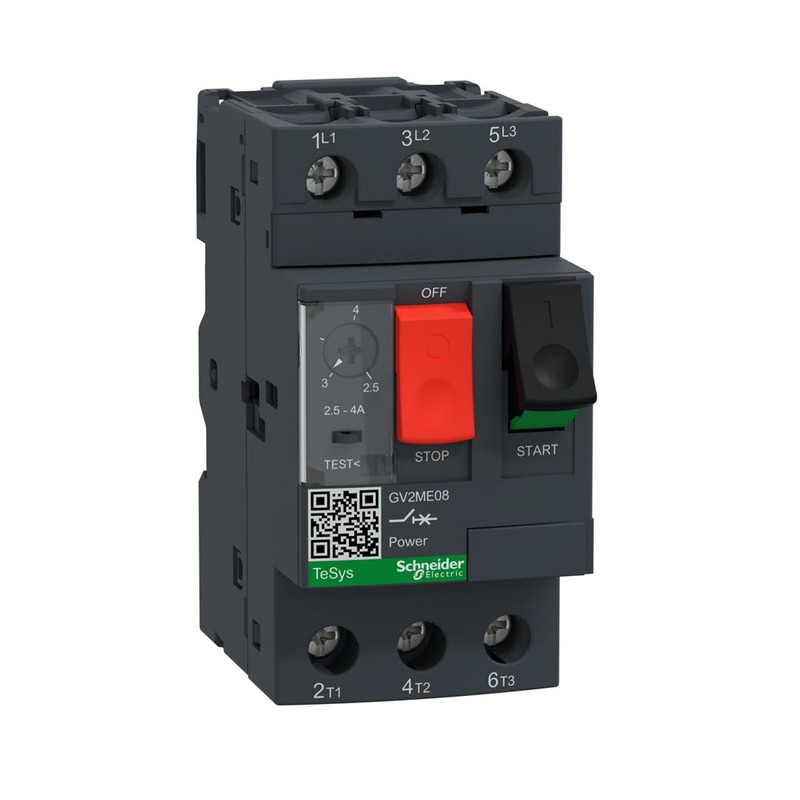

        Schneider Electric TeSys GV2ME08 | Motor Circuit Breaker 3P | 2.5A - 4A | Thermal Magnetic

        The Schneider Electric TeSys GV2ME08 is a motor circuit breaker that protects 3-phase motors. It has 3 poles (3P) and a current rating range of 2.5A to 4A.

        • Type: 3 poles (3P)
        • Current Rating: 4A
        • Voltage Rating: 690V
        • Suitable for 3-phase motor applications up to 1.5kW@400V
        • Provides thermal-magnetic protection
        • Thermal Setting Range: 2.5-4A
        • Magnetic tripping current 51A
        • High breaking capacity Icu 100kA@400V.
        • Connection: Screw clamp terminals
        • Start-stop control by push-button, guaranteed for 100,000 cycles AC-3
        • Certified by multiple standards (IEC, UL, CSA, CCC, EAC, Marine, ATEX)
        • Green Premium compliant (RoHS/REACh)

        Features:

        Range TeSys Deca
        Product name TeSys GV2
        TeSys Deca
        Product or component type Motor circuit breaker
        device short name GV2ME
        Device application Motor protection
        Trip unit technology Thermal-magnetic

        (GV2ME08)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU GV2ME08
        Barcode # 3389110109993
        Package Weight 0.260kg
        Package Width 0.045m
        Package Height 0.089m
        Package Length 0.079m
        TYPE VALUE
        Type Contactor
        Brand Schneider Electric
        Range TeSys Deca contactors
        Product or component type Motor circuit breaker
        Conventional free air thermal current 4A
        Thermal protection adjustment range 2.5 - 4A
        Magnetic tripping current 51 A
