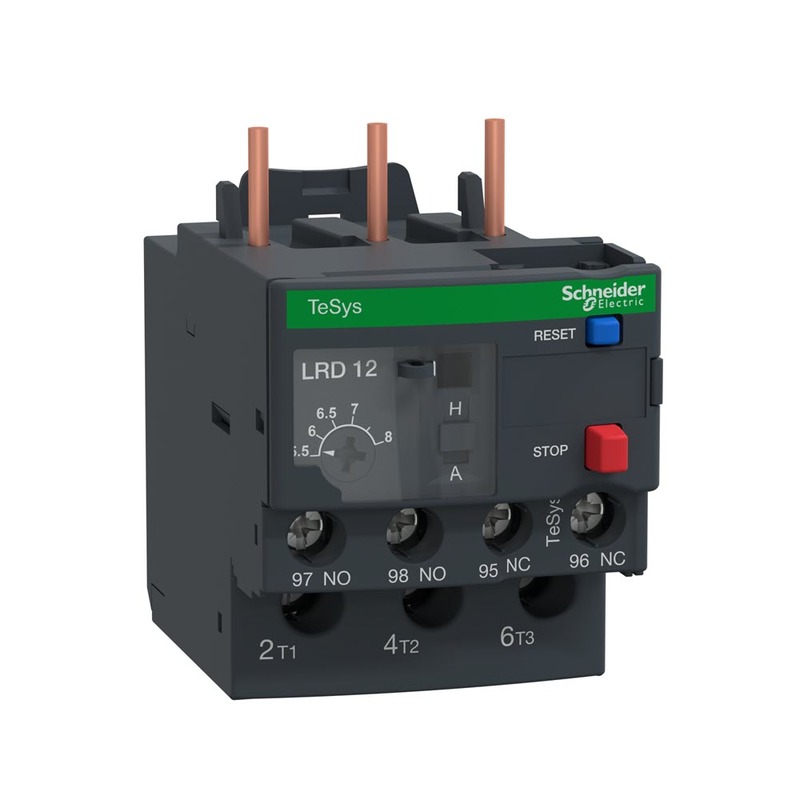

        Clipsal Schneider TeSys LRD12 | Thermal Overload Relay 5.5 - 8.0 Amps

        The TeSys LRD thermal overload relay is a protective device used for 3-phase motors rated at 3kW when operating at 400V. It ensures the motor is safeguarded from overheating and potential electrical faults.

        Key Features:

        • Current Rating: 8A at 690V maximum.
        • Thermal Setting Range: Adjustable between 5.5A to 8A, allowing customization to match motor requirements.
        • Tripping Class: Designed with Class 10A tripping, which means it responds quickly to overload conditions.
        • Differential Device: Equipped with phase failure and load unbalance detection to detect potential issues in the motor operation.
        • Control Elements: The relay has a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulating a tripping event, reset and stop buttons, and a flag indicator.
        • Auxiliary Contacts: Provides 2 auxiliary contacts (1 Normally Open and 1 Normally Closed) for fault signalling purposes.
        • Transparent Cover: The settings are protected by a transparent cover that can be locked using a seal for security.
        • Connection: It connects easily to 3-pole contactors LC1D09-D38 via screw clamp terminals.
        • Mounting Options: Can be mounted on a DIN rail or fixed with screws separate from the contactor.
        • Terminal Block: A separate terminal block (LAD7B106) can be ordered to facilitate the connection.
        • Certified Standards: Meets multiple standards such as IEC, UL, CSA, CCC, EAC, ATEX, and Marine, ensuring its reliability and safety.
        • Environmentally Compliant: Green Premium compliant (RoHS/REACH), demonstrating its adherence to eco-friendly standards.

        Features:

        Range TeSys
        TeSys Deca
        Product name TeSys LRD
        TeSys Deca
        Product or component type Differential thermal overload relay
        device short name LRD
        Relay application Motor protection
        Product Compatibility LC1D18
        LC1D38
        LC1D32
        LC1D25
        LC1D12
        LC1D09

        (LRD12)

        Warranty

        The warranty starts from the Invoice Date.

        Domestic Use: 18 Months
        Commercial Use: 18 Months
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU LRD12
        Barcode # 3389110346800
        Shipping Weight 0.1240kg
        Shipping Width 0.045m
        Shipping Height 0.066m
        Shipping Length 0.070m
        Shipping Cubic 0.000207900m3
        TYPE VALUE
        Type Contactor
        Brand Clipsal by Schneider Electric
        Range TeSys Deca contactors
        Product or component type Differential thermal overload relay
        Thermal protection adjustment range 5.5 - 8A
        Thermal overload class 10 A
        Auxiliary contact composition 1 NO + 1 NC
