        Description

        Clipsal TPWP2EM | 20W/40W Weatherproof Emergency LED Batten CCT 3K/4K/6.5K | 1200mm

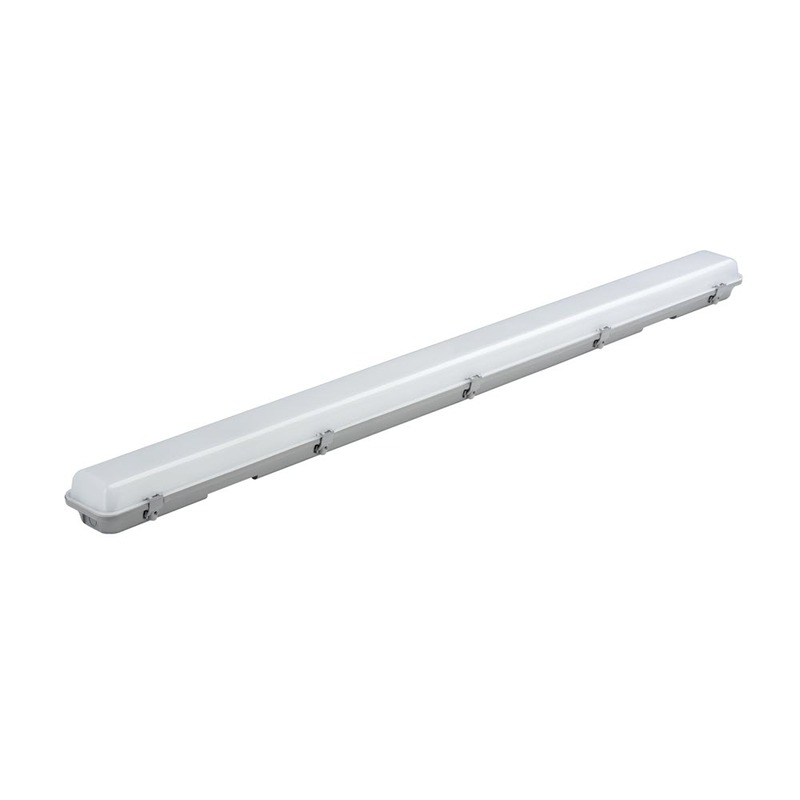

        The Clipsal TPWP2EM 20W/40W Weatherproof Emergency LED Batten is a powerful lighting solution for both commercial and residential use. At 1200mm in length and with an IP65 rating, it provides reliable lighting and emergency support, making it perfect for schools, car parks, garages, and public buildings. A CCT selector switch lets users adjust colour temperature between 3000K, 4000K, and 6500K to suit any setting.

        Made from tough polycarbonate, the TPWP2EM batten is impact-resistant and built for harsh conditions. It offers selectable power modes of 20W or 40W, delivering up to 4000 lumens at full power. In emergency mode, it provides 300-400 lumens for over 3 hours, ensuring visibility during power outages. An integrated test button makes it easy to check emergency functionality.

        Clipsal TPWP2EM Features:

        • CCT Adjustable (3000K/4000K/6500K): Offers flexible colour temperature options for varied environments.
        • Selectable Power Modes (20W/40W): Provides up to 4000 lumens at full power for optimal lighting.
        • IP65 and IK08 Rated: Weatherproof and impact-resistant, suitable for demanding environments.
        • Emergency Operation Mode: Supplies 300-400 lumens for over 3 hours in power outages.
        • Durable Polycarbonate Construction: Ensures long-term durability with even light distribution.
        • Test Button: Allows quick emergency function testing for compliance and reliability.

        Clipsal TPWP2EM FAQ:

        Q: What settings are available for colour temperature?
        A: The unit offers a choice of 3000K, 4000K, and 6500K color temperatures.

        Q: How long does it provide light in emergency mode?
        A: It runs for over 3 hours, delivering 300-400 lumens in non-maintained emergency mode.

        Q: Is this batten suitable for outdoor use?
        A: Yes, with an IP65 rating, it is weatherproof and ideal for outdoor installations.

        Q: Does it come with a testing feature?
        A: Yes, it includes a test button for easy verification of emergency functionality.

        (TPWP2EM)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal on site warranty

        Features
        Specification Details
        Model TPWP2EM
        Voltage Rating 220 - 240 Vac, 50 Hz
        LED Power 36 W
        Total System Power 44 W
        Lumen Output Selectable > 4,000 lm / > 2,000 lm
        Colour Temperature Selectable 3000K / 4000K / 6500K
        CRI > 80
        IP Rating IP65
        IK Rating IK08
        Lifespan (L70) 30,000 hrs
        Battery Type Lithium (LiFePO4)
        Operation Mode Non-Maintained
        Emergency Duration > 3 hrs
        Operating Temperature -10˚C to +45˚C
        Length 1260 mm
        Width 105 mm
        Height 68 mm
        Mounting Center 850 mm
        Weight ~2.0 kg
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU TPWP2EM
        Barcode # 9311554812072
        Package Weight 2.200kg
        Package Width 0.108m
        Package Height 0.074m
        Package Length 1.300m
        TYPE VALUE
        Type Lighting
        Colour Grey and White
        Height (mm) 68
        Width (mm) 105
        Length (mm) 1260
        Mounting Surface Mount
        Lighting Technology LED
        Light Colour (K) 3000/4000/6500
        Voltage (V) 240V
        Wattage (W) 22/24
        IP Rating IP65
        Battery Backup > 3 hrs LiFePO4
        Impact Rating IK08
