        DataTek 24SECCAB | CCTV System Security Cabinet Surface Mount | White
        $264.00 $240.00 ex. GST
        Description

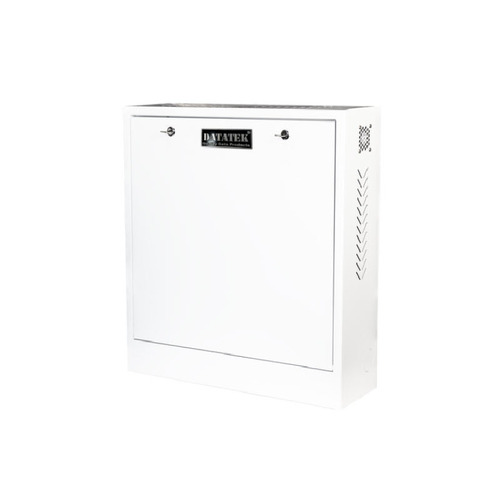

        DataTek 24SECCAB | CCTV System Security Cabinet Surface Mount | White

        **NVR & Monitor Not Included**

        The DataTek 24SECCAB CCTV System Security Cabinet is a robust and compact storage solution designed for professional security installations. Constructed from cold-rolled steel with a white hammertone finish, it is mark, scratch, and fingerprint-resistant.

        This cabinet supports a 24” monitor and up to 2U of equipment(240-480mm width and 465mm depth), such as a 4HDD bay NVR or DVR. It features more airflow vents than standard cabinets, with two built-in cooling fans powered via a USB Y-cable.

        Secure and safe, it includes dual cabinet locks and strategically positioned 50mm knockouts with protective cable grommets to minimize tampering. A 5-outlet PDU is included, accommodating additional power needs with any standard 19” rack PDU.

        CCTV Security Cabinet Features:

        • Durable Construction: Made from cold-rolled steel with a white hammertone finish for resistance to marks, scratches, and fingerprints.
        • Secure Storage: Dual cabinet locks provide enhanced security for your equipment.
        • Efficient Cooling: More airflow vents and two built-in cooling fans ensure optimal temperature control.
        • Versatile Power Options: Includes a 5-outlet PDU, with the capacity for any standard 19” rack PDU if additional power is needed.
        • Ample Equipment Support: Holds up to a 24” monitor and up to 2U of mounted equipment(240-480mm width and 465mm depth), supporting various security devices.
        • Tamper-Resistant: Strategically positioned knockouts with protective cable grommets minimize tampering risks.

        24SECCAB FAQ:

        Q: What are the dimensions and weight capacity of the DataTek 24SECCAB?
        A: The cabinet measures 580(W) x 635(H) x 185(D) mm and has a maximum load-bearing weight capacity of 30kg.

        Q: What equipment can this cabinet support?
        A: It supports up to 2U of mounted equipment and a 24” monitor with downward-facing HDMI and power inputs, fitting 50/75/100mm VESA mounting standards.

        Q: How is the cooling managed in this cabinet?
        A: The cabinet includes more airflow vents than standard models and features two built-in cooling fans connected via a Y-cable to a single USB power source for efficient cooling.

        (24SECCAB)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Product Includes
        5 Outlet PDU (24SECPDU)
        Wall mounting template
        Monitor brackets
        Cable mounts
        2x cooling fans (24SECFAN)
        Knockout grommets (24SECGRO)
        Captive nuts & screws
        2x keys
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand DataTek
        SKU 24SECCAB
        Barcode # 9340591018604
        Shipping Weight 16.0000kg
        Shipping Width 0.640m
        Shipping Height 0.260m
        Shipping Length 0.680m
        Shipping Cubic 0.113152000m3
        TYPE VALUE
        Type Security Cabinet
        Brand DATATEK
        Colour White
        Included 5 Outlet PDU
        Weight Capacity 30kg
        Monitor Supports up to 24" with bottom HDMI & Power
