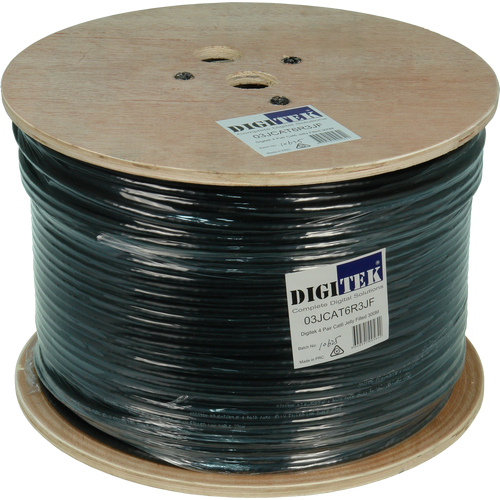

        DIGITEK 03JCAT6R3JF | 4 Pair Jelly Filled Data Cable CAT6 300m Reel

        Description:

        Experience seamless connectivity like never before with the Digitek 03JCAT6R3JF, a 4-pair Jelly Filled Data Cable CAT6 presented on a 300m reel. Elevate your data and communication network with this high-performance cable designed to meet your every need.

        Benefits That Set You Apart:

        • High-Speed Data Transmission: The Digitek 03JCAT6R3JF is engineered for high-speed data and communication networks. Whether it's for work, entertainment, or staying connected, this cable ensures that you experience uninterrupted, lightning-fast data transmission.

        • Jelly-Filled for Enhanced Durability: Featuring a jelly-filled core, this cable is well-equipped to withstand the harshest conditions. It's your reliable companion for underground installations, assuring you of uninterrupted connectivity.

        • Robust Construction: With a bare copper conductor and polyolefin-insulated twisted pairs, this cable is built to last. It's designed for longevity, making it a cost-effective choice for both residential and commercial applications.

        • Easy Handling: Supplied on a convenient 300m wooden spool, handling and installation is a breeze. No more hassles or tangles – just an efficient, straightforward setup.

        FAQ:

        Q: What is CAT6, and why is it important?
        A: CAT6 is a standardized cable type known for its high data transmission capabilities. It's essential for high-speed internet and network connections, ensuring you get the most out of your online experience.

        Q: Can I use this cable for underground installations?
        A: Absolutely. The Digitek 03JCAT6R3JF is designed for underground installations and is well-suited for such applications.

        Q: Is this cable suitable for both residential and commercial use?
        A: Yes, it is. This cable's robust construction and high-speed capabilities make it a versatile choice for various applications, from home networks to commercial setups.

        Q: What's the advantage of the jelly-filled core?
        A: The jelly-filled core adds an extra layer of protection, making the cable more durable and resilient in challenging conditions, ensuring consistent connectivity.

        Upgrade your connectivity with the Digitek 03JCAT6R3JF. Whether you're setting up a home office, enhancing your entertainment system, or boosting your business network, this cable ensures you get the most out of your high-speed data and communication needs. Don't settle for less – experience lightning-fast connectivity with Digitek.

        (03JCAT6R3JF)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features



        Construction

        Conductor Nom. Dia. 0.56mm
          Material Solid Bare Copper
        Insulation Nom. Dia. 1.0mm
          Material HDPE
        Filler Material Gel Filled
          Material PE Separator
          Material Nylon Ripcord
        Jacket Nom. O.D. 7.0mm
          Average Thickness 1.0mm
          Material PE
        Electrical Characteristics
          1 - 250MHz Impedance 100+15Ω
          DC Resistance <9.38%Ω/100m
          DC Conductor Resistance Unbalance <5%
          Capacitance <5.6nF/100m
        Mechanical Characteristics
          Installation Temperature -20°C - 70°C
          Operating Temperature -20°C - 70°C
          Elongation Before Aging >300% (Insulation), >100% (Jacket)
          Tensile Strength Before Aging >16.5MPa (Insulation), >13.38MPa (Jacket)
          Elongation After Aging >75% of unaged (Insulation), >50% of unaged (Jacket)
          Tensile Strength After Aging >75% of unaged (Insulation), >50% of unaged (Jacket)

        Technical Performance

        Frequency(MHz) RL >dB ATT <dB NEXT >dB Phrase DELAY <ns PSNEXT >dB ELEXT >dB PSELFEXT >dB
        1 20.0 2.03 74.3 570.00 72.3 68.0 65.0
        4.0 23.0 3.78 65.3 552.00 63.3 56.0 53.0
        8.0 24.5 5.32 60.8 546.73 58.7 49.9 46.9
        10.0 25.0 5.95 59.3 545.38 57.3 48.0 45.0
        16.0 25.0 7.55 56.2 543.00 54.2 43.9 40.9
        20.0 25.0 8.47 54.8 542.05 52.8 42.0 39.0
        25.0 24.3 9.51 53.3 541.20 51.3 40.0 37.0
        31.25 23.6 10.67 52.0 540.44 49.9 38.1 35.1
        62.5 21.5 15.38 47.4 538.55 45.4 32.1 29.1
        100 20.1 19.80 44.3 537.60 42.3 28.0 25.0
        200 18.0 28.98 39.8 536.54 37.8 22.0 19.0
        250 17.3 32.85 38.3 536.27 36.3 20.0 17.0



        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand DIGITEK
        SKU 03JCAT6R3JF
        Barcode # 9340591005642
        Package Weight 14.800kg
        Package Width 0.360m
        Package Height 0.210m
        Package Length 0.360m
        TYPE VALUE
        Type Cable
        Brand DIGITEK
        Colour Black
