        FUJITSU ASTH14KNCA-SET | 4.2KW Reverse Cycle Split System Air conditioner R32 | Comfort Range
        $1,310.00 $1,190.91 ex. GST
        Description

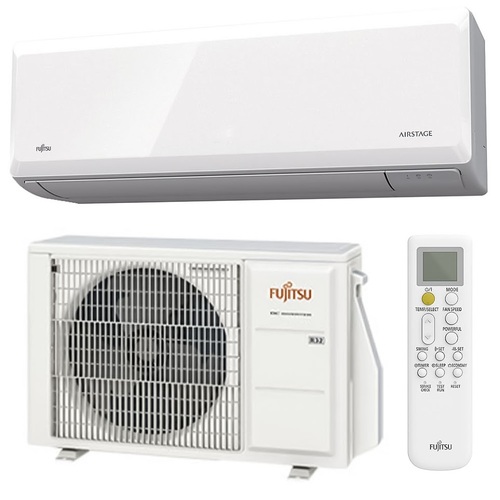

        FUJITSU ASTH14KNCA-SET | 4.2KW Reverse Cycle Split System Air conditioner R32 | Comfort Range

        Fujitsu 4.2kW Cooling | 4.7kW Heating capacity. Reverse Cycle Inverter Split System. High Energy efficiency on Cooling and Heating.

        Key features
        The new Comfort range of wall-mounted air conditioning units is the latest solution for energy-efficient, all-year-round climate control for the home. With an award-winning design, the Comfort range is a reliable and trusted solution with a selection of options to suit almost any room.

        • All DC - With All DC, electricity loss is decreased, and power consumption is reduced.
        • Auto Restart - Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode once the power is restored.
        • Auto Shut Louvre - The auto-shut louvres close or open automatically when the unit stops or starts.
        • Auto Changeover - The unit automatically switches between operating modes based on the temperature setting and room temperature.
        • Automatic Air Flow Adjustment - The microprocessor automatically adjusts the airflow to follow changes in room temperature.
        • Automatic Louvre - The louvres' position is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
        • Blue Fin Heat Exchanger - Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
        • Demand Response - This product is designed to be compatible with the Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes, the air conditioner switches over to the appropriate operation.
        • Economy Mode - Limits the maximum operation current and performs operation with suppressed power consumption.
        • Filter Sign - Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the room's air.
        • i-PAM - i-PAM inverter technology enables high output and high-efficiency performance.
        • Low Noise Mode - The compressor speed and the outdoor unit fan speed are limited to reduce the operational noise.
        • ON-OFF Timer - The ON-OFF timer can be set to operate once every 24 hours.
        • Powerful Mode - Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable.
        • Program Timer - This timer allows the selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
        • Sleep Timer - The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
        • Super Quiet Mode - The indoor unit fan can operate at a low speed to produce quieter operation.
        • Up Down Swing - The up/down louvre automatically swings up and down.
        • v-PAM - v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.
        • Washable Panel - Dust accumulating on the air conditioner can be easily cleaned with a damp cloth.

        Indoor unit ASTH14KNCA
        Outdoor unit AOTH14KNCA
        Operation Type Reverse Cycle
        Power Source V/Ph/Hz 230 / 1 / 50
        Cooling Capacity kW (Rated (Min - Max)) 4.20 (0.9 - 4.4)
        Heating Capacity kW (Rated (Min - Max)) 4.70 (0.9 - 5.8)
        Input Power Cooling kW (Rated (Min - Max)) 1.23 (0.25 - 1.4)
        Input Power Heating kW (Rated (Min - Max)) 1.13 (0.25 - 1.73)
        EER Cooling kW/kW 3.41
        COP Heating kW/kW 4.16
        Star Rating Cooling (0-10) (Hot / Average / Cold) 4 / 3.5 / 4
        Star Rating Heating (0-10) (Hot / Average / Cold) 3.5 / 3 / 2
        Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.55 / 5.262 / 5.691
        Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 5.25 / 4.54 / 3.801
        Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 6.165 / 6.593 / 7.47
        Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.26 / 4.825 / 4.191
        Running Current amps (Cooling / Heating) 5.9 / 5.6
        Moisture Removal l/hr 1.6
        Indoor Sound Pressure Cooling dBA (High / Quiet) 43 / 20
        Indoor Sound Pressure Heating dBA (High / Quiet) 44 / 24
        Outdoor Sound Pressure dBA (Cooling / Heating) 50 / 50
        Outdoor Sound Power dBA 65
        Air Circulation (Indoor - High Fan) Cooling l/sec 214
        Air Circulation (Indoor - High Fan) Heating l/sec 228
        Indoor Unit Dimensions mm (Height x Width x Depth) 270 x 834 x 215
        Indoor Unit Weight kg 10.00
        Outdoor Unit Dimensions mm (Height x Width x Depth) 541 x 799 x 290
        Outdoor Unit Weight kg 31.00
        Piping Connects mm Ø (Liquid / Gas) 6.35 / 9.52
        Pipe Length m (Max (Precharged)) 20 (15)
        Max Height Difference m 15
        Operation Range Cooling Â°CDB (Min to Max) -10 to 50
        Operation Range Heating Â°CDB (Min to Max) -15 to 24
        Refrigerant Type R32
        Refrigerant Amount g 850

        (ASTH14KNCA-SET)

        Warranty

        Warranty starts from Invoice Date

        5 Year Manufactures Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fujitsu Air Conditioners
        SKU ASTH14KNCA-SET
        TYPE VALUE
        Type Air Conditioning
