Description:

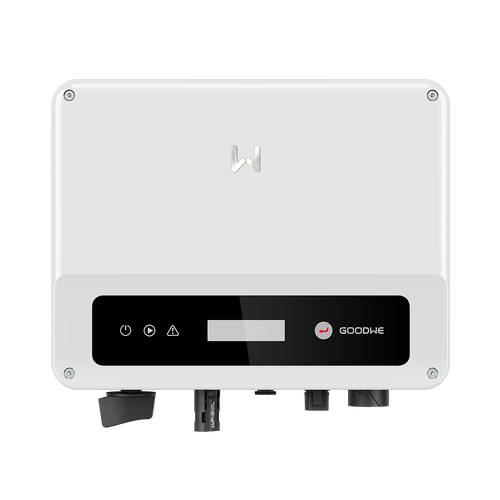

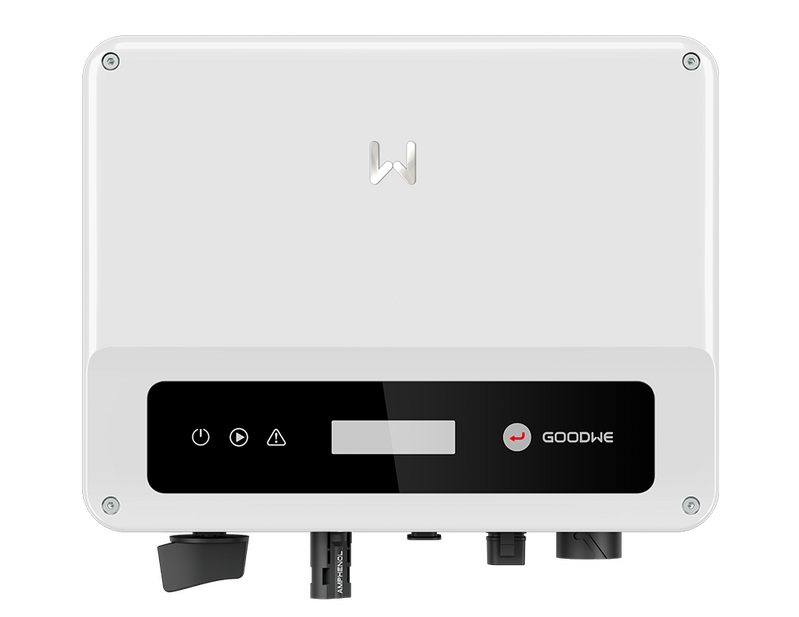

Are you ready to embrace a smarter, more efficient way to harness solar energy for your home? Look no further than the GoodWe GW2000-XS-11 Grid-Tied PV Inverter. With its exceptional features and compact design, it's the perfect addition to your solar power system.
Key Benefits:
Ultra-Small and Lightweight: The GW2000-XS-11 is incredibly compact, equivalent in size to an A4 paper, and weighs only 5.8 kg. This lightweight design makes it easy to carry and install, saving you time and effort.
High Efficiency: Enjoy maximum performance with an efficiency rating of up to 97.5%. This inverter ensures that you get the most out of your solar panels, translating into substantial energy savings.
Smart Energy Management: With 24-hour load consumption monitoring enabled by GoodWe HomeKit 10001, you can take control of your energy usage. This feature empowers you to make informed decisions about your energy consumption, ultimately saving you money.
Adaptive to Local Regulations: The integrated export power limit feature allows the GW2000-XS-11 to adapt to the power restrictions imposed by your local energy provider. Say goodbye to unnecessary fines for exceeding power limits.
Oversizing Capability: Despite its compact size, this inverter is equipped with 130% DC oversizing capability, ensuring full load output even during extreme weather conditions. Plus, it offers 110% AC output overloading, generating 10% additional power compared to the nominal output.
Early Start: The 40 V start-up voltage enables the inverter to kick in earlier during the day, capturing more sunlight and increasing your overall power generation.
Seamless Integration: The GW2000-XS-11 offers both LAN and Wi-Fi communication options via a module (sold separately), enabling seamless integration into your smart home system for convenient monitoring and control.
FAQ:
Q: How compact is the GW2000-XS-11?
A: This inverter is exceptionally compact, with dimensions equivalent to an A4 paper. It weighs only 5.8 kg, making it easy to carry and install.
Q: What efficiency can I expect from this inverter?
A: The GW2000-XS-11 boasts an efficiency rating of up to 97.5%, ensuring maximum performance and energy savings.
Q: Is the inverter adaptive to local regulations?
A: Absolutely, it comes with integrated export power limit functionality, ensuring compliance with your local energy provider's regulations.
Q: Does it have oversizing capability?
A: Despite its compact size, this inverter offers 130% DC oversizing and 110% AC output overloading, ensuring full load output even in challenging conditions.
Q: How early does the inverter start generating power?
A: The 40 V start-up voltage enables the inverter to kick in earlier during the day, maximizing your power generation.
Upgrade your solar power system with the GoodWe GW2000-XS-11 Grid-Tied PV Inverter. Experience exceptional efficiency, smart energy management, and seamless integration into your home. Make the smart choice for a brighter and more sustainable future—choose GoodWe today!
(GW2000-XS-11)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Input | |
Max. Input Power (W)*2 | 2900 |
Max. Input Voltage (V) | 500 |
MPPT Operating Voltage Range (V) | 50 - 450 |
Start-up Voltage (V) | 50 |
Nominal Input Voltage (V) | 360 |
Max. Input Current per MPPT (A) | 15 |
Max. Short Circuit Current per MPPT (A) | 18.75 |
Number of MPP Trackers | 1 |
Number of Strings per MPPT | 1 |
Output | |
Nominal Output Power (W) | 2000 |
Nominal Output Apparent Power (VA) | 2000 |
Max. AC Active Power (W)*1 | 2200 |
Max. AC Apparent Power (VA)*1 | 2200 |
Nominal Output Voltage (V) | 230 |
Output Voltage Range (V) | 154 ~ 288 |
Nominal AC Grid Frequency (Hz) | 50 / 60 |
AC Grid Frequency Range (Hz) | 45 ~ 55 / 57 ~ 63 |
Max. Output Current (A) | 9.6 |
Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
Max. Total Harmonic Distortion | <3% |
Efficiency | |
Max efficiency / European | 97.5% / 97.0% |
Protection | |
PV Insulation Resistance Detection | Integrated |
Residual Current Monitoring | Integrated |
Anti-islanding Protection | Integrated |
AC Overcurrent Protection | Integrated |
AC Short Circuit Protection | Integrated |
AC Overvoltage Protection | Integrated |
DC Switch | Integrated |
DC Surge Protection | Type III (Type II Optional) |
AC Surge Protection | Type III |
AFCI | Optional |
General Data | |
Operating Temperature Range (°C) | -25 ~ +60 |
Relative Humidity | 0 ~ 100% |
Max. Operating Altitude (m) | 3000 |
Cooling Method | Natural Convection |
User Interface | LED, LCD, WLAN + APP |
Communication | WiFi or LAN or RS485 (Optional) |
Weight (kg) | 5.8 |
Dimension (W × H × D mm) | 295 × 230 × 113 |
Noise Emission (dB) | <25 |
Topology | Non-isolated |
Self-consumption at Night (W) | <1 |
Ingress Protection Rating | IP65 |
DC Connector | MC4 (2.5 ~ 4mm²) |
AC Connector | Plug and play connector |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | GoodWe |
SKU | GW2000-XS-11 |
Shipping Weight | 7.8000kg |
Shipping Width | 0.345m |
Shipping Height | 0.280m |
Shipping Length | 0.163m |
Shipping Cubic | 0.015745800m3 |
TYPE | VALUE |
---|---|
Type | PV Inverter |
Brand | GoodWe |
Colour | White |
