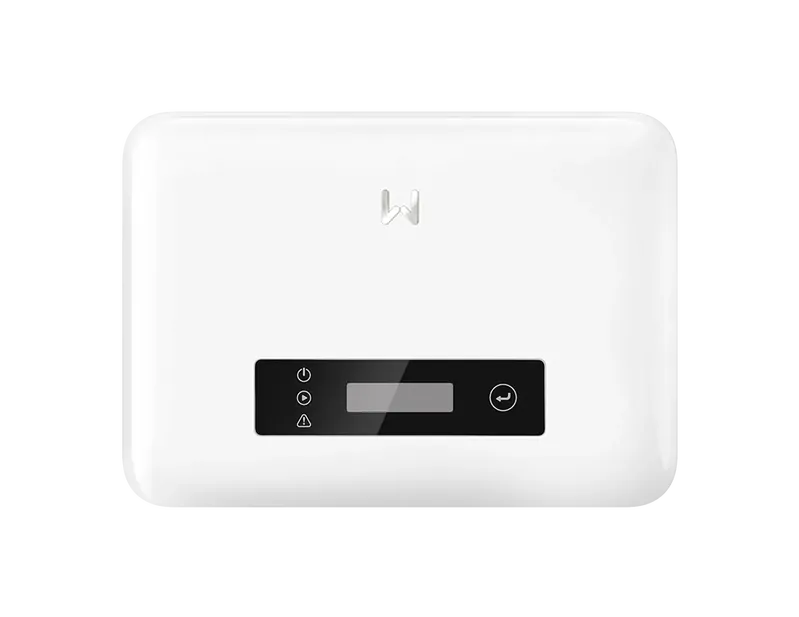

If you're after a small but mighty solar inverter, the GoodWe GW2000-XS-30 is worth a look. This little unit is super compact and lightweight, weighing just 4.6 kg; about the size of an A4 sheet of paper. That makes installation a breeze, especially if you’re working with limited space. But don’t let its size fool you; this thing packs a punch with 200% DC input oversizing and 97.6% efficiency, meaning it squeezes out every bit of energy from your panels.
It’s also whisper-quiet thanks to its fanless design; running at under 20dB, so you won’t even notice it’s there. And if you’re worried about the elements, no stress; it has an IP66 rating, making it okay for outdoor setups. On the tech side, it’s smart-home ready, with 24/7 load consumption tracking and an export power limit function, so you can keep an eye on your energy use in real time.
Q: How efficient is this inverter?
A: It runs at up to 97.6% efficiency, meaning you get the most out of your solar setup.
Q: Can I track my energy use with this?
A: Yep! It has real-time load monitoring and an export power limit feature for smart control.
Q: Is it okay for outdoor installation?
A: Absolutely. With an IP66 rating, it’s built to handle dust, rain, and whatever else the weather throws at it.
(GW2000-XS-30)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Model | GW2000-XS-30 |
Max. Input Voltage (V) | 600 |
MPPT Operating Voltage Range (V) | 40 ~ 450 |
Start-up Voltage (V) | 50 |
Nominal Input Voltage (V) | 360 |
Max. Input Current per MPPT (A) | 16 |
Max. Short Circuit Current per MPPT (A) | 25 |
Number of MPP Trackers | 1 |
Number of Strings per MPPT | 1 |
Nominal Output Power (W) | 2000 |
Nominal Output Apparent Power (VA) | 2000 |
Max. AC Active Power (W) | 2000 |
Max. AC Apparent Power (VA) | 2000 |
Nominal Output Voltage (V) | 220 / 230 / 240, L / N / PE |
Output Voltage Range (V) | 154 ~ 288 (according to local standard) |
Nominal AC Grid Frequency (Hz) | 50 / 60 |
AC Grid Frequency Range (Hz) | 45 ~ 55 / 57 ~ 63 |
Max. Output Current (A) | 9.1 |
Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
Max. Total Harmonic Distortion | <3% |
Max. Efficiency | 97.6% |
European Efficiency | 96.8% |
Operating Temperature Range (°C) | -25 ~ +60 |
Relative Humidity | 0 ~ 100% |
Max. Operating Altitude (m) | 4000 |
Cooling Method | Natural Convection |
Weight (kg) | 4.6 |
Dimensions (W × H × D mm) | 306 × 218 × 119 |
Noise Emission (dB) | <20 |
Ingress Protection Rating | IP66 |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | GoodWe |
SKU | GW2000-XS-30 |
Package Weight | 4.600kg |
TYPE | VALUE |
---|---|
Type | PV Inverter |
Brand | GoodWe |
Colour | White |
