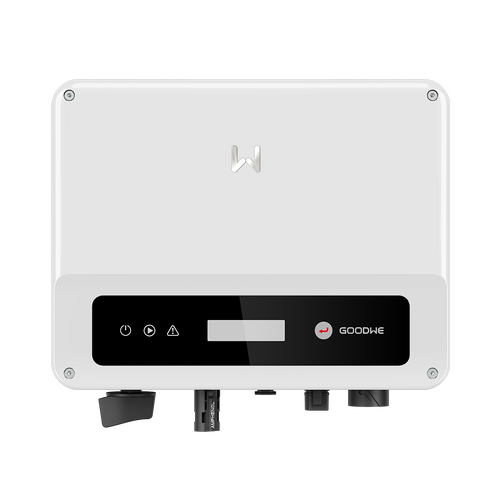

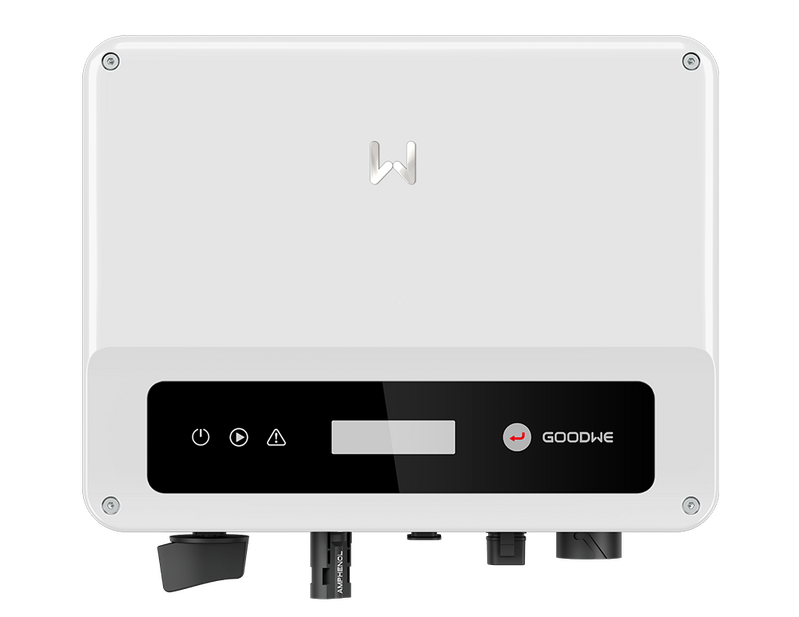

The GoodWe GW2500-XS-11 is an ultra-small, lightweight residential solar inverter designed to provide high efficiency and quiet operation for households. Weighing under 6kg and with a fascia size equivalent to an A4 sheet, this inverter is compact yet powerful. It offers 130% DC input oversizing and can achieve a maximum efficiency of 97.6%, ensuring optimal performance even in extreme weather conditions.
The inverter features a 40V start-up voltage, and advanced communication options including LAN and Wi-Fi for easy monitoring. The GoodWe XS Plus+ model is not only efficient but also easy to install, making it an ideal choice for modern residential solar systems.
Q: What is the maximum efficiency of this inverter?
A: The maximum efficiency is 97.6%.
Q: How much does the GoodWe GW2500-XS-11 weigh?
A: It weighs just 5.8kg.
Q: What communication options are available?
A: The inverter supports both LAN and Wi-Fi for monitoring.
Q: What is the start-up voltage of the inverter?
A: The start-up voltage is 40V.
(GW2500-XS-11)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
Specification | Details |
---|---|
Max. Input Power (W) | 3250 |
Max. Input Voltage (V) | 600 |
MPPT Operating Voltage Range (V) | 50 ~ 550 |
Start-up Voltage (V) | 50 |
Nominal Input Voltage (V) | 360 |
Max. Input Current per MPPT (A) | 15 |
Max. Short Circuit Current per MPPT (A) | 18.75 |
Number of MPP Trackers | 1 |
Number of Strings per MPPT | 1 |
Nominal Output Power (W) | 2500 |
Nominal Output Apparent Power (VA) | 2500 |
Max. AC Active Power (W) | 2750 |
Max. AC Apparent Power (VA) | 2750 |
Nominal Output Voltage (V) | 220 / 230 |
Output Voltage Range (V) | 154 ~ 288 |
Nominal AC Grid Frequency (Hz) | 50 / 60 |
AC Grid Frequency Range (Hz) | 45 ~ 55 / 57 ~ 63 |
Max. Output Current (A) | 12 |
Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
Max. Total Harmonic Distortion | <3% |
Max. Efficiency | 97.6% |
European Efficiency | 97.2% |
PV Insulation Resistance Detection | Integrated |
Residual Current Monitoring | Integrated |
Anti-islanding Protection | Integrated |
AC Overcurrent Protection | Integrated |
AC Short Circuit Protection | Integrated |
AC Overvoltage Protection | Integrated |
DC Switch | Integrated |
DC Surge Protection | Type III (Type II Optional) |
AC Surge Protection | Type III |
AFCI | Optional |
Operating Temperature Range (°C) | -25 ~ +60 |
Relative Humidity | 0 ~ 100% |
Max. Operating Altitude (m) | 3000 |
Cooling Method | Natural Convection |
User Interface | LED, LCD, WLAN + APP |
Communication | WiFi or LAN or RS485 (Optional) |
Weight (kg) | 5.8 |
Dimension (W × H × D mm) | 295 × 230 × 113 |
Noise Emission (dB) | <30 |
Topology | Non-isolated |
Self-consumption at Night (W) | <1 |
Ingress Protection Rating | IP65 |
DC Connector | MC4 (2.5 ~ 4mm²) |
AC Connector | Plug and play connector |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | GoodWe |
SKU | GW2500-XS-11 |
Shipping Weight | 7.8000kg |
Shipping Width | 0.345m |
Shipping Height | 0.280m |
Shipping Length | 0.163m |
Shipping Cubic | 0.015745800m3 |
TYPE | VALUE |
---|---|
Type | PV Inverter |
Brand | GoodWe |
Colour | White |
Max Input Voltage | 600V |
Max Input Current | 15A |
Number of MPP Trackers/Number of Strings per MPPT | 1/1 |
Nominal Output Voltage | 220/230V |
