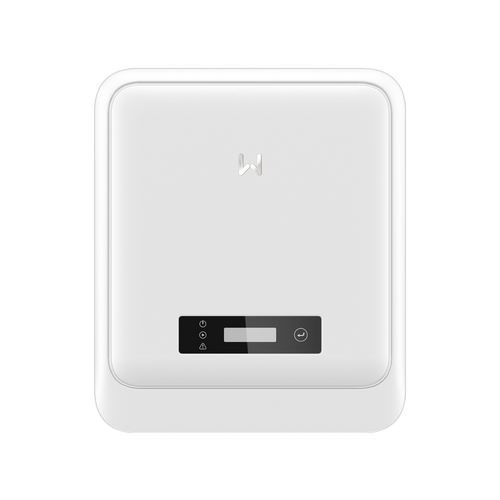

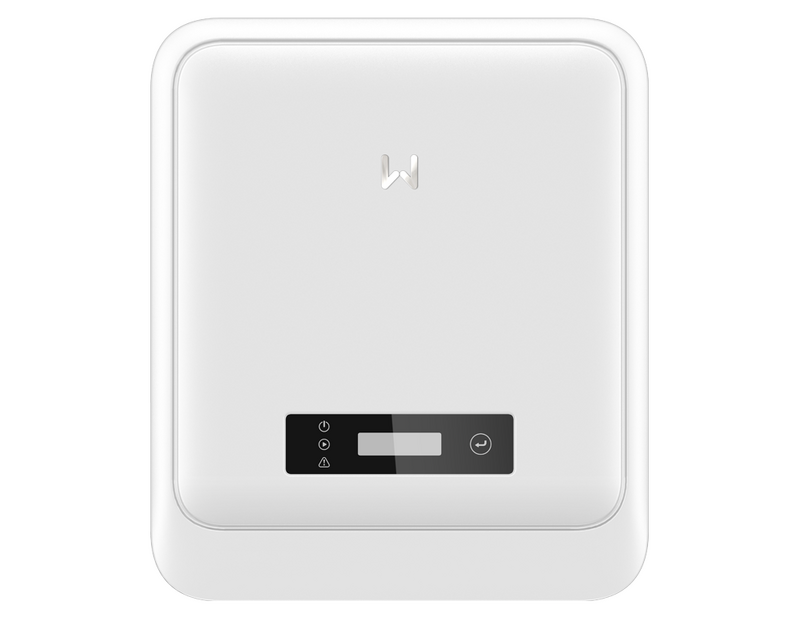

        GOODWE GW5000-DNS-30 | 5kW Dual-MPPT Grid-Tied PV Inverter

        Description:

        Are you ready to revolutionize your home's energy production and savings? The GoodWe GW5000-DNS-30 is here to supercharge your solar experience. Designed for residential applications, this dual-MPPT grid-tied PV inverter is packed with features that make it an ideal choice for homeowners like you.

        Key Benefits:

        • Optimized Power Generation: The DNS G3 series inverter is designed to maximize your power generation. With high-current input and DC input oversizing capabilities, you'll enjoy substantial returns on your investment. It's compatible with high-power modules and allows a maximum of 16 A input current per string.

        • Exceptional Efficiency: Achieve a remarkable maximum efficiency of 97.9%. No more wasted energy – every ray of sunshine will be converted into usable power for your home.

        • Safety First: Your peace of mind is our priority. The DNS G3 inverter comes with an optional Arc Fault Current Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both sides. These features protect your system from electrical fires and lightning hazards, ensuring your safety in extreme conditions.

        • Quiet Operation: Experience a super quiet operation with noise levels below 25 dB. Enjoy a reliable power supply without any unwanted background noise.

        • Smart Control & Monitoring: Stay in control of your energy management with 24/7 load consumption monitoring. Access transparent data to quantify your system's performance. The DNS G3 supports dry contact connection and multiple communication protocols, including Modbus RTU and Sunspec, for incredible communication flexibility.

        • Thoughtful Design: The DNS G3 inverter features an IP66 ingress protection rating, keeping it safe in various environmental conditions. Plus, its fanless cooling design contributes to the low noise level.

        FAQ:

        Q: How efficient is the GW5000-DNS-30 inverter?
        A: The inverter boasts a maximum efficiency of 97.9%, ensuring that you get the most out of your solar panels.

        Q: Is this inverter safe for extreme conditions?
        A: Absolutely. It comes with an optional Arc Fault Current Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both sides to protect your system from electrical fires and lightning hazards.

        Q: Can I monitor my energy consumption with this inverter?
        A: Yes, the DNS G3 series supports 24/7 load consumption monitoring, allowing you to stay informed about your energy usage.

        Q: How quiet is the operation of this inverter?
        A: Enjoy super quiet operation with noise levels below 25dB, ensuring a peaceful environment in your home.

        Q: Is it compatible with high-power solar modules?
        A: Yes, it's designed to be compatible with high-power modules and allows a maximum of 16 A input current per string.

        Q: Does it have a thoughtful design for various environmental conditions?
        A: Absolutely. With an IP66 ingress protection rating and a fanless cooling design, it's built to thrive in different conditions.

        Upgrade your home's solar power system with the GoodWe GW5000-DNS-30 Dual-MPPT Grid-Tied PV Inverter. Experience optimized power generation, exceptional efficiency, and safety features that bring peace of mind. Join the solar revolution and start saving on your energy bills today!

        (GW5000-DNS-30)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features
        Input
        Max. Input Voltage (V) 600
        MPPT Operating Voltage Range (V) 40 - 560
        Start-up Voltage (V) 50
        Nominal Input Voltage (V) 360
        Max. Input Current per MPPT (A) 16
        Max. Short Circuit Current per MPPT (A) 23
        Number of MPP Trackers 2
        Number of Strings per MPPT 1
        Output
        Nominal Output Power (W) 5000
        Nominal Output Apparent Power (VA) 5000
        Max. AC Active Power (W)*1 5500
        Max. AC Apparent Power (VA)*1 5500
        Nominal Output Voltage (V) 220/230/240
        Output Voltage Range (V) 196 ~ 311
        Nominal AC Grid Frequency (Hz) 50 / 60
        AC Grid Frequency Range (Hz) 45 ~ 55 / 55 ~ 65
        Max. Output Current (A) 24.0
        Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
        Max. Total Harmonic Distortion <3%
        Efficiency
        Max efficiency / European 97.9% / 97.3%
        Protection
        PV String Current Monitoring Integrated
        PV Insulation Resistance Detection Integrated
        Residual Current Monitoring Integrated
        PV Reverse Polarity Protection Integrated
        Anti-islanding Protection Integrated
        AC Overcurrent Protection Integrated
        AC Short Circuit Protection Integrated
        AC Overvoltage Protection Integrated
        DC Switch Integrated
        DC Surge Protection Type III (Type II Optional)
        AC Surge Protection Type III (Type II Optional)
        AFCI Optional
        Emergency Power Off Optional
        Remote Shutdown Optional
        Power Supply at Night Optional
        General Data
        Operating Temperature Range (°C) -25 ~ +60
        Relative Humidity 0 ~ 100%
        Max. Operating Altitude (m) 4000
        Cooling Method Natural Convection
        User Interface LED, LCD (Optional), WLAN + APP
        Communication WiFi, RS485 or LAN or 4G or DI (Ripple Control or DRM) (Optional)
        Communication Protocols Modbus-RTU (SunSpec Compliant)
        Weight (kg) 12.8
        Dimension (W × H × D mm) 350 × 410 × 143
        Noise Emission (dB) <25
        Topology Non-isolated
        Self-consumption at Night (W) <1
        Ingress Protection Rating IP66
        DC Connector MC4 (4 ~ 6mm²)
        AC Connector Plug and play connector (Max. 6mm²
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand GoodWe
        SKU GW5000-DNS-30
        Package Weight 16.300kg
        Package Width 0.470m
        Package Height 0.250m
        Package Length 0.530m
        TYPE VALUE
        Type PV Inverter
        Brand GoodWe
        Colour White
