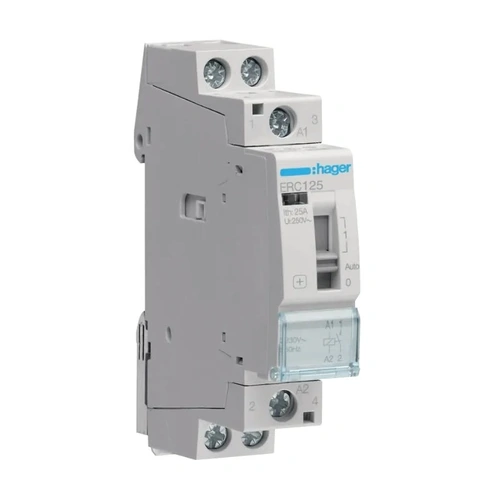

The Hager ERC125 is a compact and durable override contactor designed for efficient operation in residential, commercial, and industrial electrical systems. Featuring a 1NO (normally open) contact, it is rated for 25A and operates at a command voltage of 230V AC, 50Hz. Its compact form factor requires only 1 DIN module, making it an excellent choice for installations where space is limited.
Engineered for longevity, the ERC125 delivers up to 100,000 mechanical operations and 30,000 electrical cycles. Its robust construction, along with a rated impulse withstand voltage of 4000V, ensures reliable performance and safety. The wide operating temperature range of -10°C to 50°C further enhances its versatility, accommodating various environmental conditions.
Q: What is the rated current for the Hager ERC125?
A: The contactor is rated for 25A.
Q: How much space does it occupy in a distribution board?
A: It requires only 1 DIN module, making it highly space-efficient.
Q: What is the operational endurance of the ERC125?
A: It supports up to 100,000 mechanical operations and 30,000 electrical cycles.
Q: What types of conductors can it accommodate?
A: It supports flexible conductors from 1-6mm² and rigid conductors from 1-10mm².
(ERC125)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Model | ERC125 |
| Contact Type | 1NO (Normally Open) |
| Rated Current | 25 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Rated Impulse Withstand Voltage (Uimp) | 4000 V |
| Command Voltage (AC) | 230 V~ |
| Frequency | 50 Hz |
| Cross-Section Flexible Conductor | 1 - 6 mm² |
| Cross-Section Rigid Conductor | 1 - 10 mm² |
| Tightening Torque | 1.20 Nm |
| Operating Temperature | -10°C to 50°C |
| Dimensions (H x W x D) | 83mm x 17.85mm x 60mm |
| Power Loss Under IN | 2.5 W |
| Number of Mechanical Operations | 100,000 |
| Electric Endurance (Cycles) | 30,000 |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Hager Electrical |
| SKU | ERC125 |
| Barcode # | 3250612400560 |
| TYPE | VALUE |
|---|---|
| Type | Contactor |
| Brand | Hager Electrical |
| Rated Current (A) | 25 |
| Height (mm) | 83 |
| Width (mm) | 17.5 |
| Depth (mm) | 60 |
| Mounting | Din Rail |
| Voltage (V) | 230 |
| Contact Configuration | 1 x N/O |
| Number of Modules | 1 |
